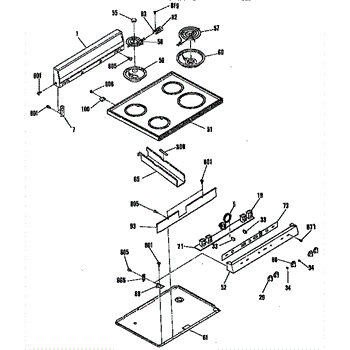

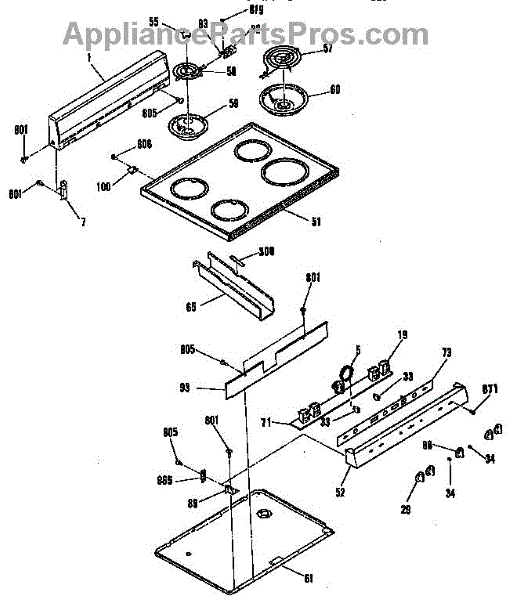

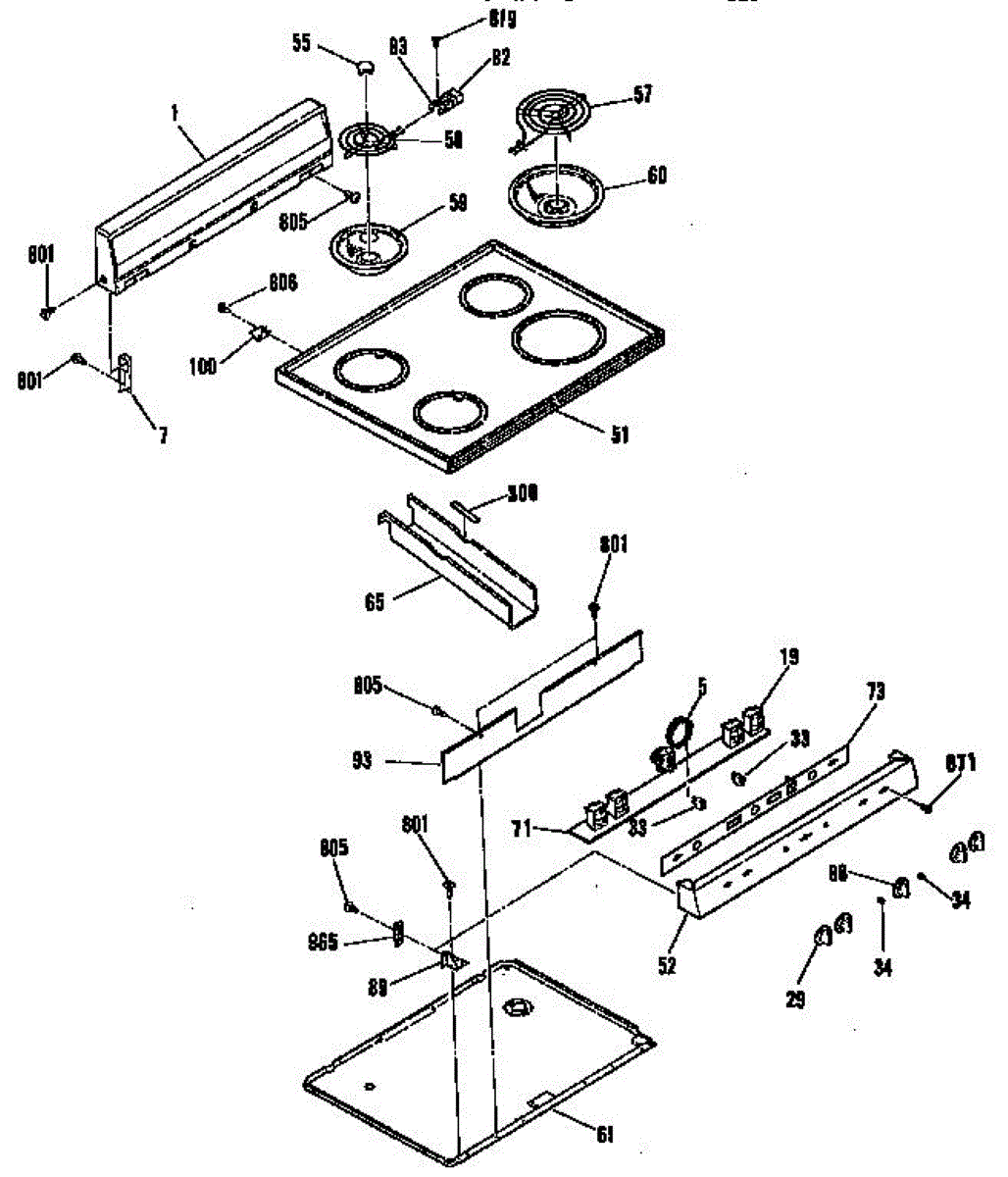

Parts for Kenmore 911.6204190 (9116204190, 911 6204190): Backguard And Main Top Section Parts

Fix your range when oven temperature is incorrect or won't heat properly. This thermostat regulates oven heat. Common repair for uneven baking.

6" element switch

Burner won't stay at set temperature or jumps to high? The infinite switch controls power to heating elements. Easy DIY repair, takes under 30 minutes.

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your range's small burner. Simple plug-in install.

If your burner won't heat or has stopped working, this 8-inch surface heating element restores cooktop function. Easy plug-in installation in minutes.

Chrome drip bowl that sits under your range's 6-inch surface burner. Replaces cracked, warped, or discolored pans. Measures 8 inches across at top rim.

This 8-inch chrome drip pan sits directly beneath a large surface burner on an electric range, catching spills and food drips before they reach the stovetop cavity below. It reflects heat upward toward your cookware, improving cooking efficiency. Replace it when your existing pan is warped, heavily stained, or so corroded that it can no longer be cleaned.

Burner not heating or making poor contact? A damaged terminal block disrupts power to heating elements. DIY-friendly repair, takes about 10 minutes.

Fix loose or wobbly burner connections with this terminal block mounting bracket. Secures the element receptacle so coils plug in firmly and heat properly.

Spacer for cooktop installation. Replaces worn, cracked, or missing spacers that maintain proper clearance between components during mounting.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Nickel

This user manual provides operating instructions, safety guidelines, and basic troubleshooting to help you use and maintain your appliance. Clear, manufacturer-written guidance reduces misuse and helps identify issues before repairs are needed. What it does:

• Explains controls, settings and normal operation in plain language
• Lists safety warnings and recommended maintenance to prevent damage
• Offers basic troubleshooting steps for common symptoms and error codes
• Describes care and cleaning to help extend appliance life

• Read the safety and operating sections before using the appliance
• Keep manual near the appliance for quick reference and future owners
• Disconnect power or gas supply before attempting any repairs
