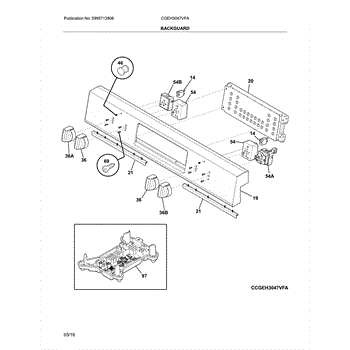

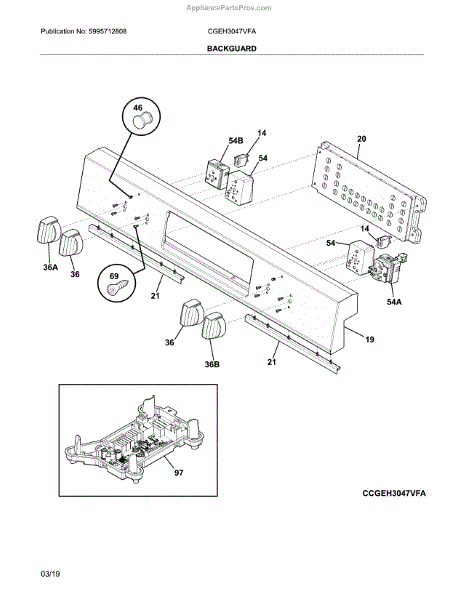

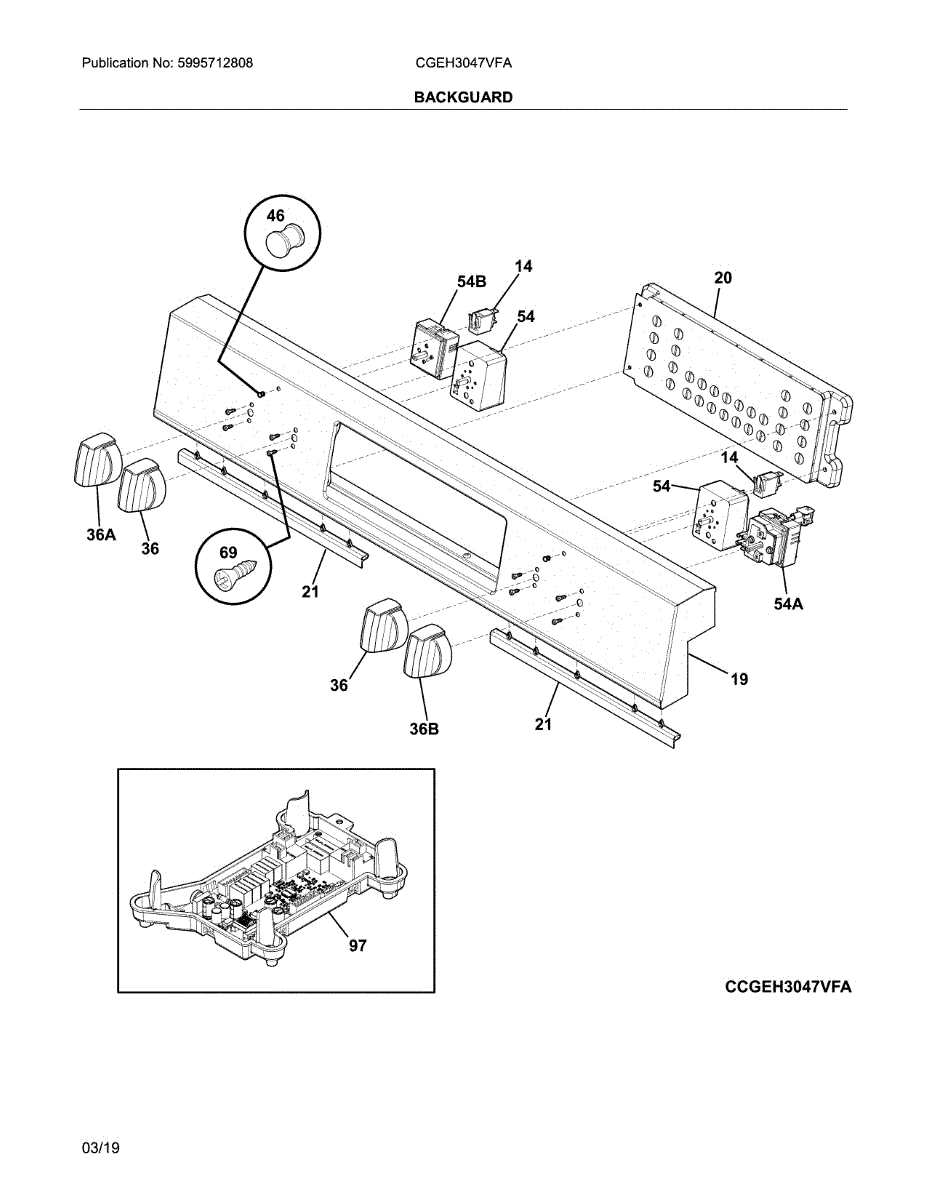

Parts for Frigidaire CGEH3047VFA: Backguard Parts

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Control Panel is an OEM part for Frigidaire ranges. It houses the control buttons and display for your range, allowing you to select and adjust settings.

A bad control panel and overlay can be caused by electrical issues, physical damage, or component failure. Signs of a faulty control panel include unresponsive buttons, flickering display, or the inability to accurately select or modify settings.

Symptoms of a bad control panel and overlay can include:

• Unresponsive buttons
• A flickering or malfunctioning display
• Inability to choose or modify settings

Replace your faulty control panel and overlay with this genuine OEM part to restore your range. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Oven Control Board is an OEM component specifically designed for Frigidaire ranges. This board is the central processing and control unit that regulates all oven functions such as temperature, bake, broil, convection, and self-clean modes. It receives input signals from door switches, temperature sensors, knobs, and buttons to coordinate the operation of heating elements, fans, and other components.

Causes of a bad control board can include impacts, shorts or corrosion due to moisture, and failure of electronic components over time.

Symptoms of a bad control board include:

• Inability to operate oven functions
• Display/control panel not illuminating or responding
• Oven not reaching set temperature
• Intermittent or unreliable operation

This OEM Frigidaire replacement part is also compatible with brands like Electrolux, Gibson, and some Kenmore models

The Seal is an OEM part for Frigidaire ranges. It creates an airtight seal between the oven and cooktop surfaces to contain heat and contain spills. Located around the edges of the oven cavity and cooktop surfaces, the pliable and flexible seal conforms precisely to fit the contours and gaps.

Symptoms of a bad Range Seal include:

• Excess heat escaping from oven cavity around edges
• Discolored or melted seal from continuous heat exposure
• Gaps allowing spills to leak underneath surfaces
• Increased energy costs from heat loss

This replacement is also compatible with some Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement control knob restores easy, accurate control of a range or oven control shaft so you can select heat settings confidently. Durable, easy-to-install design replaces a cracked, loose, or missing knob. What it does:

• Provides positive grip and clear detents for reliable temperature or function selection
• Replaces a cracked, stripped, or missing control knob that won't turn or slips on the shaft
• Engages the control shaft spline to change burners, oven functions, or temperature settings
• Helps restore safe, predictable control of the appliance interface

• One control knob

• Turn controls off and disconnect power to the appliance before installing
• Remove the old knob by pulling straight off the control shaft; align splines and push new knob fully onto the shaft
• If knob is tight, seat it straight and avoid forcing at an angle to prevent damage

Color: Stainless Steel

The Knob is an OEM part for Frigidaire ranges. It attaches to the control shaft below the cooktop surface and allows for easy adjustment of temperatures via its rotating mechanism. Proper operation depends on a fully functional and securely attached knob.

Causes of a bad knob are generally normal wear and tear over time through repeated use and exposure to cooking temperatures and debris. Grease or food buildup can also cause issues.

Symptoms of a bad knob include:

• Inability to select temperature settings
• Temporary temperature displays/fluctuations
• Ignition or burner issues due to loose or detached knob

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Indicator Light Lens is an OEM part for Frigidaire ranges. This component covers and protects the indicator light, which signals when a burner or the oven is on, providing a visual cue for users to ensure safe operation.

Over time, the indicator light lens can become damaged or discolored due to heat exposure, regular cleaning, or accidental impacts. Causes of a bad indicator light lens include cracking, warping, or clouding that obscures the light.

Symptoms of a bad indicator light lens include:

• The indicator light not being clearly visible
• Cracks or breaks in the lens
• Discoloration or cloudiness that diminishes the brightness of the light
• The lens becoming loose or falling off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement switch completes the control circuit for a major appliance function, restoring user control and reliable operation. It mounts in the control panel and provides a durable rotary/infinite control interface. What it does:

• Makes or breaks the electrical connection for the corresponding control function
• Restores accurate control when the original switch is worn, intermittent, or unresponsive
• Can cause the related function to not start, stop unexpectedly, or fail to adjust when it fails
• Used in control panels where a rotary/infinite-type switch is required

• One replacement switch

• Disconnect power to the appliance before beginning any repair
• Verify correct switch orientation and secure mounting before reconnecting wiring
• Handle and route wires carefully; match terminal connections exactly to avoid damage

 The Dual Element Surface Switch is an OEM part for Frigidaire electric ranges and cooktops. It governs power distribution to the dual element.

Causes may be loose electrical terminals within the switch, defects from past power surges, or general wear over extended use.

Symptoms of a bad surface switch include:

• Inability to toggle one or both elements independently
• Elements activating intermittently or staying stuck on
• Overheating, sparks or strange sounds from faulty connections
• Repeated burning or singeing of cookware bottoms

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Small Surface Element Switch is an OEM replacement part for Frigidaire electric ranges. It serves as the control knob and circuitry to safely power one of the smaller cooking elements.

Symptoms of a bad surface element switch include:

• Inability to ignite or regulate heating for its assigned zone
• Switch knob that feels loose, won't click smoothly, or won't stay set
• Intermittent or unreliable power to the smaller element coils
• Tripped circuit breakers upon use that don't reset

Causes relate to thousands of rotations wearing micro-switches and wiring terminals within the control assembly. Regular cleaning around knobs can prevent accelerated deterioration from baked-on debris conducting excess heat.

This genuine OEM replacement part is compatible with other brands including Electrolux and Kenmore as well.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

The Relay Board is an OEM part for Frigidaire ranges. It is an electronic component that controls the operation of various range functions and components by directing electrical currents through a network of relays.

Causes of a bad relay board include failure of electronic components over time due to continuous use, component fatigue, water damage, or surges/spikes in electrical current.

Symptoms of a bad range relay board include:

• Inoperable or unreliable oven/range functions such as bake, broil, warm, etc.
• Issues with cooktop burner ignition or flame level control
• Inconsistent or inaccurate temperature readings
• Error codes or diagnostic trouble codes appearing

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
