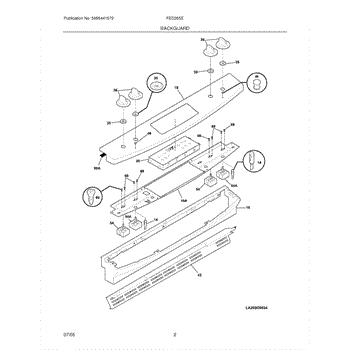

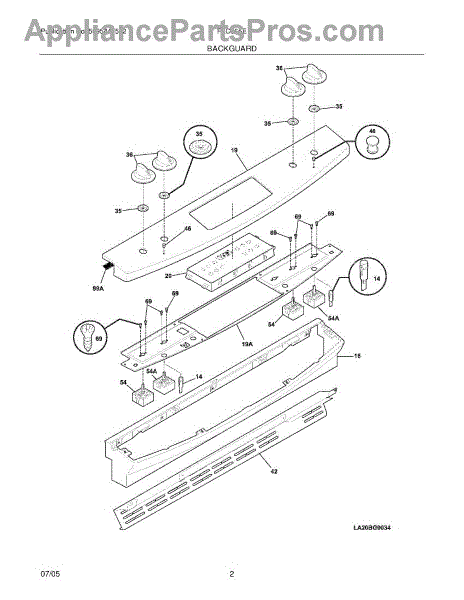

Parts for Frigidaire FED355EBA: 03 - Backguard Parts

This touchpad and control panel assembly replaces the user interface that lets you set oven functions, temperature and timers. Restores button responsiveness and the visible control surface so the range responds correctly to inputs. What it does:

• Provides the front user controls and membrane touchpad for selecting bake, broil, timers and other functions
• Sends user commands to the range's control board so cycles start and settings change
• Commonly replaces panels with unresponsive or stuck buttons, missing legends, or intermittent input
• Resolves control-related problems when the display or buttons do not register presses

• Disconnect power to the appliance before servicing to avoid shock or damage
• Typical installation requires removing the oven door or control housing; handle the glass and trim gently
• Avoid touching circuit traces and connector pins; ensure connectors are fully seated
• After installation, reconnect power and test all functions before reassembling trim panels

This clock timer is the control that displays the time and runs timed-cooking features. On models that use it as the main oven control, it also coordinates bake and broil. Replacing a failed unit restores reliable operation. What it does:

• Displays time-of-day and manages kitchen timer, delayed start, and cook duration functions
• On applicable models, controls oven heating by signaling bake/broil circuits to start and stop
• Common symptoms of failure: blank or dim display, inability to set clock/timer, oven won't start or shuts off unexpectedly

• 1 clock/timer control assembly

• Disconnect power at the breaker before servicing
• Access the control behind the console/control panel; label or photograph all wire connections
• Handle the board carefully to avoid static discharge and damage to terminals
• Transfer existing mounting brackets and any faceplate/overlay if your model uses them; secure and test operation before final reassembly

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch is an OEM part for Frigidaire ovens. This component is responsible for controlling the flow of electricity to various functions of the oven, such as the bake and broil elements, ensuring the oven operates correctly according to the selected settings.

Causes of a bad switch can include wear and tear from frequent use, electrical surges, or physical damage from impact or exposure to moisture.

Symptoms of a bad switch include:

• The oven not turning on or responding to control inputs
• Inconsistent heating or temperature control issues
• Certain oven functions not working, such as the bake or broil elements
• The switch feeling loose or sticking when turned

This OEM replacement is also compatible with Electrolux, Gibson, Tappan, Kelvinator, and Kenmore models.

The Surface Burner Infinite Switch is an OEM part for Frigidaire ranges. This switch is responsible for controlling the heat output of the surface burners on your range. By adjusting the infinite switch, you can set the burner to different heat levels, allowing for precise cooking control.

Common causes of a bad infinite switch include electrical failures, internal component wear, or physical damage to the switch mechanism.

Symptoms of a bad surface burner infinite switch include:

• Burner not heating up
• Burner only working at one heat level
• Burner not turning off
• Inconsistent or fluctuating heat levels

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

The Range Overlay is an OEM part compatible with Frigidaire ranges. The overlay covers the control board and labels the button on the board.

Causes of a bad overlay can be normal wear over time with heavy use of the range, exposure to heat and impacts, or warping from temperature fluctuations around the cooking elements.

Symptoms of a faulty overlay include:

• Cracks or breaks appearing in the material
• Loose, sagging, or misaligned fitment on the front of the range
• Gaps that compromise the seal around cooking surfaces
• Discoloration or other appearance issues affecting the look

It is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore range models.
