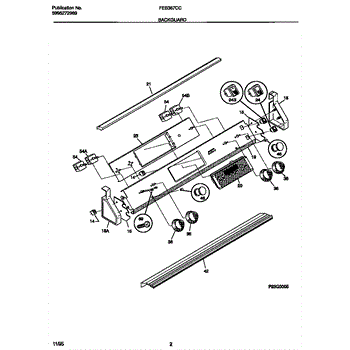

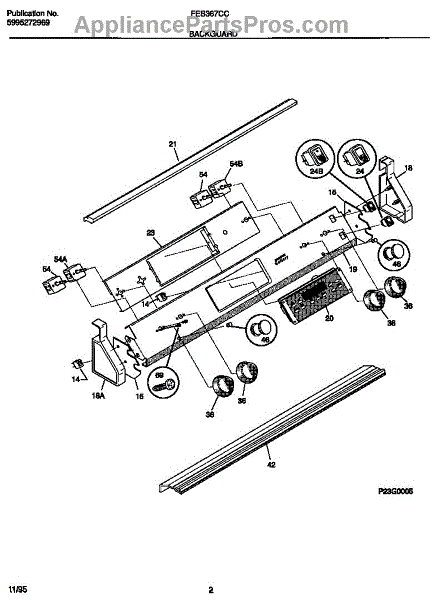

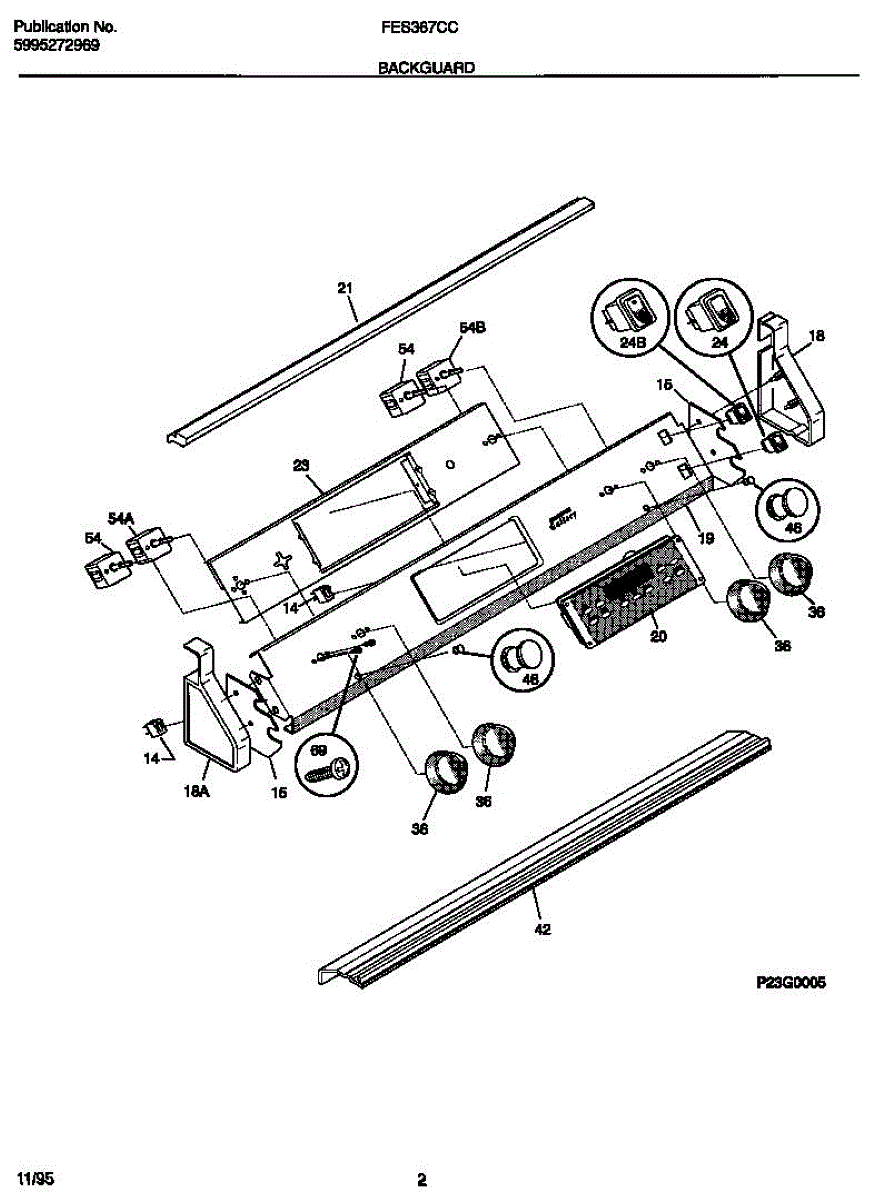

Parts for Frigidaire FES367CCS1: 02 - Backguard Parts

Color: White

This is a Frigidaire oven clock and timer. Not only does this component provide the current time, but it also acts as a general countdown timer. It also acts as an on/off toggle source, sending a signal to the control board to turn the range off once the cook timer has reached zero.When the clock and timer have gone bad, multiple things can take place. The screen may cease to work or may flash on and off. An early sign of this is dimming the backlight, making it hard to see the display. There could also potentially be a short in the relay, in which case the screen would continue to work. When the relay fails, the oven will stay powered even after the cooking timer has reached zero. This could lead to potentially dangerous situations.Replacing the oven clock and timer should only be done after unplugging the range from the outlet. On the back of the stove, remove the mounting screws that fasten the control board. Directly underneath the board are screws that can be accessed from inside the oven. Remove these screws as well, and remove the board. Use a screwdriver to pry the clock and timer out of position. Take a photo of the plug and wiring setup to ensure proper reinstallation later.This part is a genuine OEM product and is sourced directly from the manufacturer and sold individually. This part compatible with Electrolux and Frigidaire appliances.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Unit Switch Kit is an OEM part for Frigidaire ranges. It controls the power and heat levels to the surface burners on the cooktop, allowing you to adjust the temperature for cooking. This kit typically includes the necessary components to replace a faulty switch and restore proper functionality to the burners.

Causes of a bad surface unit switch can include electrical malfunctions, wear and tear from regular use, or damage due to spills or impacts. A faulty switch can prevent the burner from heating correctly or at all.

Symptoms of a bad surface unit switch include:

• Burners not heating up or heating unevenly
• Inability to adjust the burner temperature
• Burners not turning on or off properly
• Sparks or electrical odors near the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
