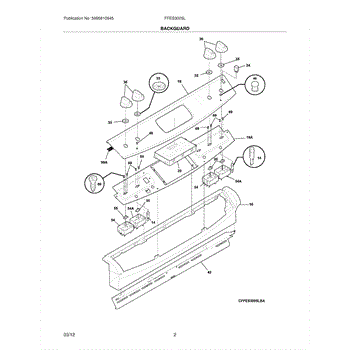

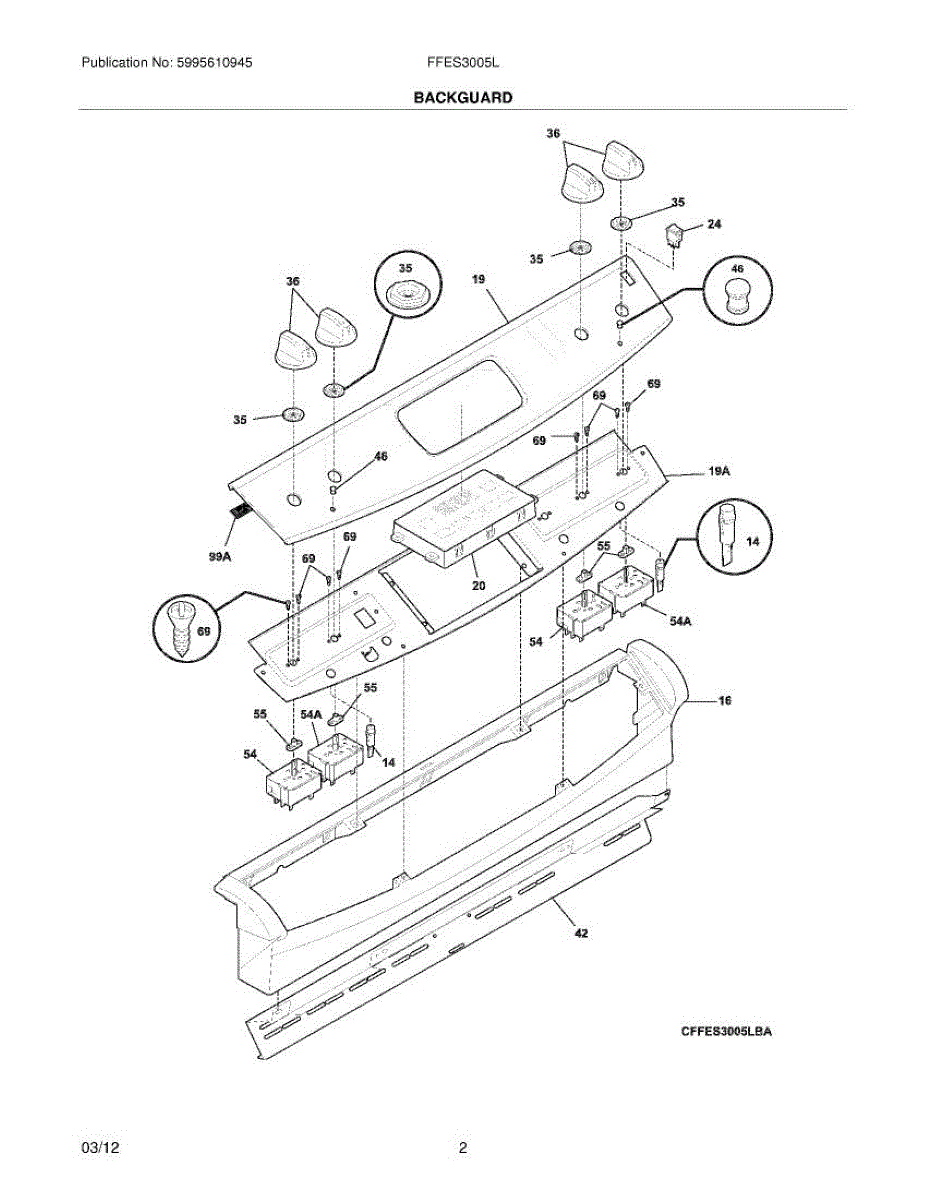

Parts for Frigidaire FFES3005LWE: 03 - Backguard Parts

Designed for use on electric ranges, this is the console assembly that features the controls for the appliance. There are selection buttons as well as the display components for the unit. When the buttons aren't working on this console assembly, it is likely that this part will need to be replaced. Any issues with the digital display will also result in needing to replace the console assembly. Inspect the part to determine if there are any physical signs of failure or damage. Unplug the range from its electrical outlet before beginning. It's always a good idea to wear work gloves when performing care and maintenance on any appliance.This specific console assembly is compatible with electric ranges that are white in color and are manufactured by Frigidaire and Crosley. The part comes straight from the manufacturer and is sold individually.

This clock timer control replaces the oven's built-in timer and clock so cooking functions, timed bake, and display timing work correctly. Restores visible timekeeping and timer-based bake/clean controls for safe, accurate oven operation. What it does:

• Replaces the oven control that displays time and manages timed bake or delayed start functions
• Allows the timer/clock display to light up and accept time-setting inputs
• Restores timed cycle control when the oven won't start or stops mid-cycle due to a faulty timer
• Helps resolve symptoms like unresponsive clock display, non-working minute timer, or inability to set delayed baking

• One clock timer control

• Disconnect power to the appliance at the breaker before beginning any service
• Handle the control module carefully; avoid force when removing or reconnecting wiring harnesses
• Reuse mounting hardware if undamaged; verify connectors are fully seated before restoring power

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement switch restores reliable on/off signaling for a specific circuit in your appliance, helping the intended function operate consistently and safely. It's a direct-fit part used in select cooking appliances where a mechanical/electrical switch is required. What it does:

• Opens and closes an electrical circuit when actuated to control a designated function (such as a light, interlock, or enable signal), per model design
• Helps the control system detect a condition (e.g., a door position) to allow or inhibit operation
• Resolves issues like a light that won't turn on/off, "door open" messages when closed, or functions that start/stop unexpectedly
• Replaces a worn, stuck, or intermittently failing switch that causes inconsistent operation

• One switch

• Disconnect power before servicing; this part carries live voltage during operation
• Access the switch at its mounting location
• Move wires one at a time from the old switch to the new to maintain correct terminal positions; ensure snug, clean connections
• Test function before reassembly to confirm proper actuation and operation

This replacement electrical switch restores dependable control of the selected function in your appliance, allowing you to turn the feature on and off reliably. Use it to replace a worn, unresponsive, or sticking switch for safe, consistent operation.

• Opens and closes the circuit to its assigned component when actuated
• Helps resolve a feature that won't turn on or won't shut off
• Addresses intermittent operation or a switch that feels loose, sticks, or shows heat damage
• Restores normal control response after internal switch failure

• Disconnect power at the breaker before servicing
• Access may require removing the control panel or backguard; take a photo and label wires
• Move one wire at a time from the old switch to the new to maintain correct connections
• Inspect terminals; replace any damaged spade connectors to ensure a secure fit

This bushing is a molded support sleeve that helps align and stabilize a rotating shaft, reducing wear and vibration for quieter, more reliable appliance operation. Designed as a direct-replacement service part. What it does:

• Supports and centers a rotating shaft or drum to prevent metal-on-metal contact
• Reduces vibration and noise caused by a worn bearing interface
• Protects housings and shafts from wear and scoring
• Helps restore proper rotation when the original bushing is worn or damaged

• Disconnect power before starting any repair to avoid shock or injury
• Inspect mating shaft and housing for wear; replace if damaged to prevent premature new-part failure
• Press or seat the bushing straight and fully; use proper tools to avoid distortion

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This wiring harness routes power and signals between the appliance's control and electrical components so controls, igniters, sensors or motors receive the correct connections. It replaces a worn or damaged factory harness to restore proper electrical routing. What it does:

• Provides the factory-style wiring connections between control boards, switches, sensors and actuators
• Restores lost or intermittent electrical connections that can cause controls or components to stop working
• Helps resolve symptoms such as intermittent power to components, no response from controls, or certain functions not activating
• Matches OEM connector types and wire lengths

• One replacement wiring harness

• Disconnect power to the appliance before starting work to avoid shock or injury
• Compare the replacement harness to the original for connector type, pin count and wire routing before installing
• Route and secure the harness away from heat sources and moving parts; use existing clips or ties where provided

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

The Overlay is an OEM part for Frigidaire ranges. This component is the interface layer that sits over the control panel, providing labels and markings for the various buttons and controls. It ensures that users can easily identify and operate the range settings.

You should replace the overlay if it becomes damaged or worn out. Causes of a bad overlay can include exposure to high temperatures, frequent cleaning, or general wear and tear, which can cause the labels to fade or peel off.

Symptoms of a bad overlay include:

• Fading or illegible labels
• Peeling or bubbling of the overlay surface
• Difficulty in reading and using the controls accurately
• Physical damage such as cracks or tears

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
