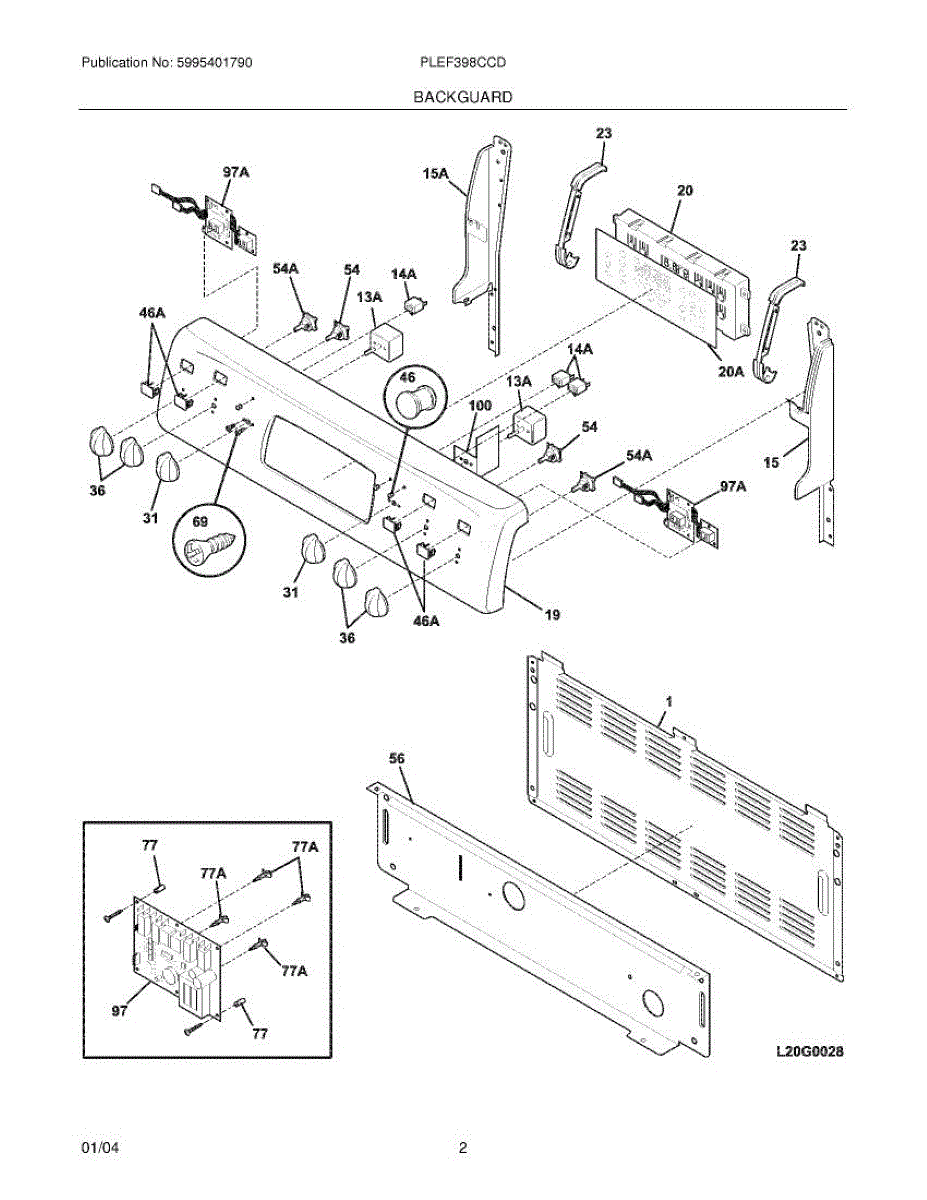

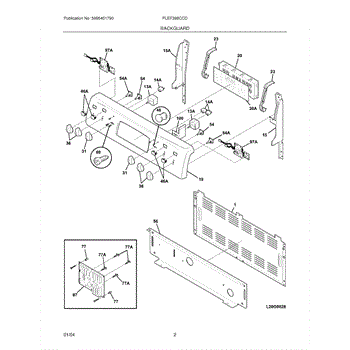

Parts for Frigidaire PLEF398CCD: 03 - Backguard Parts

The Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for controlling the temperature and operation of the warming drawer or zone feature.

Causes of a bad Switch can include electrical malfunctions or short circuits, mechanical wear from repeated use, and exposure to moisture or debris.

Symptoms of a bad Switch include:

• Inability to activate or control the warming drawer or zone
• Erratic temperature fluctuations
• Overheating or failure to heat the warming area

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This stainless steel backguard panel replaces the rear finish panel on a range to restore a clean, finished look and protect the area behind the cooktop. It fits where the original backguard mounted and matches the appliance's stainless finish. What it does:

• Covers and protects the rear cooktop area from spills, grease, and light impact
• Restores the unit's finished appearance when the original panel is scratched, dented, or discolored
• Provides a mounting surface for attached trim or control components
• Helps prevent debris from entering the oven/range cavity from the rear

• One stainless steel backguard panel

• Disconnect power to the appliance before beginning any service
• Remove existing backguard screws or fasteners; keep hardware if undamaged or replace as needed
• Handle edges carefully; use gloves to avoid cuts and protect the finish during installation
• Some installations may require a second person to align and hold the panel while fastening

This board does not include the touch pad overlay sticker. Order separately if needed.

This overlay is the exterior cover for the appliance's control panel, providing the labeled surface and cosmetic finish that users interact with. It restores readable button markings and protects the underlying controls from wear. What it does:

• Replaces faded, scratched, or peeled control-panel graphics so buttons and labels are visible.
• Covers and protects the underlying switch/keypad area from spills and everyday wear.
• Helps resolve user issues caused by missing or unreadable button markings.
• Restores the appliance's finished appearance when the original overlay is damaged.

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Remove any surrounding trim or bezel to access and replace the overlay.
• Handle the overlay carefully to avoid scratching the printed surface; align precisely before seating or adhering.
• If adhesive or clips are used, follow OEM instructions.

A replacement black control knob that restores a readable, grippable interface for appliance controls so you can select settings confidently. Designed as a direct-fit control knob for compatible Frigidaire appliances. What it does:

• Replaces a broken, cracked, missing, or worn control knob to restore tactile control.
• Provides a clear grip and alignment for selecting heat, cycle, or power settings.
• Helps stop slipping or spinning that prevents accurate setting selection.
• Matches the OEM shape and spline pattern for a secure fit when correct shaft is intact.

• Disconnect power to the appliance before servicing to reduce shock risk.
• Most replacements push onto the splined control shaft; align flat sides or spline grooves and press firmly.
• If the knob does not seat, inspect the control shaft and any retained adapter; do not force the part onto a damaged shaft.

This is the LED display lens that covers and protects the appliance console, keeping the display visible and shielding the underlying LEDs from dirt and damage. It restores a clean, readable control panel appearance. What it does

• Protects the LED display and control indicators from dust, spills, and physical damage
• Diffuses and directs LED light for consistent display visibility
• Helps restore a clean, readable control panel when the original lens is scratched, cracked, or discolored
• Prevents debris from reaching the electronic display components

• One LED display lens

• Disconnect power to the appliance before starting any repair
• Typically installs from the console/front panel; may require removing trim or the control console
• Handle carefully to avoid scratching or cracking the lens during installation

The Indicator Light Lens is an OEM part for Frigidaire ranges and cooktops. It is designed to cover and protect the indicator light bulb, which signals when a burner is turned on or if the cooktop is still hot after use. This small component ensures that the light is visible and diffused properly, helping to prevent accidental burns or other safety issues.

Symptoms of a failing Indicator Light Lens include:

• Cracking or damage to the lens that impairs visibility
• Discoloration that makes it hard to tell if the light is on
• The lens becoming loose or falling off
• The light appearing overly bright or unfiltered

Causes of a bad indicator light lens typically involve high heat exposure, which can lead to cracking or warping, or accidental impacts during cleaning or use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This surface element control replaces the damaged or worn control that regulates heat to an electric cooktop burner. Restores reliable power and heat adjustment for a single surface element on compatible ranges. What it does

• Acts as the infinite switch that controls the burner's heat level based on the knob setting.
• Replaces a control that causes a burner to stay off, fail to heat, or not respond to knob changes.
• Helps eliminate intermittent heating, erratic temperature changes, or a burner that won't cycle properly.
• Works with the corresponding burner element and knob to provide stepped heat control.

• Disconnect power to the range at the breaker before starting any repairs.
• Basic hand tools required; remove the cooktop or rear console per your model's service instructions.
• Handle terminals and wiring carefully; match wire locations exactly during reassembly.

This dual infinite switch controls the inner and outer portions of a dual surface element on your range, providing smooth, adjustable heat levels. Replacing a failed switch restores reliable heating and proper temperature regulation for both ring sizes.

• Regulates power to both the small and large sections of a dual burner
• Typical failure symptoms: only one ring heats, no heat, won't switch between sizes, or heat stuck on high/erratic
• Mounts behind the surface knob and governs burner temperature settings
• Restores consistent simmer-to-boil control across all settings

• Disconnect power at the breaker and allow the cooktop to cool completely
• Access the control panel, then photograph or label all wire positions before removal
• Move wires to the new switch one at a time, matching terminal markings
• Reuse the existing knob; reassemble and test both inner and outer element settings

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This switch insulator cushions and isolates the control switch from the appliance chassis, helping prevent shorts and ensuring stable switch mounting for reliable control operation. It's a simple replacement to restore safe electrical separation. What it does:

• Electrically isolates the control switch from metal panels to help prevent short circuits.
• Holds and positions the switch for correct actuator alignment and reliable operation.
• Protects the switch body from wear and vibration.
• Can help address intermittent or unstable switch behavior caused by a damaged or missing insulator.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing the control panel or console—keep track of screws and fasteners.
• Inspect the switch and mounting hardware; replace any damaged clips or screws for secure fit.

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

This control mounting lock secures the washer control or door latch area so the machine runs safely and reliably. It replaces a worn or broken mounting lock to restore proper control-panel or latch stability during cycles. What it does:

• Holds the washer control or latch assembly firmly in place to prevent movement and intermittent connections
• Helps maintain reliable electronic or mechanical engagement during start and spin cycles
• Common symptom: control panel or door area feels loose, intermittently unseated, or causes error codes related to a loose latch/control
• Prevents excess vibration or shifting of the control/latch that can lead to premature wear

• One control mounting lock

• Disconnect power and water before servicing to avoid shock or injury
• Access may require removing the cabinet or control panel; follow for safe disassembly
• Inspect surrounding clips and connectors; replace any damaged fasteners for a secure fit

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
