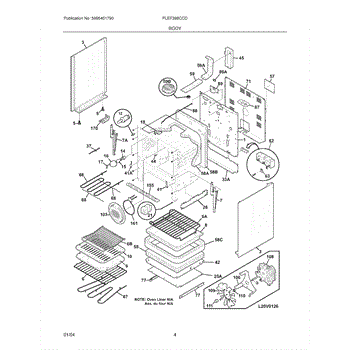

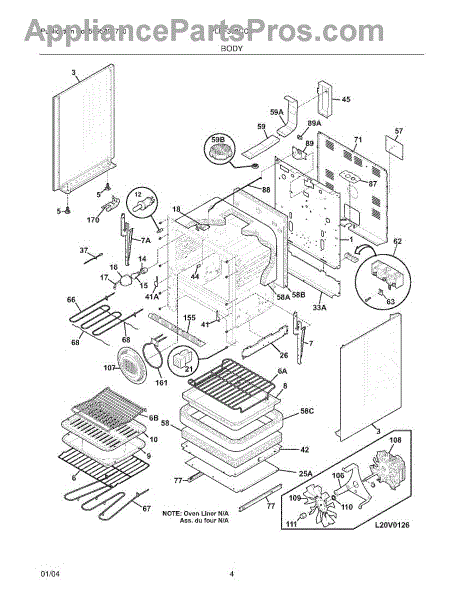

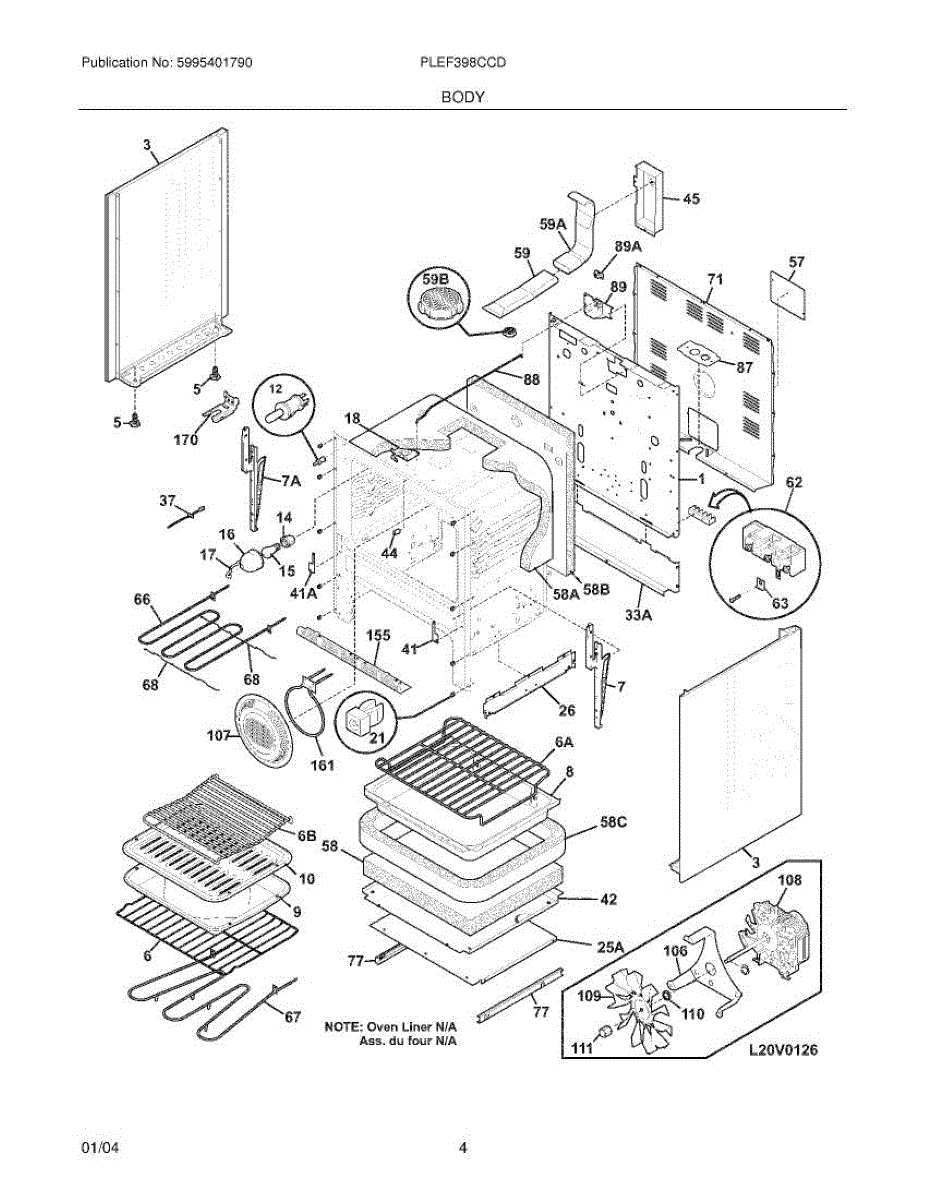

Parts for Frigidaire PLEF398CCD: 05 - Body Parts

Plastic leveling leg.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is the left side door hinge. For right side use 316216500.

This is the right side door hinge. For left side use 316216501.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This oven light lens retainer secures the glass light cover to the oven cavity so the bulb area stays protected during cooking. Replacing a damaged or missing retainer keeps the lens firmly in place and prevents nuisance loosening.

• Holds the glass light lens securely inside the oven cavity
• Helps shield the bulb area from splatters and debris
• Direct replacement for a bent, warped, or missing retainer ring
• Common symptoms: lens won't stay in, cover rattles, or difficulty securing the lens after service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks for easier access to the light cover area
• Support the glass lens while positioning the retainer to avoid drops or chipping
• Secure the retainer per your model's design; do not overtighten

This oven door latch assembly locks the door during self-clean and reports lock status to the control. Restores proper door locking and unlocking so bake and clean cycles can run safely and without interruptions. What it does:

• Secures the oven door during self-clean and when commanded by the control
• Provides locked/unlocked position feedback to the electronic control
• Helps resolve issues such as a door that won't lock or unlock
• Can address self-clean cycles that won't start or complete and lock-related error messages

• 1 latch assembly

• Disconnect power at the breaker and allow the oven to cool completely
• Access varies by model; you may need to pull the unit and remove the rear or top/control panel
• Photograph wire connections and linkage before removal; transfer any mounting hardware from the original
• After installation, test the lock operation before final reassembly

This body-side spacer installs on the cabinet side of the door or lid hardware. It sets the correct stand-off and alignment so the handle or latch feels solid and sits flush for a clean, secure fit. What it does:

• Positions and supports door/lid hardware on the cabinet/body side
• Maintains proper spacing to help prevent rubbing or scuffing of the panel
• Helps keep the handle or latch tight and aligned
• Common symptoms: loose or wobbly handle/latch, uneven alignment, visible gap or scuff marks at the mounting point

• Includes 1 body-side spacer

• Disconnect power to the appliance before servicing
• Support the handle/latch, remove the cabinet-side mounting screws, place the spacer, realign hardware, and reinstall screws snugly
• Reuse the original fasteners; avoid overtightening to prevent cracking the spacer or stripping threads
• Check door operation and alignment before finishing

The Oven Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and regulates the oven's temperature by sending accurate temperature readings to the control board. This ensures that the oven maintains the desired cooking temperature throughout the baking or roasting process.

Causes of a bad oven temperature sensor include exposure to high heat over extended periods, electrical issues, or physical damage to the sensor probe.

Symptoms of a bad oven temperature sensor include:

• Incorrect oven temperatures
• Overheating or underheating during use
• Erratic temperature readings
• The oven not reaching the set temperature

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

This ceramic catalyst oven vent fits behind the oven broiler to help vent and break down cooking residues and odors at high temperatures, keeping oven air cleaner during cooking and self-clean cycles. It's a direct-replacement part when the original is cracked, clogged, or missing. What it does:

• Provides a heat-resistant vent surface that helps oxidize grease and odors that pass through the vent during use
• Helps maintain proper oven ventilation for consistent cooking and cleaner internal airflow
• Commonly replaced when the vent is cracked, glazed-over, excessively discolored, or emits persistent odors
• Works as part of the oven's venting system—does not affect electronic controls

• Disconnect power to the appliance before starting any work to avoid shock or injury
• Allow the oven to cool fully; this part is installed inside the oven cavity or broiler area and may require removing racks or access panels
• Handle with care—ceramic components can crack if dropped or flexed; wear gloves to protect hands and avoid fingerprints on ceramic surfaces

This terminal block kit restores a secure, heat-resistant connection point for your appliance's incoming power. Replacing a damaged block helps prevent intermittent power loss and further heat damage from loose or burnt terminals.

• Provides an insulated junction for incoming power leads
• Restores a tight, reliable connection between supply wires and internal wiring
• Helps resolve no power, intermittent power, or visible heat damage at the terminal area
• Replaces cracked, melted, or burned blocks to protect wiring and performance

• Disconnect power at the breaker and verify no voltage is present before servicing
• Label/photograph existing wiring; move one conductor at a time to the new block and tighten terminals securely
• Inspect the cord and wire ends; replace any burnt, brittle, or damaged conductors or lugs before reassembly
• Reinstall covers/strain relief as applicable and verify connections are secure before restoring power

This support plate secures internal components and provides a stable mounting surface to reduce vibration and keep parts aligned. It restores proper fit and helps stop rubbing, rattling, or loose-panel symptoms. What it does

• Provides a flat, stable mounting surface for adjacent components
• Holds parts in correct position to prevent movement and noise
• Helps maintain proper clearances so panels and assemblies fit without rubbing
• Can be replaced if bent, cracked, or missing fasteners that cause vibration or loose parts

• Disconnect power before servicing to avoid shock or injury
• Verify plate orientation and fastener locations before removing old part
• Use existing screws if undamaged; replace damaged fasteners for secure fit
• Handle edges carefully; wear gloves to avoid cuts during install

The Broil Element is an OEM part for Frigidaire ovens. This element provides the intense heat necessary for broiling, ensuring that food is cooked evenly and thoroughly from above. It's essential for tasks such as broiling meats, melting cheese, and toasting bread. The element measures 15 3/8 inches from the front to the mounting bracket. It measures 12-1/4 inches wide, and 3 1/4 inches from the bracket to the terminal end. The mounting holes are 11-1/2 inches apart.

You should replace the broil element if it becomes faulty or damaged. Causes of a bad broil element can include regular wear and tear, overheating, or electrical issues that prevent it from heating up properly.

Symptoms of a bad broil element include:

• The broil element not heating up
• Uneven heating during the broiling process
• Visible damage or burn marks on the element
• Sparking or unusual noises when the broil function is used

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This bake element is the primary heat source for the bake cycle in your range or wall oven. Replacing a failed element helps restore proper preheating and more even results when using the bake setting.

• Provides direct heat during the bake cycle
• Works with the control/thermostat to reach and maintain set temperature
• Common failure symptoms: no heat in bake, very long preheat, won't reach temperature, uneven baking
• Visual clues: blistering, cracking, breaks, or burnt spots on the element sheath

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the element from the oven cavity; remove mounting screws/bracket
• Pull the element forward carefully and move wires one at a time to the new element; do not let wires slip back into the insulation
• Ensure terminals are fully seated and the mounting plate is secure before restoring power

Support for broil heating element.

Note: Due to a factory change, the new glide may be shorter than your original. Per Factory: The original part was 19.75". The new part is 16.25" and will install and function the same.

A replacement motor latch that secures the motor assembly to the appliance chassis, helping keep the motor stable during operation for smoother performance and reduced vibration. Fits specific Frigidaire/WCI motor assemblies. What it does:

• Secures and positions the motor assembly to prevent excessive movement
• Helps reduce vibration and rattling caused by a loose motor mount
• Restores proper alignment between motor and drive components
• Can eliminate intermittent contact-related noise from a shifting motor

• Disconnect power (unplug or switch off breaker) before starting any repair
• Installation typically requires accessing the motor area—expect to remove panels or the cabinet
• Keep track of mounting hardware; replace any damaged fasteners
• Test operation after reassembly; stop and recheck if noises or vibration persist

This evaporator fan cover protects the refrigerator evaporator fan assembly and helps direct airflow for proper cooling. It's a molded replacement part that restores the original airflow path and prevents debris contact with the fan. What it does:

• Shields the evaporator fan and motor from ice buildup and loose debris
• Directs airflow across the evaporator for even cooling in the freezer compartment
• Helps reduce fan noise by stabilizing airflow around the fan housing
• Commonly replaced when cracked, broken mounting tabs are present, or airflow is obstructed

• One fan cover

• Disconnect power before accessing the evaporator compartment to avoid shock and fan injury
• Remove food and evaporator access panels per model service instructions before replacing the cover
• Handle clips and mounting tabs gently—use proper fasteners if any original hardware is damaged
• If you encounter ice buildup on the evaporator, fully defrost and address the underlying cause before reassembly

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

Size: 3/4 inch od x 1/4 inch id.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This convection fan element mounts on the oven's rear wall around the blower. It supplies supplemental electric heat so the fan can circulate hot air evenly during convection modes for more consistent baking and roasting.

• Provides heat directly around the convection fan to help maintain even temperature during convection cycles
• Failure can cause poor browning, uneven results on multiple racks, or convection modes that run without proper heating
• May show visible breaks, blistering, or burnt spots; an open element will fail a continuity check
• If standard bake heats normally but convection bake does not, this element may be at fault

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks and the rear interior panel to access the element surrounding the fan
• Note wire positions; transfer any spacers or mounting hardware from the original element as needed
• Secure the element without bending it and confirm the fan spins freely with proper clearance

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Size: 8-18ab x 0.5 inch.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.

Color: Black

Size: 8-32t x 0.500 inch. Color: Black.
