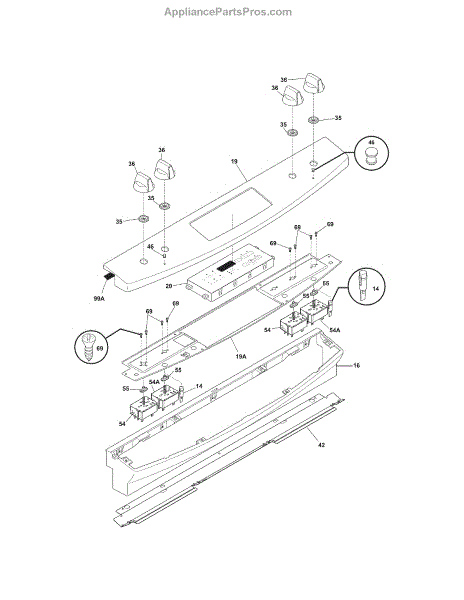

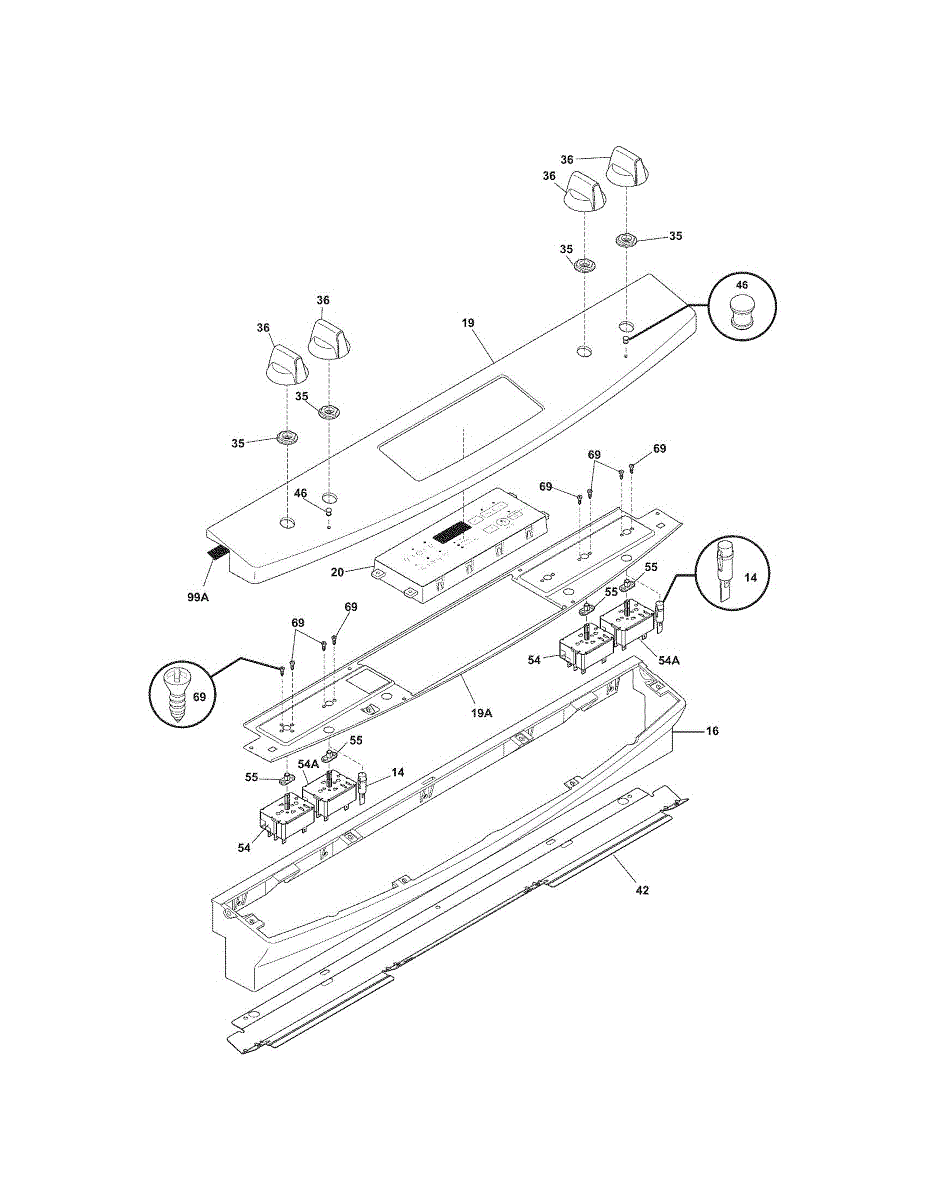

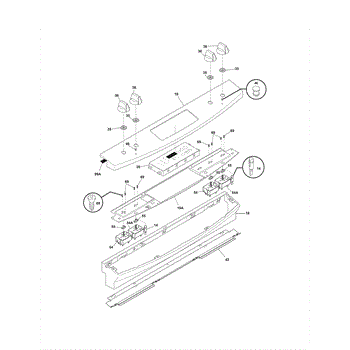

Parts for Kenmore 790.45589903 (79045589903, 790 45589903): Backguard Parts

This control console is the outer housing that holds and protects the appliance's control buttons and display, restoring a clean, functional front surface and securing the control components. What it does:

• Covers and supports the control board, buttons and display for normal operation
• Restores a finished appearance when the original console is cracked, broken or cosmetically damaged
• Helps keep moisture, dust and debris away from controls to reduce malfunctions
• Provides the mounting surface for knobs, switches and electronic controls

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Handle carefully to avoid scratching the finish and protect any attached wiring or trim
• Typical install requires removing the top or front trim and transferring controls or hardware as needed
• Keep all screws and clips; use the same hardware or OEM replacements for secure fit

This control panel is the user interface for your oven/range, letting you set temperatures, timers, and cooking modes from the front console. Replaces a worn or non-responsive control surface to restore normal oven control and display readability. What it does:

• Provides the touchpad/buttons and display area used to enter oven and timer functions
• Restores response when front controls are unresponsive, sticky, or intermittently working
• Replaces a cracked or faded panel that makes settings hard to read
• Works with the oven's electronic control to send user commands for bake, broil, timers, and clock

• Disconnect power to the appliance before attempting any repair
• Handle the panel carefully to avoid damaging the touch surface or display lens
• Require removal of trim or bezels; keep screws and fasteners organized

A direct-fit round control knob that restores tactile control of your appliance's settings. Replaces a worn, cracked, or missing knob so you can reliably select heat and function positions. What it does:

• Provides a secure grip to turn the appliance control shaft for temperature or function selection
• Replaces broken, loose, or stripped knobs that prevent accurate setting changes
• Helps restore precise pointer alignment so marked settings match actual selection
• Fits standard shaft-style controls used on many Frigidaire ranges and ovens

• Disconnect power to the appliance before replacing control knobs to avoid injury
• Pull the old knob straight off the control shaft; align and push the new knob onto the shaft until fully seated
• Do not force the knob—if it does not slide on easily, verify shaft type and orientation
• If the control shaft is damaged or the knob still slips after installation, replace the underlying control.

This replacement control knob restores smooth, accurate selection of burner or function settings on your range or cooktop. Replace a cracked, loose, or stripped knob to regain dependable control and clear pointer alignment.

• Attaches to the valve or switch stem to set heat level or function
• Restores clear pointer alignment and tactile feel
• Symptoms include a cracked knob, worn/unreadable markings, loose fit, spinning freely, or falling off
• If turning is imprecise or hard, the knob's insert may be stripped

• Disconnect power and shut off gas if working near burner valves
• Pull the old knob straight off the stem; do not pry against the panel
• Align the new knob with the stem shape and push straight on until fully seated; verify it points to OFF
• Do not force past stops; if it won't seat, inspect the stem for damage

This replacement switch restores reliable on/off signaling for a specific circuit in your appliance, helping the intended function operate consistently and safely. It's a direct-fit part used in select cooking appliances where a mechanical/electrical switch is required. What it does:

• Opens and closes an electrical circuit when actuated to control a designated function (such as a light, interlock, or enable signal), per model design
• Helps the control system detect a condition (e.g., a door position) to allow or inhibit operation
• Resolves issues like a light that won't turn on/off, "door open" messages when closed, or functions that start/stop unexpectedly
• Replaces a worn, stuck, or intermittently failing switch that causes inconsistent operation

• One switch

• Disconnect power before servicing; this part carries live voltage during operation
• Access the switch at its mounting location
• Move wires one at a time from the old switch to the new to maintain correct terminal positions; ensure snug, clean connections
• Test function before reassembly to confirm proper actuation and operation

This replacement electrical switch restores dependable control of the selected function in your appliance, allowing you to turn the feature on and off reliably. Use it to replace a worn, unresponsive, or sticking switch for safe, consistent operation.

• Opens and closes the circuit to its assigned component when actuated
• Helps resolve a feature that won't turn on or won't shut off
• Addresses intermittent operation or a switch that feels loose, sticks, or shows heat damage
• Restores normal control response after internal switch failure

• Disconnect power at the breaker before servicing
• Access may require removing the control panel or backguard; take a photo and label wires
• Move one wire at a time from the old switch to the new to maintain correct connections
• Inspect terminals; replace any damaged spade connectors to ensure a secure fit

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This repair parts list is a parts-identification sheet that helps technicians and owners component names and reference numbers before ordering or repairing. It reduces ordering mistakes by clarifying which parts are shown. What it does:

• Lists service part names and reference numbers as printed by the manufacturer
• Shows exploded-diagram callouts or part index to aid parts identification
• Helps the correct part before ordering to avoid returns
• Useful for referencing replacement part quantities and locations

• Not an electrical or mechanical replacement part; for reference only
• Keep with appliance records or service documentation for future use
• Handle and store flat to preserve legibility; replace if torn or smudged
• If you need a full service manual or installation instructions, order the specific manual from the manufacturer or authorized dealer

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This overlay is the graphic label for the appliance's control panel. It restores clear button legends and a clean finish, replacing a worn, peeling, or damaged original so the controls are easy to read and use.

• Provides printed button labels and indicator marks for the user interface
• Helps shield the underlying touchpad/control board area from everyday wear
• Replace if text has worn off, film is peeling or bubbling, edges are cracked, or surface is sticky/discolored
• Common after replacing a touchpad/control panel, when graphics must match the new assembly

• Disconnect power before servicing to prevent accidental operation or shock
• Remove the control panel and old overlay; clean and dry the mounting surface
• Align the new overlay with buttons/indicators and apply evenly without wrinkles
• Reassemble and test the controls for proper operation

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
