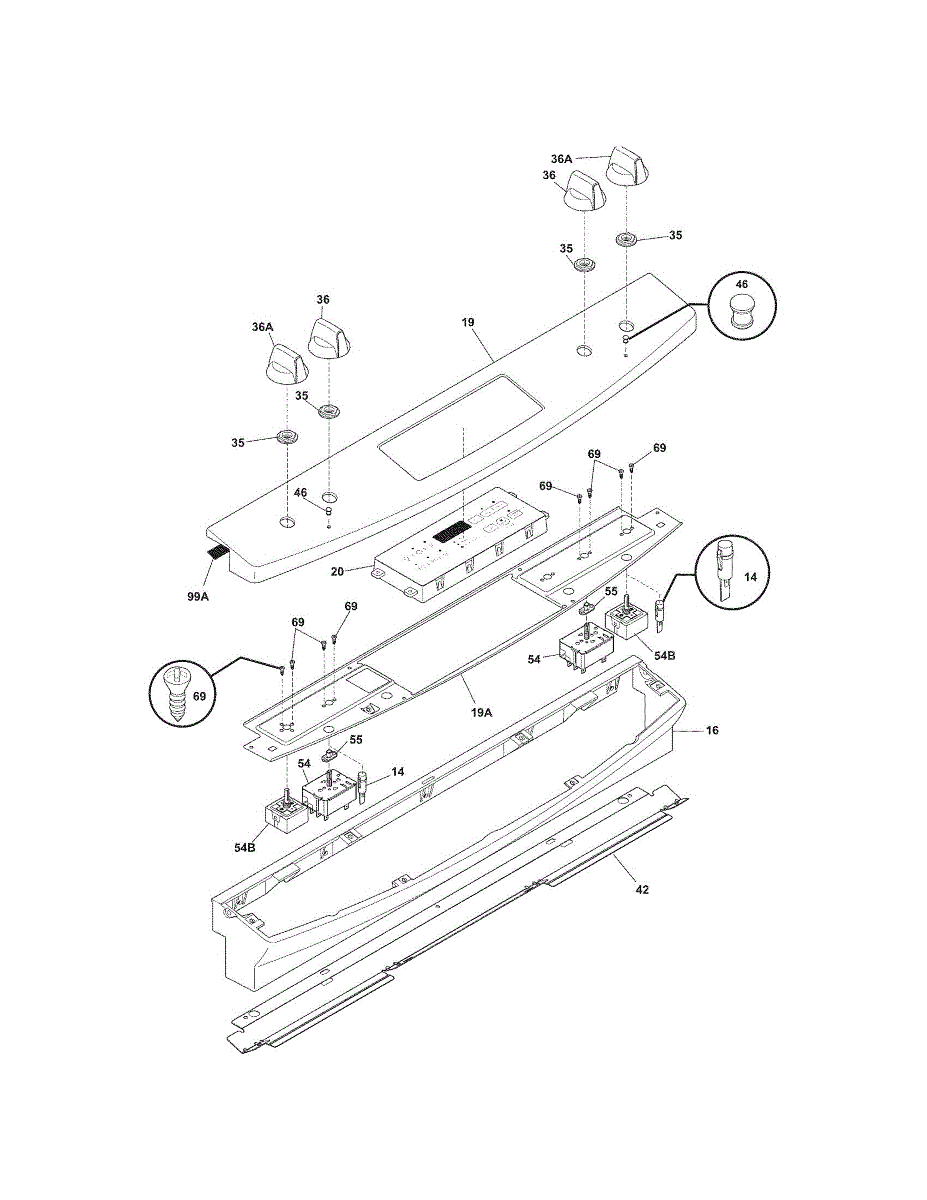

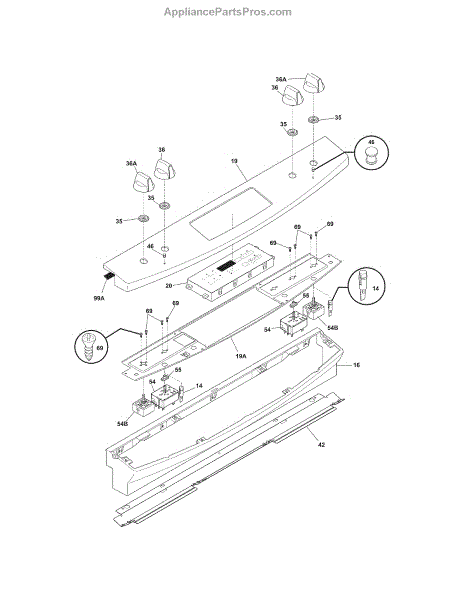

Parts for Kenmore 790.45599901 (79045599901, 790 45599901): Backguard Parts

Replace your range's cracked or worn touch pad control panel. This cosmetic part installs on the front console to restore the appearance and function.

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Black control panel assembly for electric ranges. Replaces cracked, broken, or worn touch pad panels. Installs on the front control area to restore appearance.

White touch pad control panel assembly for electric ranges. Replaces cracked, worn, or non-responsive control panels. Direct fit replacement part.

User interface panel for your range front console. Replace if the touchpad surface is worn, cracked, faded, or cosmetically damaged. Restores clean appearance.

This electronic control board operates your oven's clock, timer, and temperature management systems. It processes user inputs and controls heating elements to maintain proper cooking conditions. Replace this board when your oven's digital display malfunctions, timing functions fail, or when temperature controls become unresponsive.

Fix a range with no display, incorrect time, or won't start cooking cycles. This control board clock timer restores proper oven timing and temperature control.

The electronic control board that manages oven functions including temperature regulation, timing, and cooking modes. Replace when the oven won't heat properly, displays error codes, or temperature controls become erratic.

A direct-fit round control knob that restores tactile control of your appliance's settings. Replaces a worn, cracked, or missing knob so you can reliably select heat and function positions. What it does:

• Provides a secure grip to turn the appliance control shaft for temperature or function selection
• Replaces broken, loose, or stripped knobs that prevent accurate setting changes
• Helps restore precise pointer alignment so marked settings match actual selection
• Fits standard shaft-style controls used on many Frigidaire ranges and ovens

• Disconnect power to the appliance before replacing control knobs to avoid injury
• Pull the old knob straight off the control shaft; align and push the new knob onto the shaft until fully seated
• Do not force the knob—if it does not slide on easily, verify shaft type and orientation
• If the control shaft is damaged or the knob still slips after installation, replace the underlying control.

Replacement control knob for your range or cooktop. Installs on the valve stem to select burner heat levels. Replace cracked, loose, or stripped knobs.

The translucent cover that protects and diffuses light from indicator bulbs on your range's control panel. Replace when the lens is cracked, yellowed, or missing, making it difficult to see indicator lights clearly.

If your range burner won't turn on or off properly, or the indicator light stays on when turned off, this infinite switch restores control. DIY repair.

If your dual burner stays on low and won't turn off, or the small element doesn't heat, this infinite switch may need replacing. DIY-friendly repair.

Molded support sleeve that aligns and stabilizes rotating shafts in your range. Replace if worn, cracked, or causing excessive vibration or noise.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

This repair parts list provides the official parts breakdown and diagram for identifying service components and ordering the correct replacements. Handy for technicians and DIYers who need an accurate parts reference. What it does:

• Shows exploded diagrams and part numbers to identify each component
• Supports troubleshooting by clarifying parts location and assembly
• Reduces returns by ensuring correct part selection

• This item is a reference document, not a physical replacement part or repair service
• Use the parts list to locate parts, then follow OEM service instructions for repairs
• Turn off and unplug the appliance before attempting any service

Wire harness for electric ranges. Connects internal electrical components. Replace if wires are frayed, damaged, burned, or connections are loose.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Decorative overlay that fits over your range's control panel touch pad. Replace if cracked, peeling, faded, or worn to restore appearance and readability.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Graphic label overlay for your electric range control panel. Replaces worn, peeling, or cracked original to restore clear button legends and a clean finish.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
