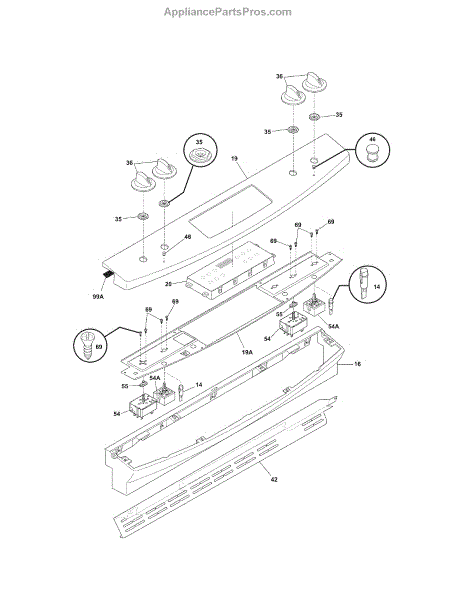

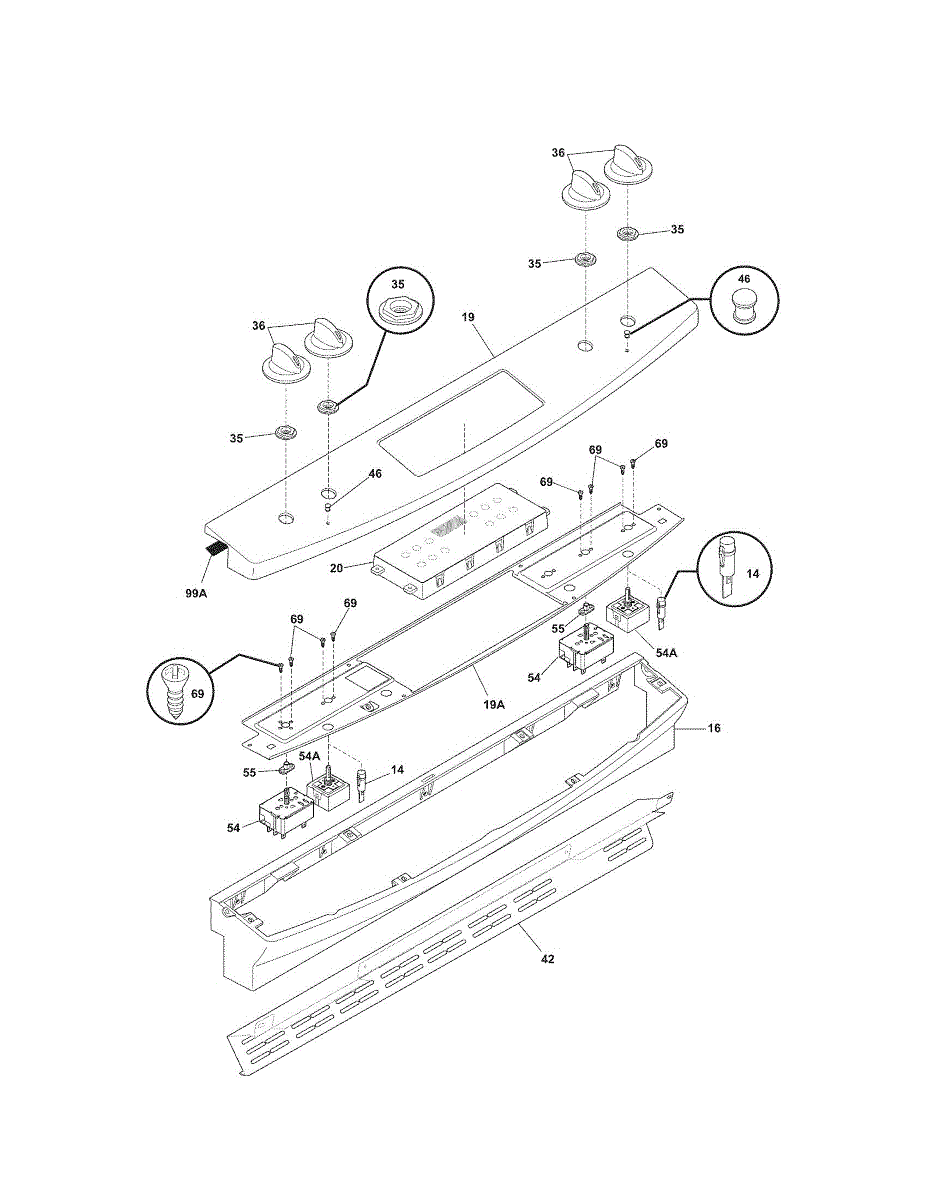

Parts for Kenmore 790.46583503 (79046583503, 790 46583503): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Black control panel assembly for electric ranges. Replaces cracked, broken, or worn touch pad panels. Installs on the front control area to restore appearance.

This electronic control board manages oven timing functions, temperature settings, and cooking mode selection. It includes the digital display, programming buttons, and circuits that control heating elements and cooking cycles. Replace if your oven timer doesn't work, won't maintain temperature, or if the display shows error messages.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

The translucent cover that protects and diffuses light from indicator bulbs on your range's control panel. Replace when the lens is cracked, yellowed, or missing, making it difficult to see indicator lights clearly.

If your range burner won't turn on or off properly, or the indicator light stays on when turned off, this infinite switch restores control. DIY repair.

Molded support sleeve that aligns and stabilizes rotating shafts in your range. Replace if worn, cracked, or causing excessive vibration or noise.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Replacement use and care guide manual for your range. Needed when original documentation is lost, damaged, or missing. Provides operating instructions.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
