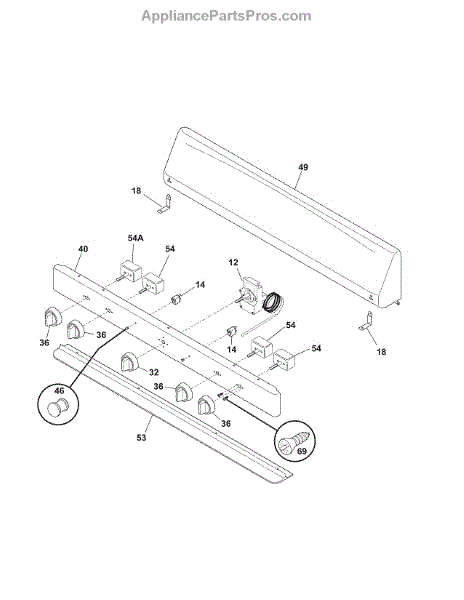

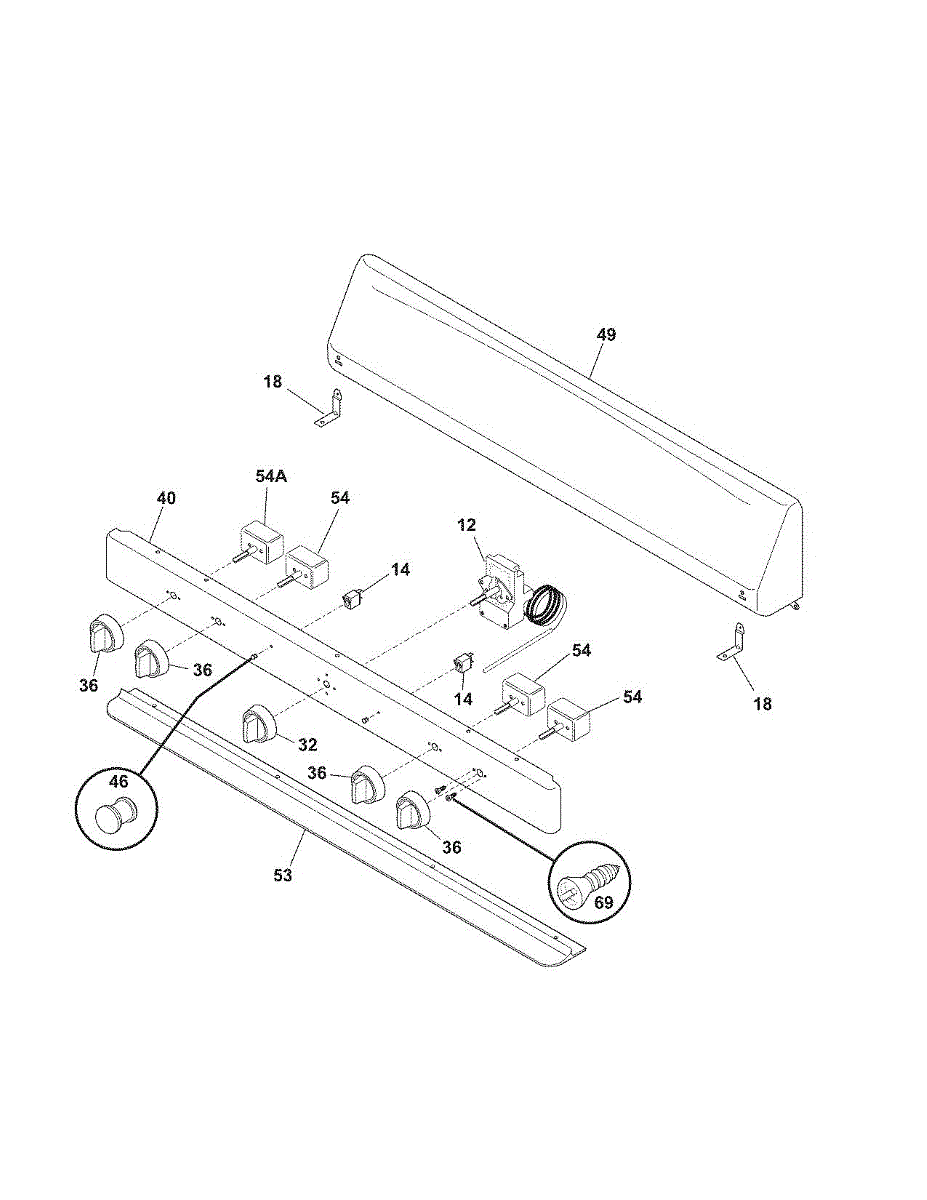

Parts for Kenmore 790.60042404 (79060042404, 790 60042404): Backguard Parts

Oven shutting off during baking or self-clean? This limit thermostat prevents overheating and restores reliable operation. Direct replacement part.

Range indicator light illuminates to show when burners or oven are on. Replace if light is dim, flickering, or burned out. Verify fit with your model.

Mounting bracket that secures the backguard panel to your range. Replace if bent, broken, or missing to ensure proper backguard installation.

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Burner won't heat or stays on constantly? This infinite switch restores variable heat control to your cooktop element. Moderate DIY repair.

Burner won't heat or stays on constantly? This range burner control switch regulates cooktop element temperature. Straightforward DIY fix.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a repair parts list — a printed parts diagram and index that identifies replacement components for the appliance. It helps you locate the correct part numbers and diagram references so you can order or replace parts with confidence. What it does:

• Shows exploded diagrams and part numbers for appliance assemblies and components
• Helps identify the exact replacement part required for a failed component
• Speeds parts lookup and reduces ordering errors when servicing the unit
• Serves as a quick reference for technicians and DIY repairs

• No installation required; for reference only
• Keep with appliance documentation or service kit for future repairs
• Handle and store the print safely to prevent tearing or water damage
