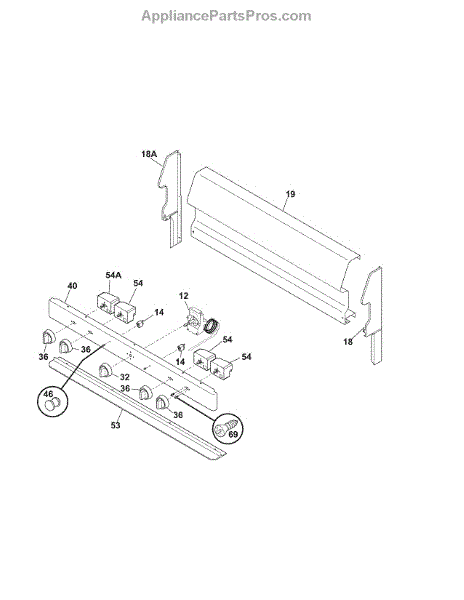

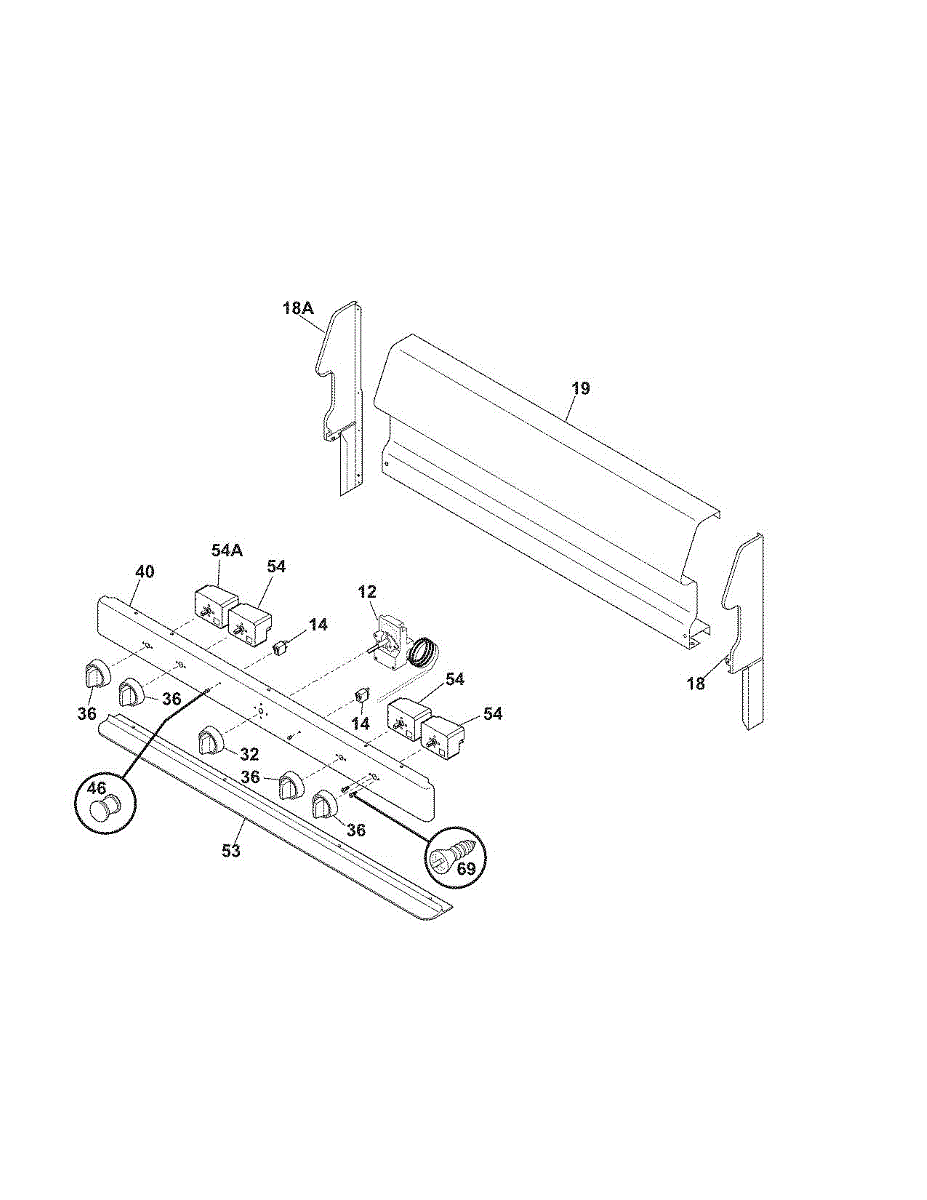

Parts for Kenmore 790.64091306 (79064091306, 790 64091306): Backguard Parts

Oven shutting off during baking or self-clean? This limit thermostat prevents overheating and restores reliable operation. Direct replacement part.

Range indicator light illuminates to show when burners or oven are on. Replace if light is dim, flickering, or burned out. Verify fit with your model.

Color: Black

Color: Black

Replace your broken or missing range control knob. This knob installs on the control panel to operate oven functions. Order a new knob if yours is cracked or worn.

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Burner won't heat or stays on constantly? This infinite switch restores variable heat control to your cooktop element. Moderate DIY repair.

Burner won't heat or stays on constantly? This range burner control switch regulates cooktop element temperature. Straightforward DIY fix.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This repair parts list is the official service diagram and parts breakdown used to identify replacement components and part numbers for appliance repair. It helps technicians and DIYers the correct parts before ordering. What it does:

• Shows the component layout and exploded-view diagram for accurate part identification
• Lists catalog part numbers and item callouts so you can match the exact replacement
• Helps diagnose which part may be failing by showing how components connect
• Reduces ordering mistakes by clarifying fit and placement of parts

• One repair parts list/service diagram

• This item is documentation for reference only; it does not perform a physical repair
• Use the parts list to identify parts before installation; follow OEM instructions for replacements
• Always unplug the appliance or shut off power and water before servicing
