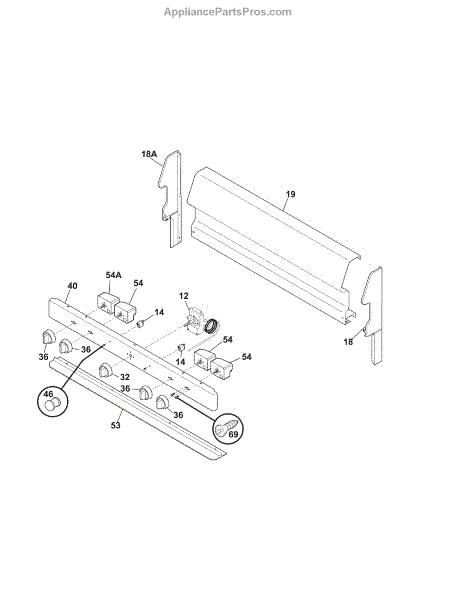

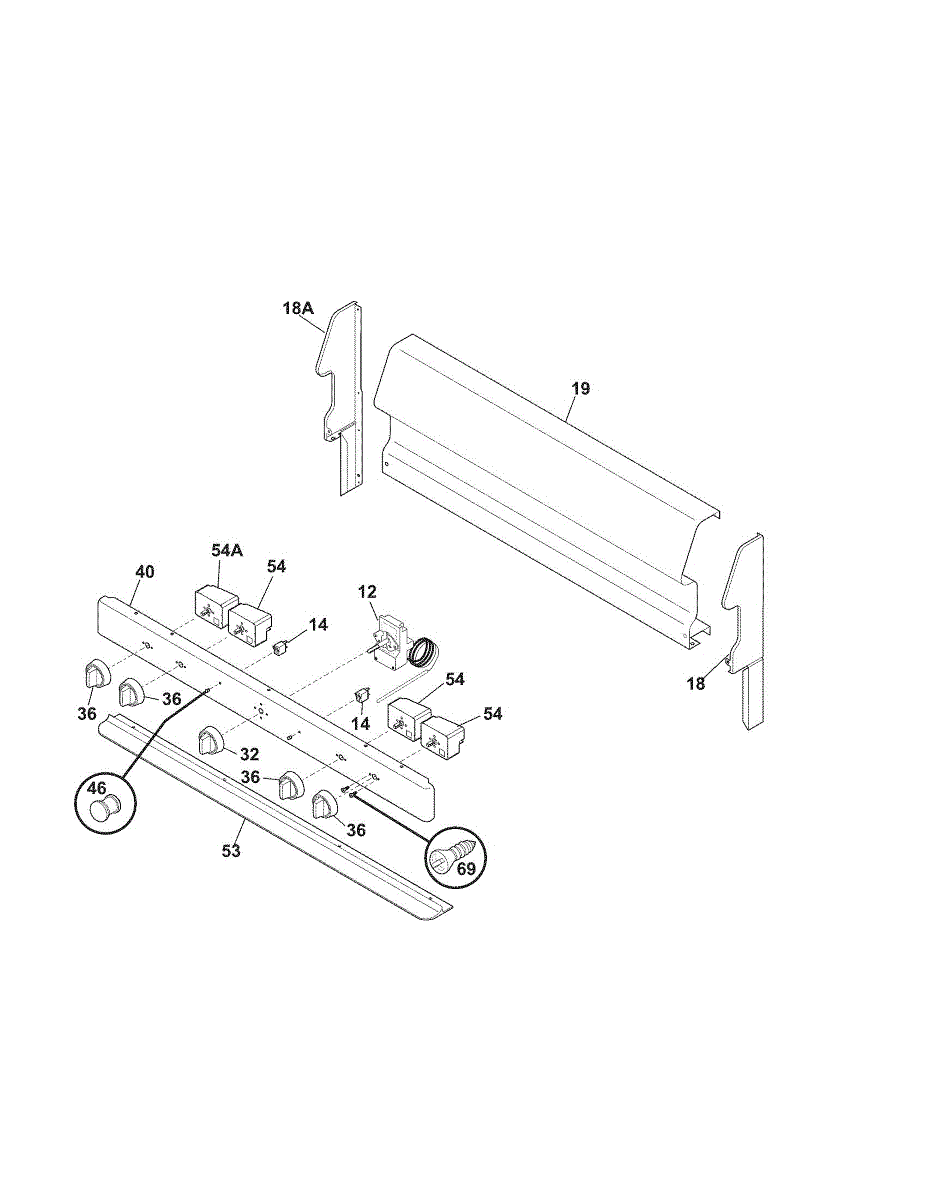

Parts for Kenmore 790.6409130B (7906409130B, 790 6409130B): Backguard Parts

Oven shutting off during baking or self-clean? This limit thermostat prevents overheating and restores reliable operation. Direct replacement part.

Range indicator light illuminates to show when burners or oven are on. Replace if light is dim, flickering, or burned out. Verify fit with your model.

Color: Black

Color: Black

Replace your broken or missing range control knob. This knob installs on the control panel to operate oven functions. Order a new knob if yours is cracked or worn.

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Burner won't heat or stays on constantly? This infinite switch restores variable heat control to your cooktop element. Moderate DIY repair.

Burner won't heat or stays on constantly? This range burner control switch regulates cooktop element temperature. Straightforward DIY fix.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This printed repair parts list identifies the appliance's replaceable components and part numbers to help technicians and owners locate and order the correct replacement parts faster. Ideal for reference during troubleshooting and repairs. What it does:

• Lists part names, item locations, and corresponding part numbers for service reference
• Helps you verify the correct replacement part before ordering or repairing
• Speeds diagnostics by providing a quick parts overview for common failures
• Useful for service techs and DIYers when addressing symptoms like no cooling, no power, unusual noises, or broken/failed components

• This sheet is for reference only; it does not replace the full service manual or wiring diagrams
• Always disconnect power and follow safety procedures before servicing the appliance
