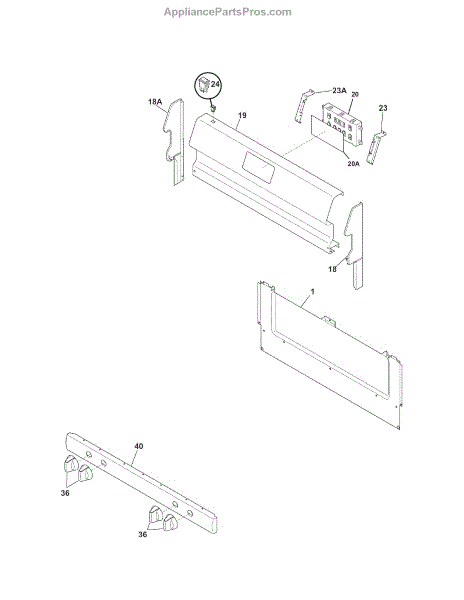

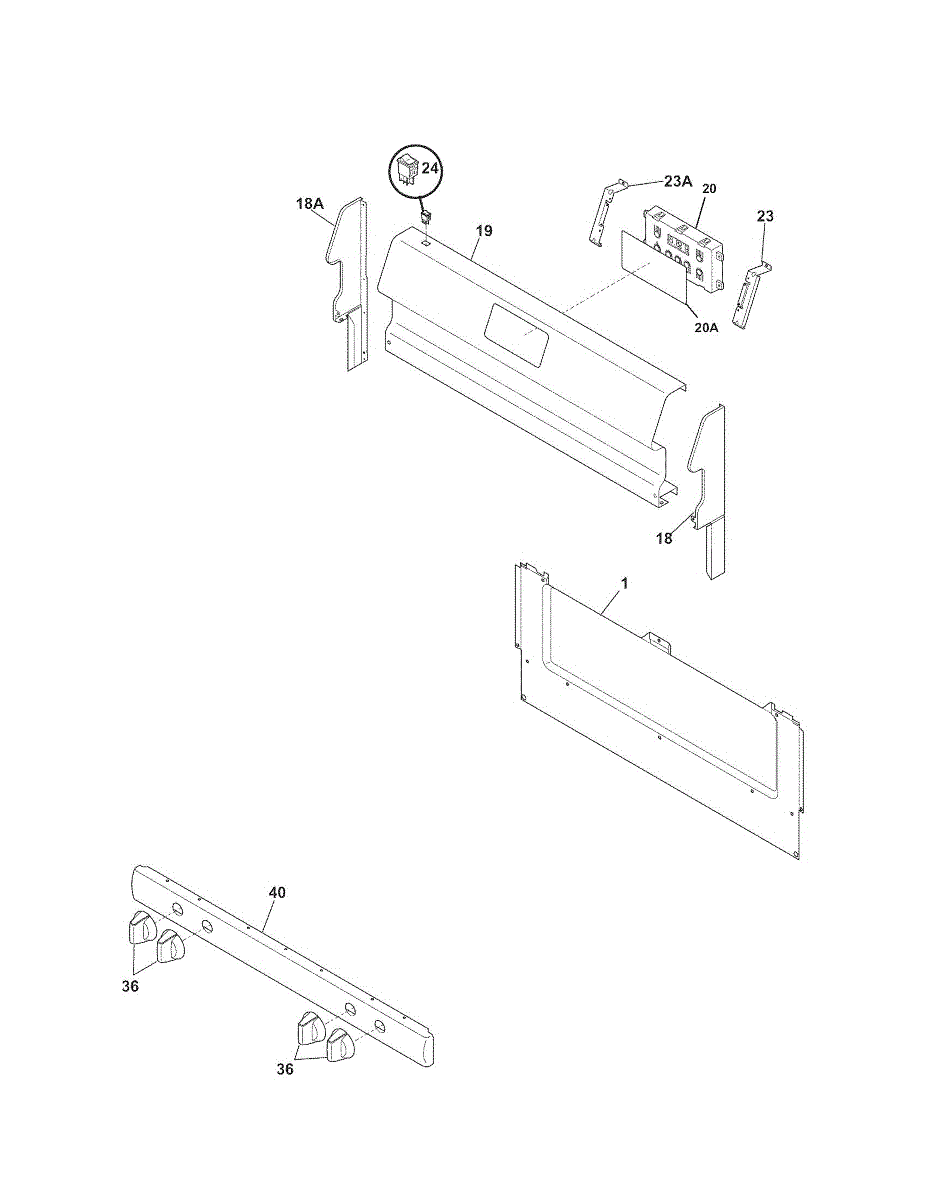

Parts for Kenmore 790.70402012 (79070402012, 790 70402012): Backguard Parts

Color: White

Color: White

Color: Black

Color: Black

Adhesive graphic overlay that labels buttons on your range control panel. Replace when worn, peeling, faded, or unreadable to restore clear keypad labels.

Adhesive label overlay for range control panels. Restores readable button legends and protects the control face. Replace when worn, faded, or damaged.

The Clock/Timer is an OEM replacement part for Frigidaire ranges. It allows for precise time and temperature settings to be entered and displayed for oven functions.

As a digital module, causes for failure may include corrupted firmware over time or water/debris intrusion damaging circuits. Backlight failure is common after extended hours of usage.

Symptoms consist of:

• Inaccurate time displaying/keeping
• Timer functions like pre-heating not engaging
• Corrupted or non-responsive touch controls
• Faint or no display illumination

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace the touch pad panel on your gas range. This control interface covers the electronic buttons and display. Order a new one if cracked or worn.

This repair parts list provides the official parts breakdown and diagram used for service and parts ordering. It helps identify the correct replacement components and part numbers so technicians or owners can plan repairs more accurately. What it does:

• Shows exploded diagrams and part numbers for the appliance to simplify part identification
• Clarifies component placement and orientation for accurate ordering
• Helps required parts before beginning repairs or contacting support
• Useful for technicians and experienced owners as a reference during troubleshooting

• One repair parts list

• This is a reference document; no physical installation is required
• Review diagrams carefully and match part numbers exactly before ordering
• Keep the parts list with appliance records for future service

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
