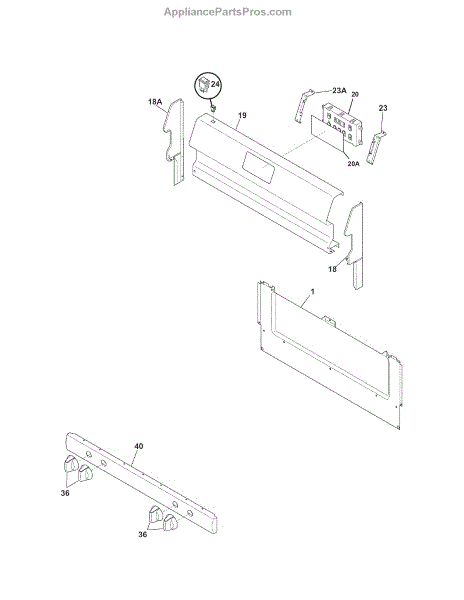

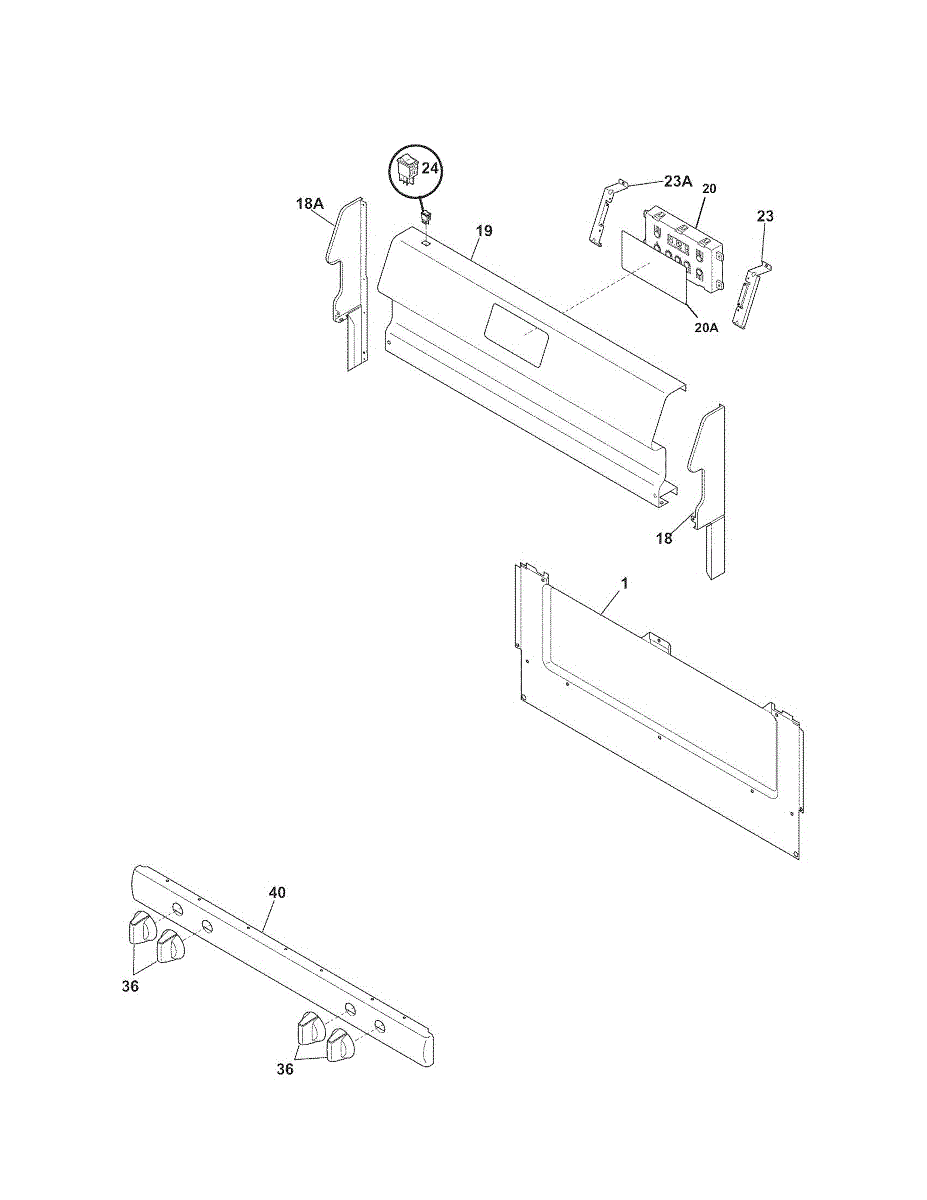

Parts for Kenmore 790.70409010 (79070409010, 790 70409010): Backguard Parts

Color: White

Color: White

Color: Black

Color: Black

Adhesive label overlay for range control panels. Restores readable button legends and protects the control face. Replace when worn, faded, or damaged.

Adhesive graphic overlay that labels buttons on your range control panel. Replace when worn, peeling, faded, or unreadable to restore clear keypad labels.

This is the electronic oven control board that manages cooking functions including temperature regulation, bake and broil cycles, and clock/timer operations. It mounts behind the control panel at the back of the range. Replace this board if the oven fails to heat, displays error codes, has an unresponsive control panel, or runs at incorrect temperatures.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace the touch pad panel on your gas range. This control interface covers the electronic buttons and display. Order a new one if cracked or worn.

This repair parts list is the factory parts diagram and index that helps you identify and order the correct replacement parts. Handy for troubleshooting. What it does:

• Shows exploded diagram locations so you can visually identify the part you need
• Lists OEM part numbers and item names to avoid ordering errors
• Helps match symptoms to candidate parts for faster diagnosis
• Serves as a reference during repairs and parts replacement

• No tools required; this is a reference document only
• Keep the sheet dry and store with your appliance records
• Use the listed part numbers when ordering replacements
• Discard previous/damaged copies to avoid confusion

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
