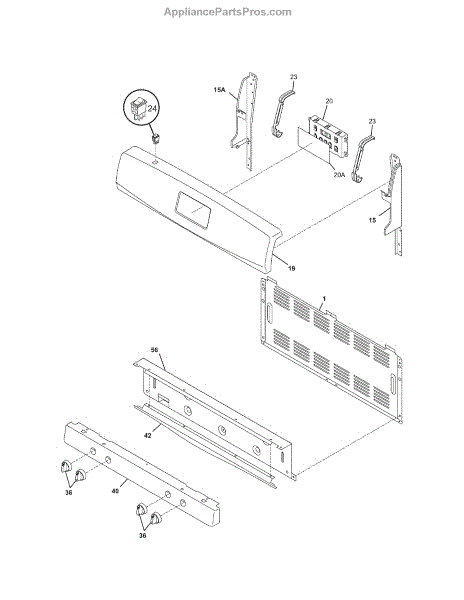

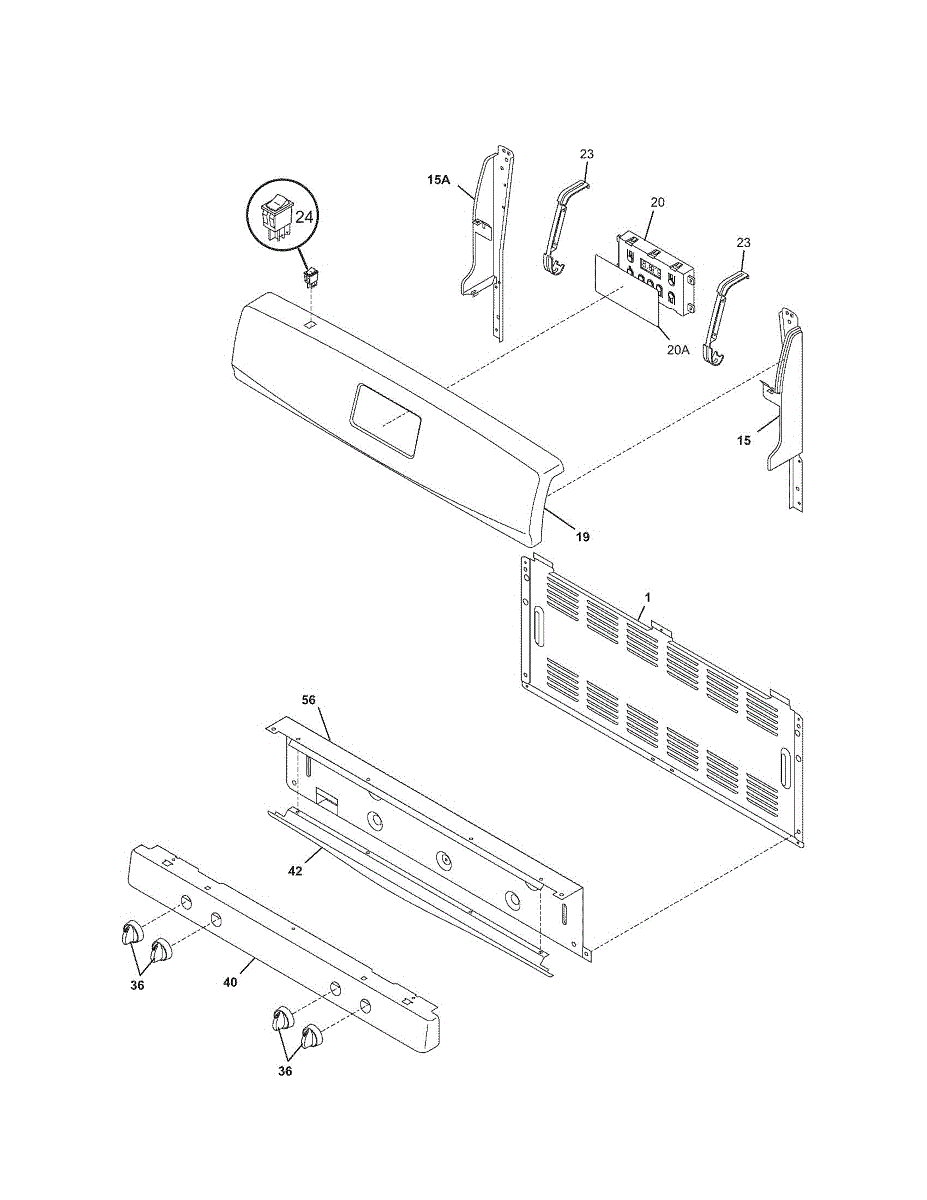

Parts for Kenmore 790.71202700 (79071202700, 790 71202700): Backguard Parts

This is the electronic oven control board that manages cooking functions including temperature regulation, bake and broil cycles, and clock/timer operations. It mounts behind the control panel at the back of the range. Replace this board if the oven fails to heat, displays error codes, has an unresponsive control panel, or runs at incorrect temperatures.

Control panel overlay for electric and gas ranges. Labels buttons and controls on the interface. Replace if cracked, peeling, faded, or worn out.

Protective cover for your range control panel with button markings. Replace if cracked, faded, or mounting tabs are broken. Installs over the clock assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: white. Measures about 2 inches in diameter.

Color: black. Measures about 2 inches in diameter.

This control panel is the user interface assembly that restores your appliance's controls and front appearance. It provides a clean surface for buttons and the display so you can operate the unit safely and reliably. What it does:

• Houses buttons, touchpads or display used to select functions and settings
• Replaces cracked, warped or cosmetically damaged front panels
• Can resolve unresponsive or hard-to-press controls when the panel is the damaged component
• Protects internal control electronics from everyday wear and splashes

• One control panel assembly

• Disconnect power to the appliance before starting any repair
• Handle the panel and any glass or trim carefully to avoid damage
• Keep screws, clips and electrical connectors organized during disassembly

Grey extrusion trim piece for gas range exterior panels. Replaces cracked, broken, or missing trim that affects your range's finished appearance.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This official repair parts list provides the factory parts diagram and part-numbered list to help identify replacement components for repairs. Use it to order. What it does:

• Shows exploded diagrams and part numbers for appliance components
• Helps locate the exact part and its mounting/location on the appliance
• Makes ordering the correct replacement parts faster and more accurate
• Assists in diagnosing which part may be worn, broken, missing, or causing a problem (leaks, noises, cooling issues)

• This is a reference document, not an installed part—no installation required
• Keep the document dry and accessible during repairs

Service tech sheet for your range. This technical document provides wiring diagrams, troubleshooting guides, and specifications for repair technicians.

Printed owners manual for your range. Provides operating instructions, maintenance guidelines, and safety information. Order a replacement copy.

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
