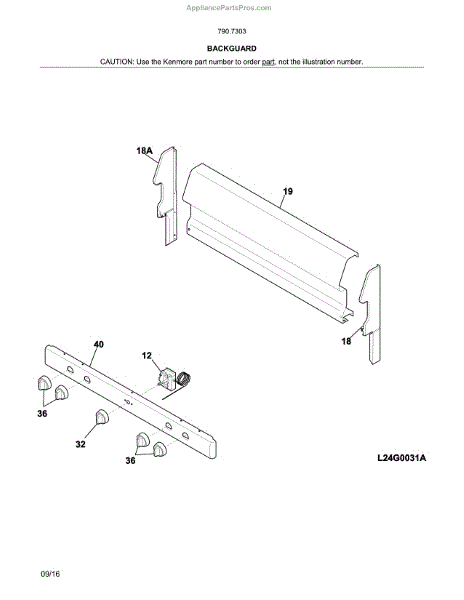

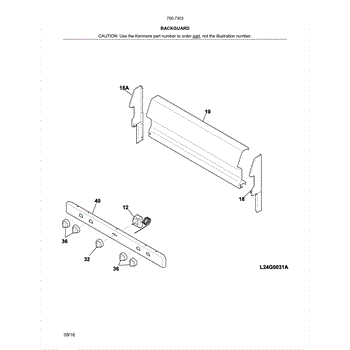

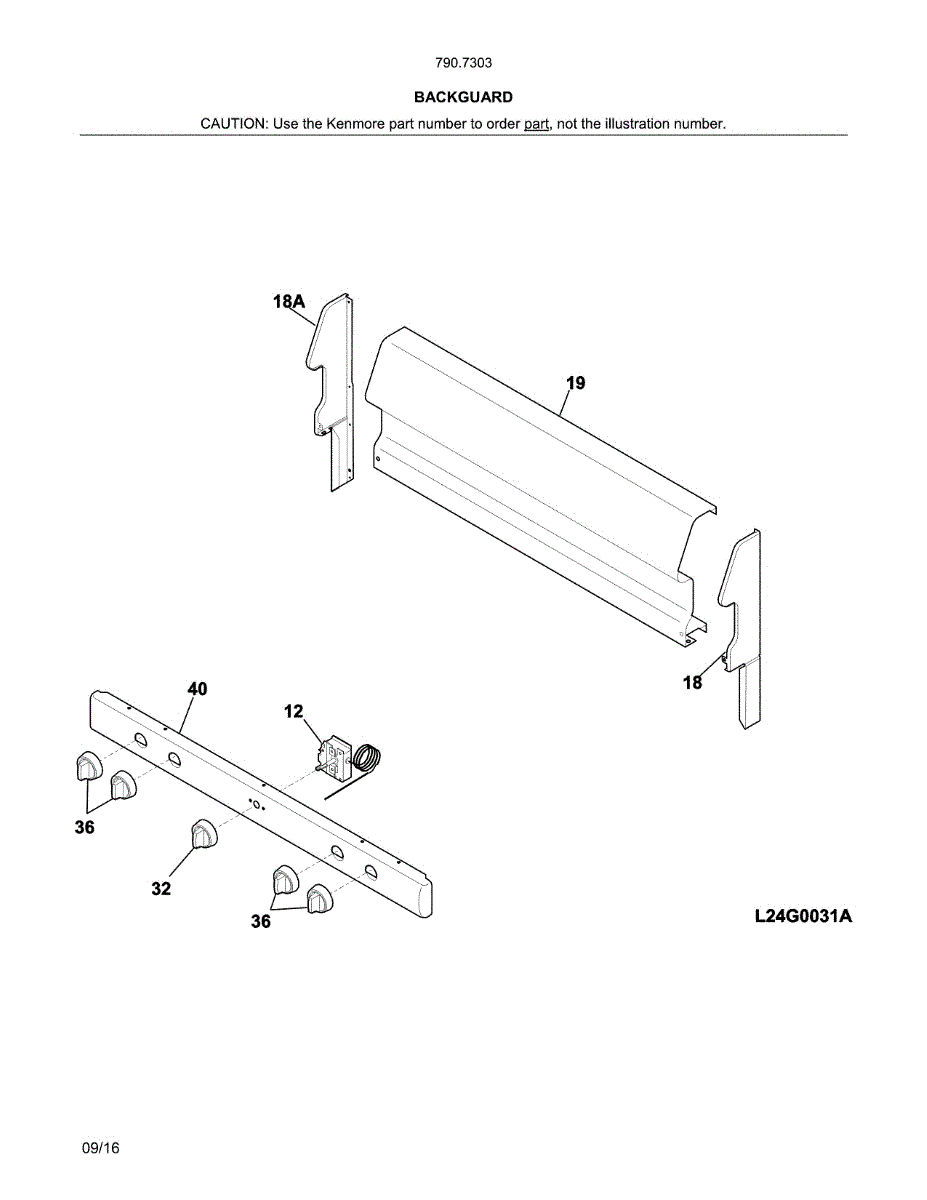

Parts for Kenmore 790.73032315 (79073032315, 790 73032315): Backguard Parts

Color: White

Color: White

Color: Black

Color: Black

This is the adhesive graphic that labels the buttons on the electronic control panel. Replacing a worn, peeling, or unreadable overlay restores a clean look and makes the keypad labels easy to see again.

• Identifies control functions on the electronic oven/range panel
• Adheres to the control face; no electronics are included
• Common fix for worn-off text, bubbling/peeling edges, or cracked graphics
• Helps refresh the panel's appearance after damage or heavy cleaning

• Disconnect power to the appliance before starting
• Remove knob(s)/trim as needed to access the existing overlay
• Carefully peel off the old overlay and clean the surface of residue
• Align and apply the new overlay; press firmly to bond without bubbles

This control panel overlay is the adhesive label that sits over the electronic control, providing clear button legends and a clean, finished appearance. Replace a worn or damaged overlay to restore readable controls and protect the control face.

• Provides printed labels for keys and display so functions are easy to identify
• Covers and helps protect the electronic control surface from everyday wear
• Precisely aligns with the underlying touchpad/buttons for correct operation
• Typical replacement when the original overlay is faded, cracked, peeling, or missing

• Disconnect power to the appliance before servicing.
• Remove the control panel as needed. Peel off the old overlay and adhesive residue; clean and dry the surface.
• Align openings with the display and buttons, then apply from the center outward to avoid bubbles.
• Once adhered, the overlay cannot be repositioned; press firmly to secure.

The Clock/Timer is an OEM replacement part for Frigidaire ranges. It allows for precise time and temperature settings to be entered and displayed for oven functions.

As a digital module, causes for failure may include corrupted firmware over time or water/debris intrusion damaging circuits. Backlight failure is common after extended hours of usage.

Symptoms consist of:

• Inaccurate time displaying/keeping
• Timer functions like pre-heating not engaging
• Corrupted or non-responsive touch controls
• Faint or no display illumination

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement control knob restores simple, reliable control for your appliance's front-panel settings. It provides a secure, easy-to-turn grip to replace a cracked, stripped, loose, or missing knob so you can select settings confidently. What it does:

• Fits onto the appliance control shaft to allow manual selection of heat or function settings.
• Replaces knobs that are cracked, melted, stripped, loose, or missing.
• Helps prevent accidental slips and improves tactile feedback when adjusting controls.
• Works as a direct-fit user interface part—does not change electrical or mechanical function of the control assembly.

• Always disconnect power (or turn off gas supply where applicable) before servicing controls.
• Most installs require pulling the old knob straight off the splined shaft and pushing the replacement onto the matching splines until seated.
• Verify correct orientation of any index marker on the knob so settings align with the appliance indicators.
• If knob does not seat fully, inspect the shaft and any retaining clip for damage before completing installation.

This control knob replaces a worn, cracked, or missing stove/oven control knob so you can set and adjust temperature or burner settings easily. It restores a secure grip and clear position selection for safe operation. What it does:

• Fits onto the appliance control shaft to select heat, temperature, or function settings.
• Restores reliable on/off and setting selection when an original knob is loose, broken, or missing.
• Helps prevent accidental changes by providing a snug, indexed control surface.
• Works as a direct-fit replacement when the original knob no longer engages the control shaft.

• Disconnect power to the appliance before service; for gas ranges, turn off the gas supply as applicable.
• Most knobs pull straight off the control shaft and push the replacement on until seated; do not force.
• Inspect the control shaft and any retaining clip for damage; replace damaged hardware as needed.

This service tech sheet is the factory diagnostic guide that helps troubleshoot and verify appliance components. It provides clear reference information technicians use to identify wiring, error codes, and common diagnostic steps for repairs. What it does:

• Shows factory wiring diagrams and component locations for quick reference during diagnosis
• Lists common error codes and troubleshooting checks to narrow down failures
• Provides step-by-step diagnostic guidance technicians use to confirm faulty parts
• Helps reduce guesswork when an appliance won't power on, shows error codes, or has intermittent operation

• This is a reference document, not a wearable or electrical component; store it in a dry, accessible place near the appliance
• Always disconnect power to the appliance before performing any testing or repairs suggested by the sheet
• Follow all safety guidance and manufacturer procedures shown on the sheet; use protective equipment as required
• Replace the sheet if damaged or illegible to ensure accurate diagnostics

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
