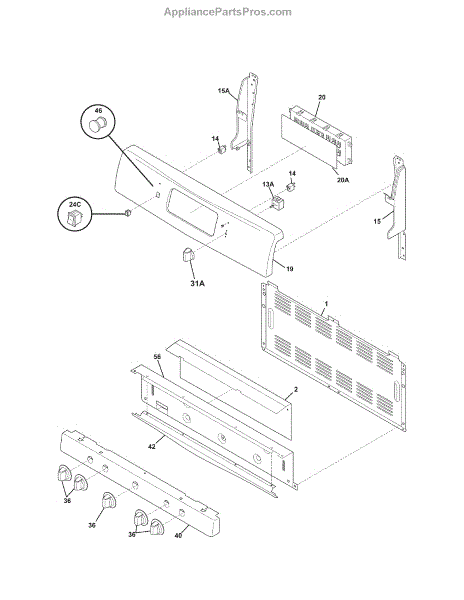

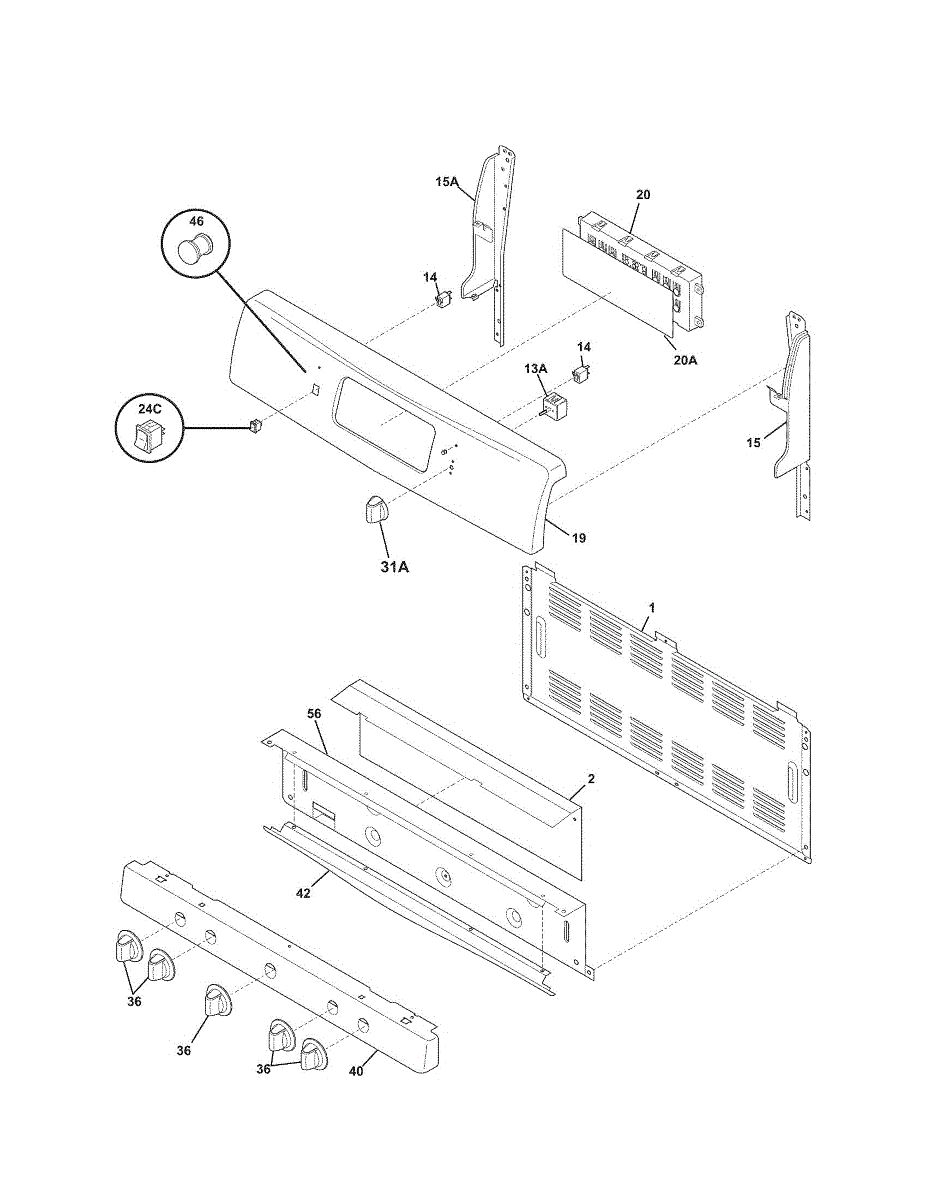

Parts for Kenmore 790.77482800 (79077482800, 790 77482800): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

This is a bisque-colored left-side support bracket that mounts to the backguard area of the range. It provides structural support for the shelf or trim along the back of the cooktop. Replace this bracket if it is cracked, broken, or missing, which can cause the backguard trim or shelf to sit unevenly or come loose.

Decorative overlay that fits over your range's control panel touch pad. Replace if cracked, peeling, faded, or worn to restore appearance and readability.

The range oven control board regulates oven temperature, timing, and cooking functions through electronic controls. Replace when the oven won't heat properly, displays error messages, or temperature settings become inaccurate.

Graphic label overlay for your electric range control panel. Replaces worn, peeling, or cracked original to restore clear button legends and a clean finish.

This is a black control panel overlay that attaches to the front of the range or oven, providing the printed labels and graphics for the clock, timer, and oven function buttons. It sits over the electronic control panel and gives the controls a finished appearance. Replace this overlay if the printed text is faded, peeling, worn away, or if the panel surface is cracked or damaged.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

This is a control knob designed to fit over the top burner valve stem on a gas range cooktop. It allows you to turn the surface burner on and off and adjust the flame height. Replace this knob if it is cracked, worn, or the indicator markings have faded, or if the knob spins freely without engaging the valve.

Replace your worn, cracked, or missing range touch pad panel. This control interface panel installs on the front console to restore button functionality.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

Service tech sheet for your range. Provides technical specifications, wiring diagrams, and troubleshooting information for service technicians.

A printed repair parts list that provides exploded diagrams and part numbers to help identify components for service and ordering. Useful for DIY repairs and reference to locate replacement parts. What it does:

• Shows exploded views and part callouts so you can visually identify the right replacement.
• Lists OEM part numbers to simplify ordering and reduce returns.
• Helps diagnose which component to replace when symptoms like leaks, noises, or failures occur.
• Serves as a reference during disassembly and reassembly to ensure correct part placement.

• This is a reference document, not a wearable or electrical component; no installation required.
• Keep the booklet with service records and replacement parts for future maintenance.
• Handle pages carefully to avoid tearing; store in a dry place.

Replacement paper owner's manual for your range. Includes operating instructions, care guidelines, and safety information. Needed when original is lost or damaged.

Replacement care guide and instruction manual for your range. Needed when original documentation is lost, damaged, or missing. Provides setup and usage info.

Replacement grate foot kit for gas range burner grates. Includes 8 rubber feet and adhesive. Needed when feet are missing, cracked, melted, or worn.
