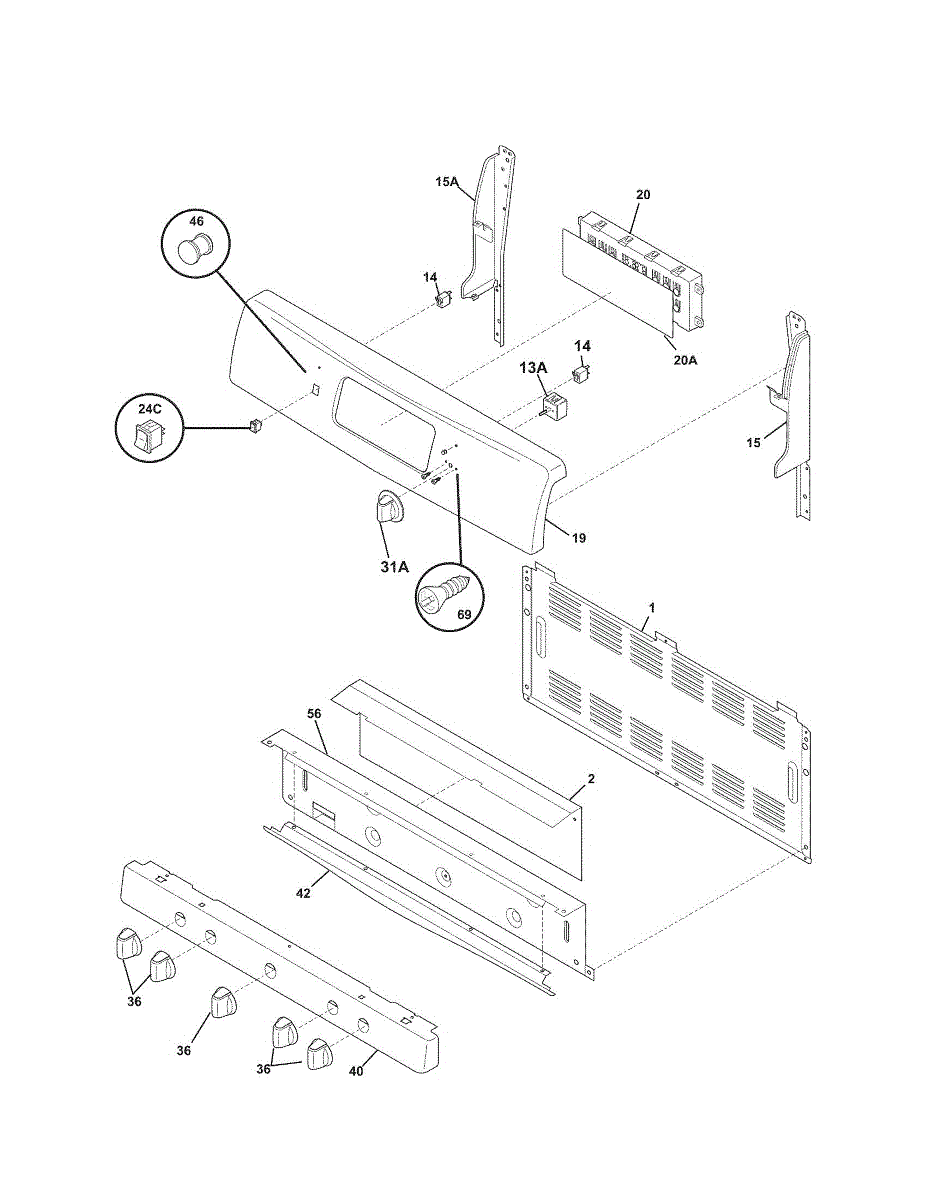

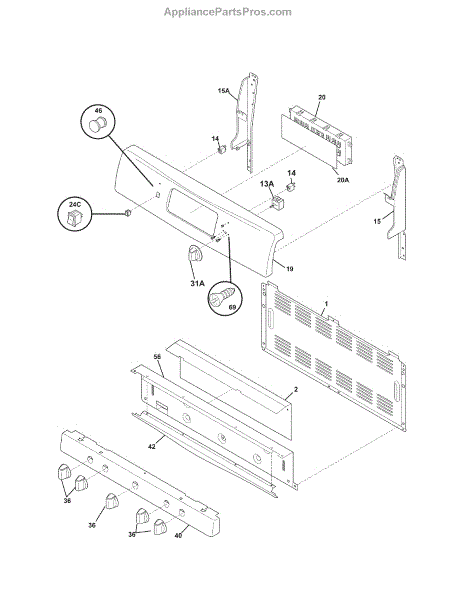

Parts for Kenmore 790.77484801 (79077484801, 790 77484801): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

Replacement endcap for electric and gas ranges. Installs on the control panel or side trim. Order if your original is cracked, broken, or missing.

Decorative overlay that fits over your range's control panel touch pad. Replace if cracked, peeling, faded, or worn to restore appearance and readability.

Graphic label overlay for your electric range control panel. Replaces worn, peeling, or cracked original to restore clear button legends and a clean finish.

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

Replace your range's surface burner control valve when the valve assembly is damaged, leaking, or won't regulate gas flow properly to one burner control.

Replace your worn, cracked, or missing range touch pad panel. This control interface panel installs on the front console to restore button functionality.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

Service tech sheet for your range. Provides technical specifications, wiring diagrams, and troubleshooting information for service technicians.

This repair parts list is a printed service sheet that helps identify factory part names and numbers for repairs and ordering. Keep it with your appliance or service records to speed parts lookups and service communication. What it does:

• Shows the OEM part names and numbers for the listed appliance so you can identify needed replacements
• Provides sectional diagrams or exploded-view callouts when included, aiding part location
• Reduces ordering errors by matching the appliance's factory parts list

• This is a reference document, not a mechanical replacement part; no tools required
• Keep the sheet dry and with appliance paperwork for future service

Replacement care guide and instruction manual for your range. Needed when original documentation is lost, damaged, or missing. Provides setup and usage info.

Replacement paper owner's manual for your range. Includes operating instructions, care guidelines, and safety information. Needed when original is lost or damaged.

Replacement grate foot kit for gas range burner grates. Includes 8 rubber feet and adhesive. Needed when feet are missing, cracked, melted, or worn.
