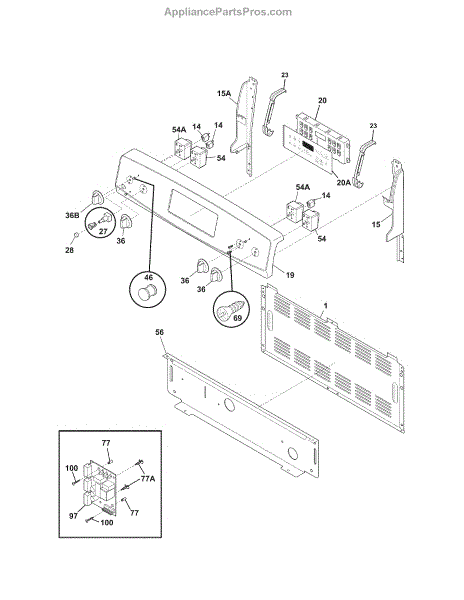

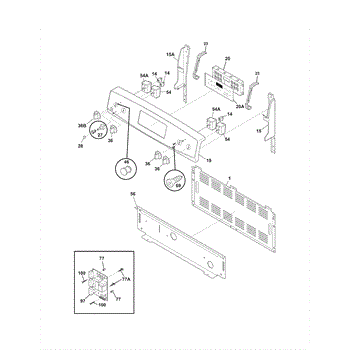

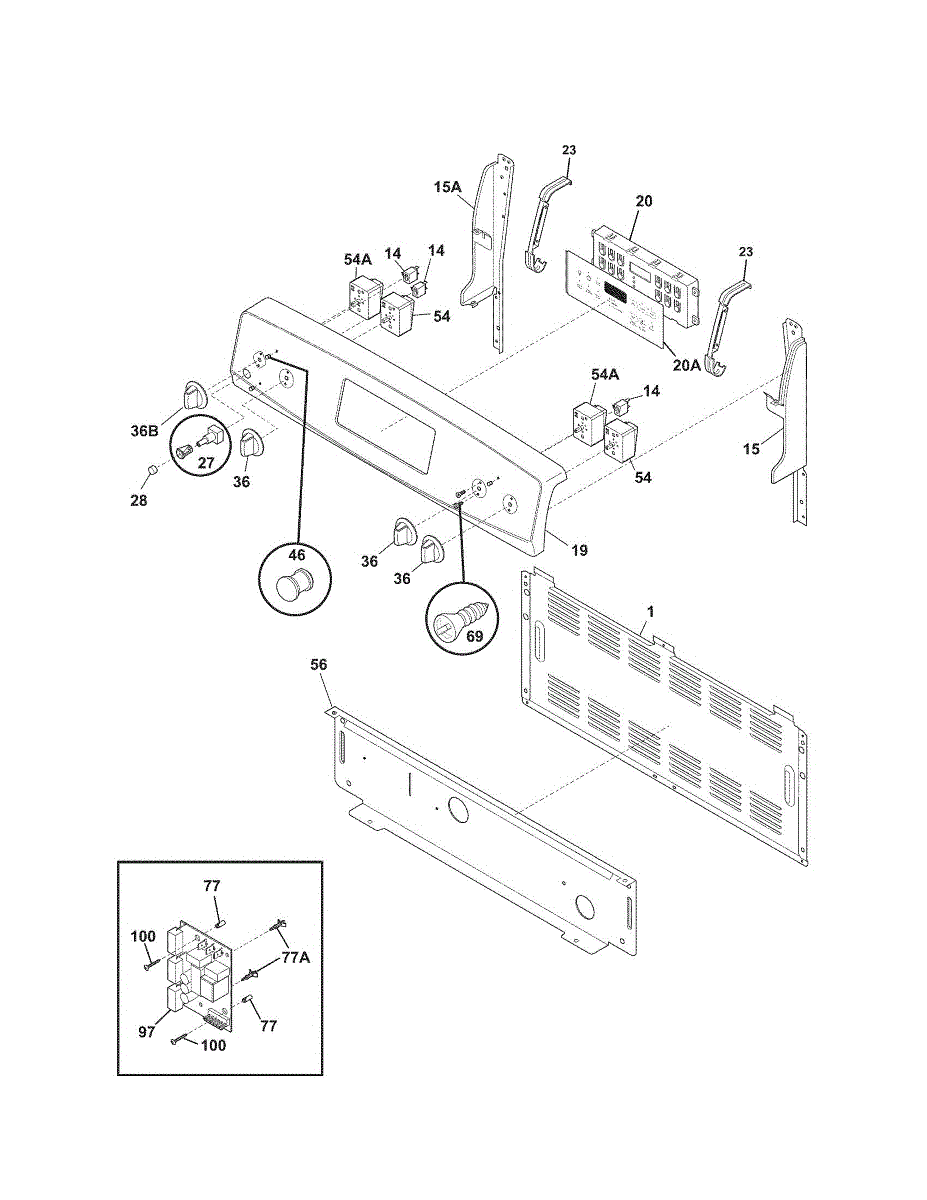

Parts for Kenmore 790.90312013 (79090312013, 790 90312013): Backguard Parts

Protective cover that shields the range door hinge assembly from debris and damage. Replace if cracked, broken, or missing to restore a clean finished look.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

Replace your electric range's touch pad control panel if it's cracked, unresponsive, or shows visible damage. Installs on the front console area.

White simmer select button for electric range control panels. Replaces cracked, broken, or missing buttons to restore appearance and functionality.

Black push button for electric range control panels. Restores appearance when original button is cracked, broken, or missing. Installs on front panel.

Color: White

Black control knob for electric range burners and oven. Replaces worn, cracked, or missing knobs. Direct fit replacement for damaged control knobs.

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

Burner won't turn off or stuck on high? This surface element switch controls heat settings for large burners. Moderate DIY with panel removal.

Replace a cracked, broken, or missing shield on your range. This protective guard component installs to safeguard internal parts from damage or wear.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Oven won't heat, wrong element activates, or temperature swings wildly? This control board regulates heating circuits and display. Moderate DIY repair.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This repair parts list is the official parts diagram and reference sheet used to identify service and replacement components. It helps technicians and DIYers find correct part locations and part numbers for servicing appliances. What it does:

• Shows exploded views and item callouts to identify individual components
• Clarifies part locations so you can verify the exact part needed before ordering
• Helps diagnose where a failed component fits in the assembly
• Reduces ordering mistakes by matching visual diagram to your unit

• This is an informational reference, not a replacement hardware component
• Keep the diagram with your appliance service records for future reference
• Use the diagram alongside model-specific manuals and OEM instructions when ordering or repairing
• For safety-critical repairs, follow OEM safety guidance

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas val

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
