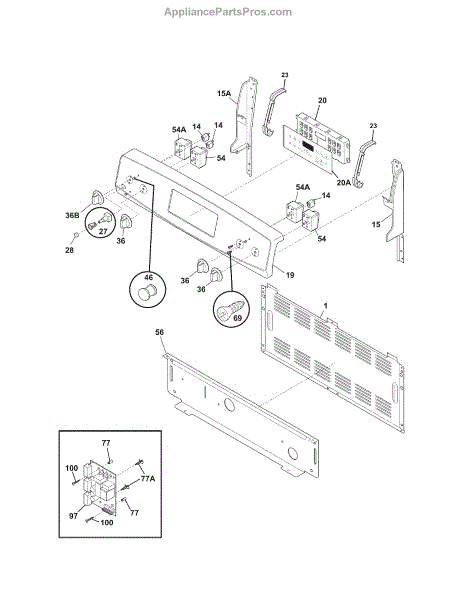

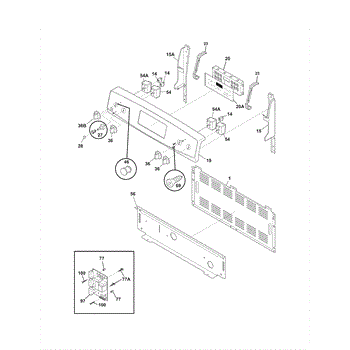

Parts for Kenmore 790.90313013 (79090313013, 790 90313013): Backguard Parts

This door hinge cover shields and protects the refrigerator hinge area from dirt and damage while giving the hinge a finished appearance. Replaces a worn, cracked, or missing cover to restore proper fit and appearance. What it does

• Covers and protects the door hinge assembly from debris and accidental contact
• Helps maintain a finished look by hiding hinge hardware and mounting fasteners
• Prevents sharp edges from being exposed, reducing snag and scratch risk
• Commonly replaced when cracked, broken, or missing after impact or wear

• One door hinge shield

• Remove power and open the door before servicing to prevent injury
• Typically installs with a few screws or clips—retain original fasteners unless replacement specified
• Handle part carefully to avoid scratching painted surfaces; align shield before tightening

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a replacement Simmer Select push button for stove/oven control panels. It restores the Simmer Select control's functionality and appearance so the range responds correctly and looks like new. What it does:

• Serves as the user-facing push button for the Simmer Select function on the control panel
• Allows selection of simmer cooking setting when the control switch behind the button is engaged
• Replaces cracked, faded, or missing buttons that stick or fail to make contact
• Helps resolve symptoms such as an unresponsive Simmer Select control, broken button cap, or cosmetic damage

• Disconnect power to the appliance before starting any repair
• Remove the control panel or console to access the button
• Install by snapping the button onto the corresponding control shaft; do not force or bend plastic retainers
• Verify proper operation before reassembling; keep small parts and fasteners secure

Color: Black

The Small Surface Element Switch is an OEM replacement part for Frigidaire electric ranges. It serves as the control knob and circuitry to safely power one of the smaller cooking elements.

Symptoms of a bad surface element switch include:

• Inability to ignite or regulate heating for its assigned zone
• Switch knob that feels loose, won't click smoothly, or won't stay set
• Intermittent or unreliable power to the smaller element coils
• Tripped circuit breakers upon use that don't reset

Causes relate to thousands of rotations wearing micro-switches and wiring terminals within the control assembly. Regular cleaning around knobs can prevent accelerated deterioration from baked-on debris conducting excess heat.

This genuine OEM replacement part is compatible with other brands including Electrolux and Kenmore as well.

The Large Surface Element Switch is an OEM replacement part for Frigidaire ranges and cooktops. It is a component that controls the power and temperature settings for one of the larger surface heating elements on the appliance.

Symptoms of a faulty Large Surface Element Switch include:

• Difficulty in adjusting or maintaining consistent heat settings
• The surface element not heating up or cycling on and off unexpectedly
• Flickering or erratic behavior of the surface element
• Burning smell or visible signs of overheating

Causes of a bad large surface element switch can include normal wear and tear, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and cooktop models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This electronic oven control board (clock/timer) is the brain of your range/oven, regulating temperature, powering the bake/broil circuits, and managing the display and keypad. Replacing it restores proper heating and responsive controls.

• Governs bake and broil circuits and maintains set temperature using oven sensor feedback
• Displays time/temperature and responds to keypad inputs
• Common failure signs: oven won't heat or start, erratic/inaccurate temps, dead or unresponsive display, repeated beeps or error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board by the edges and use anti-static precautions
• Photograph/label connectors and transfer wires one at a time to the new board
• Transfer the existing keypad overlay and any brackets as needed, reinstall panel, restore power, and test bake/broil

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

This repair parts list is a factory parts diagram and reference sheet that helps identify replacement components and part numbers for service and repairs. Use it to order the correct parts. What it does:

• Shows exploded diagrams and part callouts to locate specific components
• Lists OEM part numbers and item reference numbers used in repair manuals
• Helps parts needed for common failure symptoms and service work
• Simplifies ordering by matching physical parts to the correct part number

• This is a reference document only; it does not install on the appliance
• Keep with service records or parts orders for accurate identification
• Handle and store the sheet flat to keep diagrams legible
• If electrical or mechanical repairs are required, disconnect power and follow safety procedures.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
