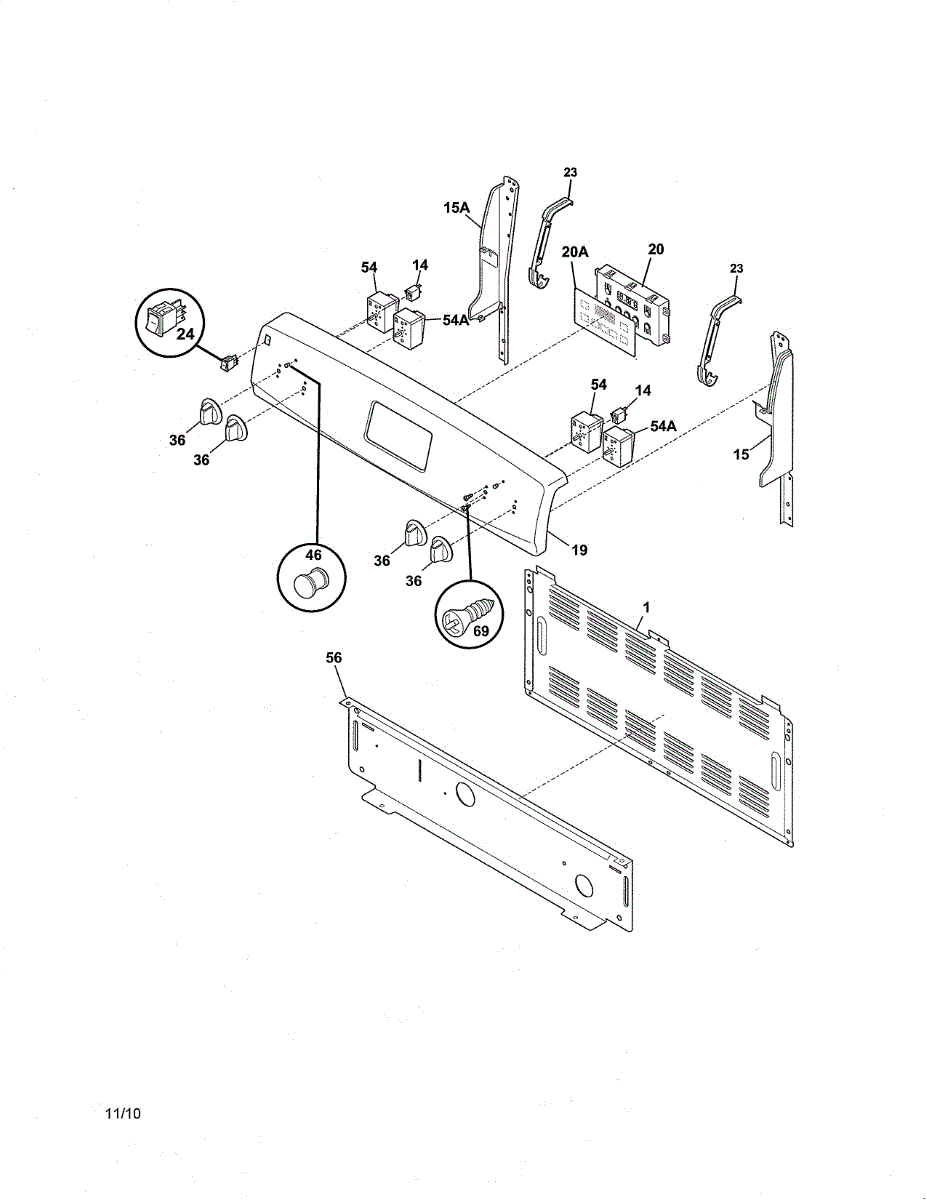

Parts for Kenmore 790.91312011 (79091312011, 790 91312011): Backguard Parts

This parts catalog is a service parts list used to identify and order replacement components for compatible appliances. It provides a consolidated reference of part numbers and diagram callouts to speed accurate ordering and repairs. What it does:

• Lists OEM part numbers and diagram callouts
• Helps diagnose which component is failing when a part is worn, broken, or missing
• Reduces ordering errors by matching part numbers to the appliance's service diagrams
• Serves as a reference for technicians and DIYers during troubleshooting and repairs

• This is a reference document, not a wearable or electrical component; no installation required
• Keep catalog with service records and model information when ordering parts
• Always check part numbers against your appliance model before ordering
• If using diagrams for repair, follow all safety precautions and disconnect power before servicing

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Push button for oven light control. Installs on control panel. Replace if cracked, worn, missing, or damaged to restore easy on/off operation of light.

Size: 8-18ab x 0.5 inch.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Wire harness for electric ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

Replacement endcap for electric and gas ranges. Installs on the control panel or side trim. Order if your original is cracked, broken, or missing.

Replace your range's touch pad control panel if the original is cracked, damaged, or unresponsive. This panel mounts to the front of your range.

Adhesive graphic overlay that labels buttons on your range control panel. Replace when worn, peeling, faded, or unreadable to restore clear keypad labels.

Adhesive label overlay for range control panels. Restores readable button legends and protects the control face. Replace when worn, faded, or damaged.

Oven won't heat but stovetop works? This control board regulates bake and broil elements, temperature settings, and timers. DIY-friendly, 10-30 minute fix.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: Almond

Color: White

Black control knob for electric range burners and oven. Replaces worn, cracked, or missing knobs. Direct fit replacement for damaged control knobs.

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Burner won't turn off or stuck on high? This surface element switch controls heat settings for large burners. Moderate DIY with panel removal.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
