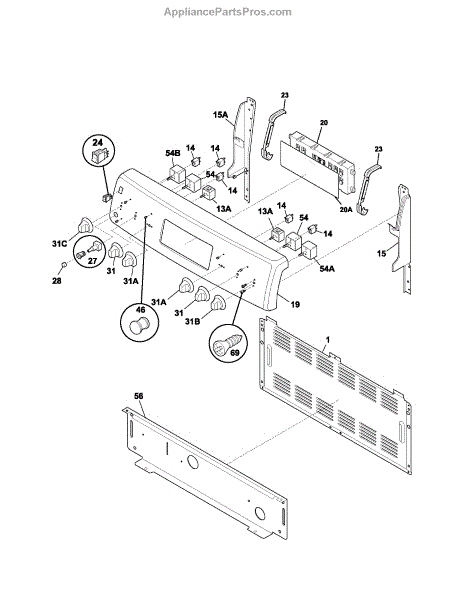

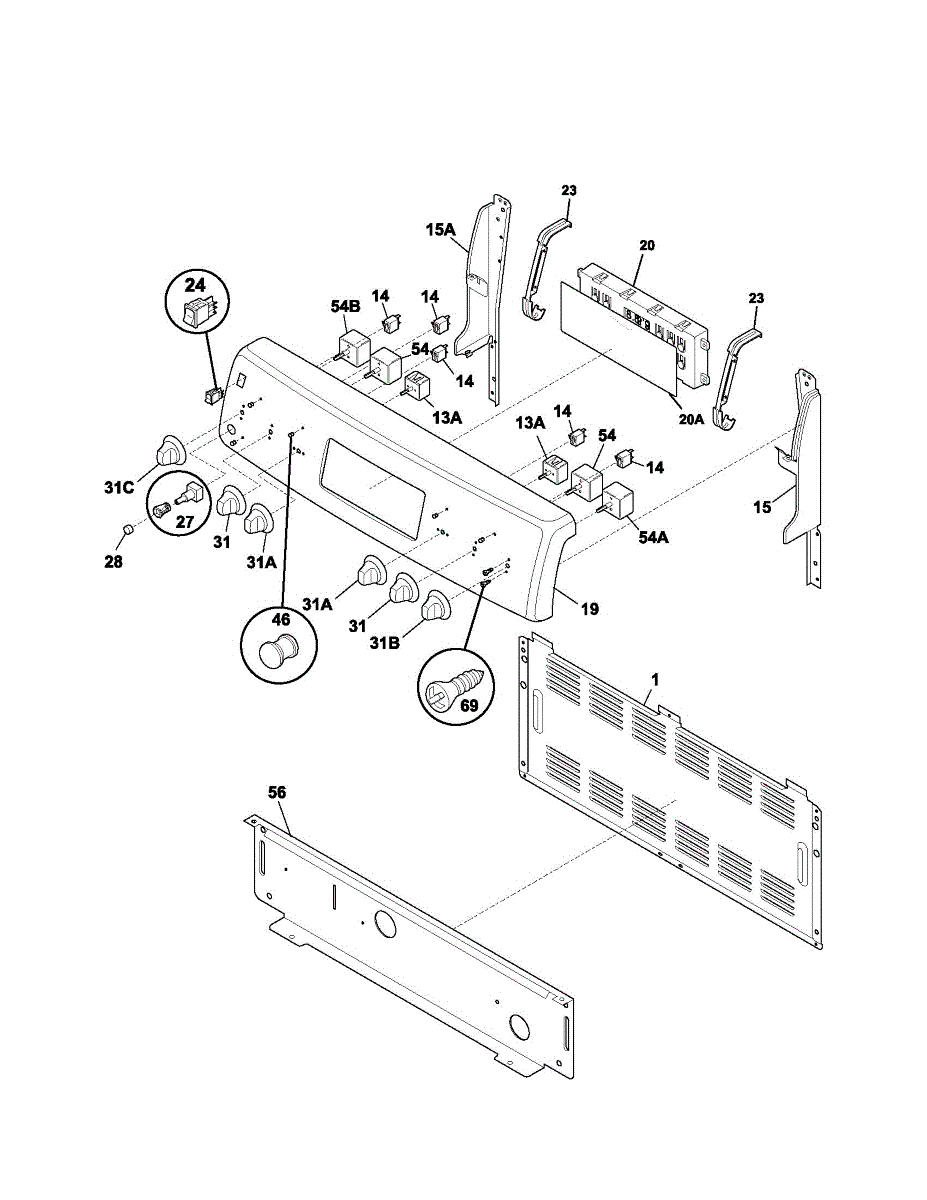

Parts for Kenmore 790.95922302 (79095922302, 790 95922302): Backguard Parts

Replace your range's backguard shield if the rear wall panel is cracked, dented, or damaged. Protects the wall behind your cooktop and covers wiring.

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

Right side backguard support bracket for ranges. Replaces cracked, broken, or missing white backguard support. Structural component for secure installation.

Color: White. This is the left side backguard support. For right side use 316220214.

Right-hand support plate for range backguard. Replaces cracked, broken, or missing mounting brackets. Secures backguard panel to range body.

This black control panel is the exterior user interface for your range or oven, restoring the surface that holds the touchpads, buttons and display for normal operation and a finished appearance. What it does:

• Replaces a cracked, faded or damaged control panel to restore the appliance's front appearance.
• Provides the mounting surface and openings for the control board, touchpads/buttons and display lens.
• Helps prevent debris and moisture from reaching internal controls when properly installed.
• Common symptom: buttons that stick, cosmetic damage, or visible cracks in the console area.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Remove the back or top of the console as required; take care with attached ribbon cables and connectors.
• Use appropriate hand tools and keep fasteners; some panels secure with clips and screws that must be reinstalled.

Black clock touch pad overlay for ranges. Replaces worn, faded, cracked, or peeling control panel overlays. Restores appearance and functionality.

This board does not include the touch pad overlay sticker. Order separately if needed.

Mounting bracket that secures the clock assembly to your range control panel. Replace if the original is bent, broken, or missing during clock repairs.

White simmer select button for electric range control panels. Replaces cracked, broken, or missing buttons to restore appearance and functionality.

Black push button for electric range control panels. Restores appearance when original button is cracked, broken, or missing. Installs on front panel.

Black control knob for electric range selector, timer, or temperature shaft. Replace worn, missing, or broken knobs. Simple push-on fit with textured edge.

Protects and diffuses your range's indicator light that signals when burners are on or surfaces are hot. Replace if cracked or missing. Easy install.

Range burner not heating or temperature won't adjust? This surface element control switch regulates heat output. Moderate DIY repair in 30-45 minutes.

Burner won't turn off or stuck on high heat? This surface element control switch restores proper temperature control. Easy DIY repair in under an hour.

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

Replace a cracked, broken, or missing shield on your range. This protective guard component installs to safeguard internal parts from damage or wear.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Owner's manual and care guide for your electric range. Replace lost or damaged instructions to access operating procedures, maintenance tips, and safety information.
