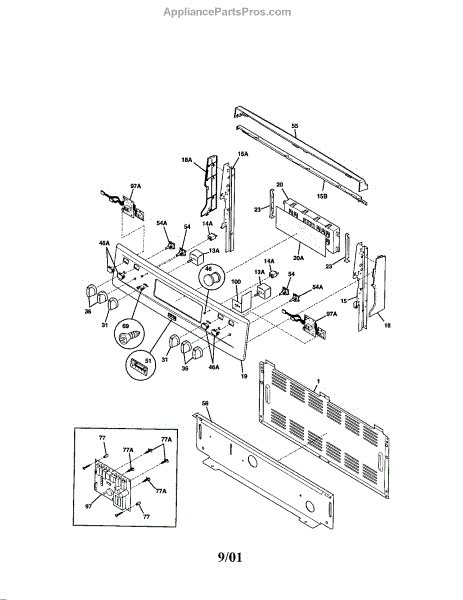

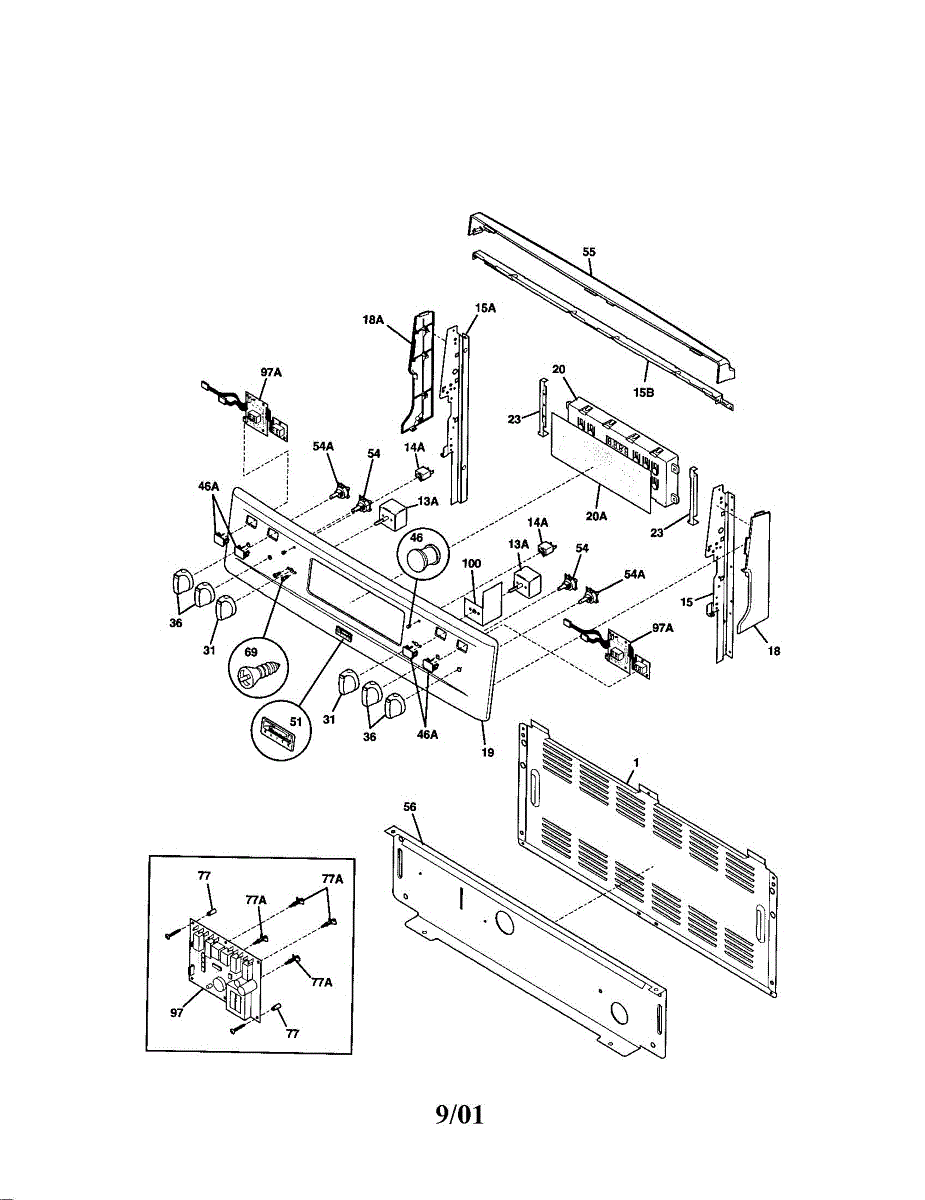

Parts for Kenmore 790.99012100 (79099012100, 790 99012100): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

This electronic control board manages all oven functions including temperature, timing, and cooking modes. Replace it if the oven won't heat, displays error codes, or controls become unresponsive.

Replace your range's control knob if it's cracked, broken, or missing. This knob installs on the control panel to operate burners or oven settings.

This clear cover protects the digital display and is located on the range's control panel. Replace it if the display appears dim or unclear, the lens is cracked, or you can't read the digital readout properly.

Protects and diffuses your range's indicator light that signals when burners are on or surfaces are hot. Replace if cracked or missing. Easy install.

Fixes burner that won't shut off or heat properly. This infinite switch controls cooktop element temperature. Moderately easy DIY repair.

Fix a burner that won't turn off or heat properly with this dual infinite switch. Controls both inner and outer element rings. Moderate DIY repair.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This switch insulator cushions and isolates the control switch from the appliance chassis, helping prevent shorts and ensuring stable switch mounting for reliable control operation. It's a simple replacement to restore safe electrical separation. What it does:

• Electrically isolates the control switch from metal panels to help prevent short circuits.
• Holds and positions the switch for correct actuator alignment and reliable operation.
• Protects the switch body from wear and vibration.
• Can help address intermittent or unstable switch behavior caused by a damaged or missing insulator.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing the control panel or console—keep track of screws and fasteners.
• Inspect the switch and mounting hardware; replace any damaged clips or screws for secure fit.

Wiring diagram for your range. Shows electrical connections and circuit layout. Replacement needed if original is lost, damaged, or unreadable.

Replacement owners manual for your range. Includes operating instructions, care guidelines, and safety information. Needed when original is lost or damaged.

Size: 8-18ab x 0.5 inch.

Size: 10-32 x 0.312 inch. Color: Black.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
