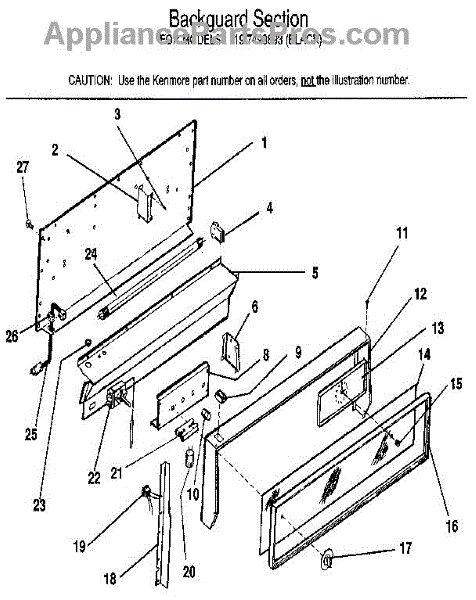

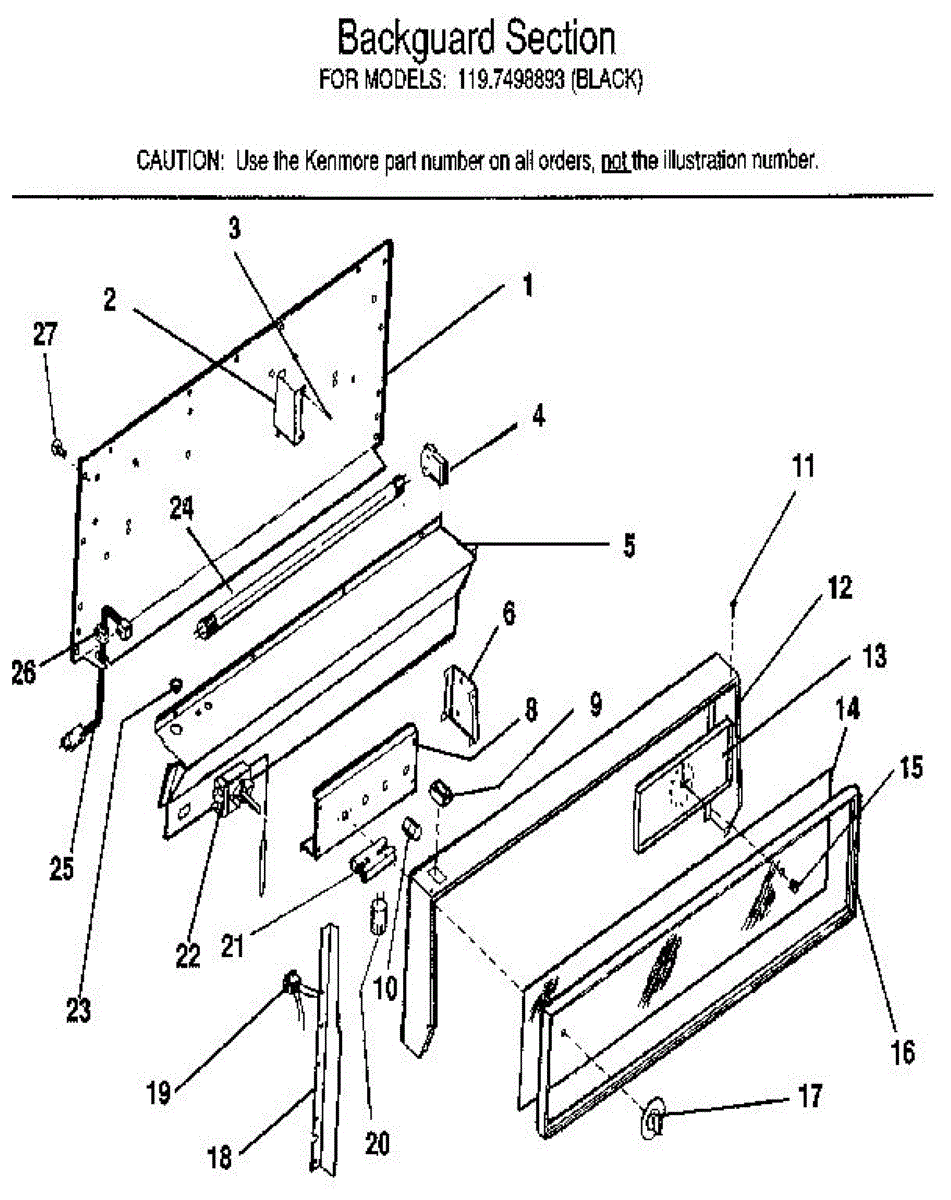

Parts for Kenmore 119.7498893 (1197498893, 119 7498893): Backguard Section Parts

This part has been discontinued by the manufacturer and is no longer available.

This decorative door trim restores the finished look around a range or oven door and hides gaps or mounting hardware for a clean appearance. It's a direct-fit replacement that helps maintain your appliance's original styling. What it does:

• Covers and protects the edge of the oven/range door for a finished appearance
• Hides exposed screws, gaps, or worn factory edges
• Helps prevent dirt buildup around the door perimeter
• Useful when original trim is cracked, dented, or missing

• One decorative door trim

• Remove power to the appliance and allow surfaces to cool before beginning
• Installation typically requires removing the door or outer panel to access fasteners
• Keep all screws and mounting clips to reinstall the trim securely

This snap bushing is a push-in grommet that secures and protects wiring where it passes through sheet metal openings, helping prevent wire chafing and wear. It's a simple replacement that restores proper wire routing and protection. What it does:

• Holds wiring or harnesses in place at panel openings to prevent rubbing and abrasion
• Cushions wires against sharp edges to reduce the risk of wire damage and shorts
• Maintains correct wire routing to prevent pinching when panels are reassembled
• Common symptom: visible chafed insulation or loose wiring at an opening

• One snap bushing (quantity: 1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Access the panel or opening where the wiring passes through; remove any retaining screws or clips as needed
• Press the bushing into the hole until it snaps fully into place, then route the wire through the center
• Inspect surrounding wire insulation and replace or repair any damaged wiring before reassembly

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Reflector plate for ranges. Installs beneath burners to direct heat and protect components. Replace if cracked, warped, discolored, or missing.

Anti-tip bracket mounts to the floor behind your range to prevent tipping when weight is applied to the open door. Replace if bracket is missing or damaged.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Anti-tip bracket secures your range to the wall or floor, preventing forward tipping. Replace if bracket is bent, broken, or missing during installation.
