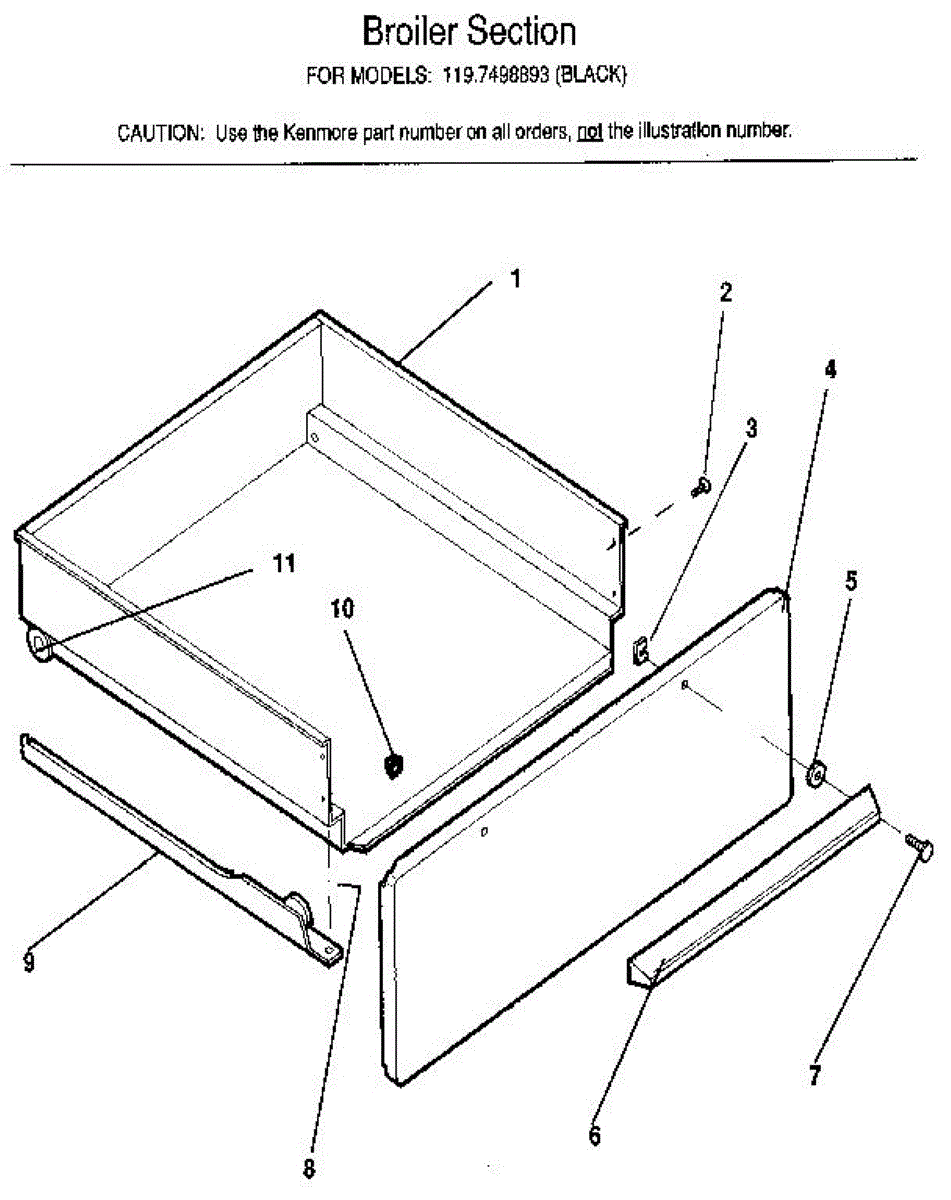

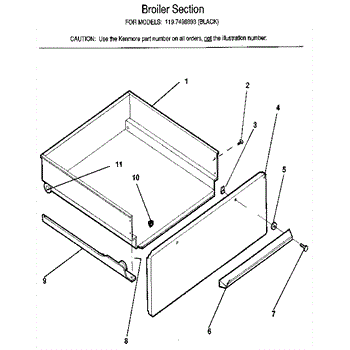

Parts for Kenmore 119.7498893 (1197498893, 119 7498893): Broiler Section Parts

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

Oven rack slide track that guides oven racks in and out smoothly. Replace if your track is bent, broken, or damaged causing racks to stick or wobble.

Replacement roller for oven storage or warming drawers. Needed when drawer wheels are cracked, broken, or missing causing difficulty opening or closing.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Reflector plate for ranges. Installs beneath burners to direct heat and protect components. Replace if cracked, warped, discolored, or missing.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Anti-tip bracket mounts to the floor behind your range to prevent tipping when weight is applied to the open door. Replace if bracket is missing or damaged.

Anti-tip bracket secures your range to the wall or floor, preventing forward tipping. Replace if bracket is bent, broken, or missing during installation.
