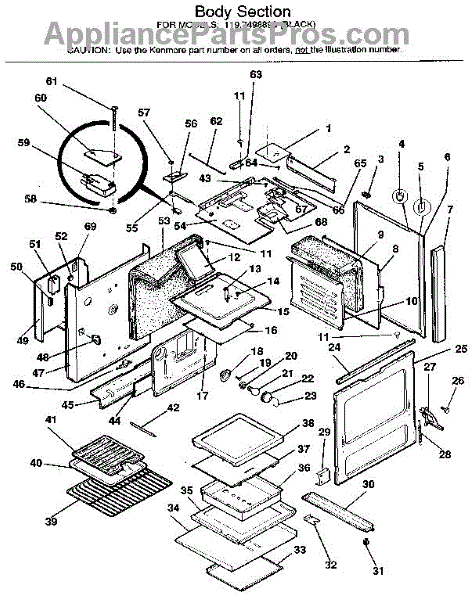

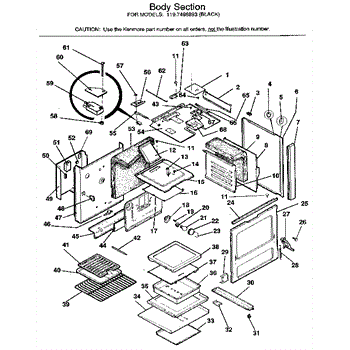

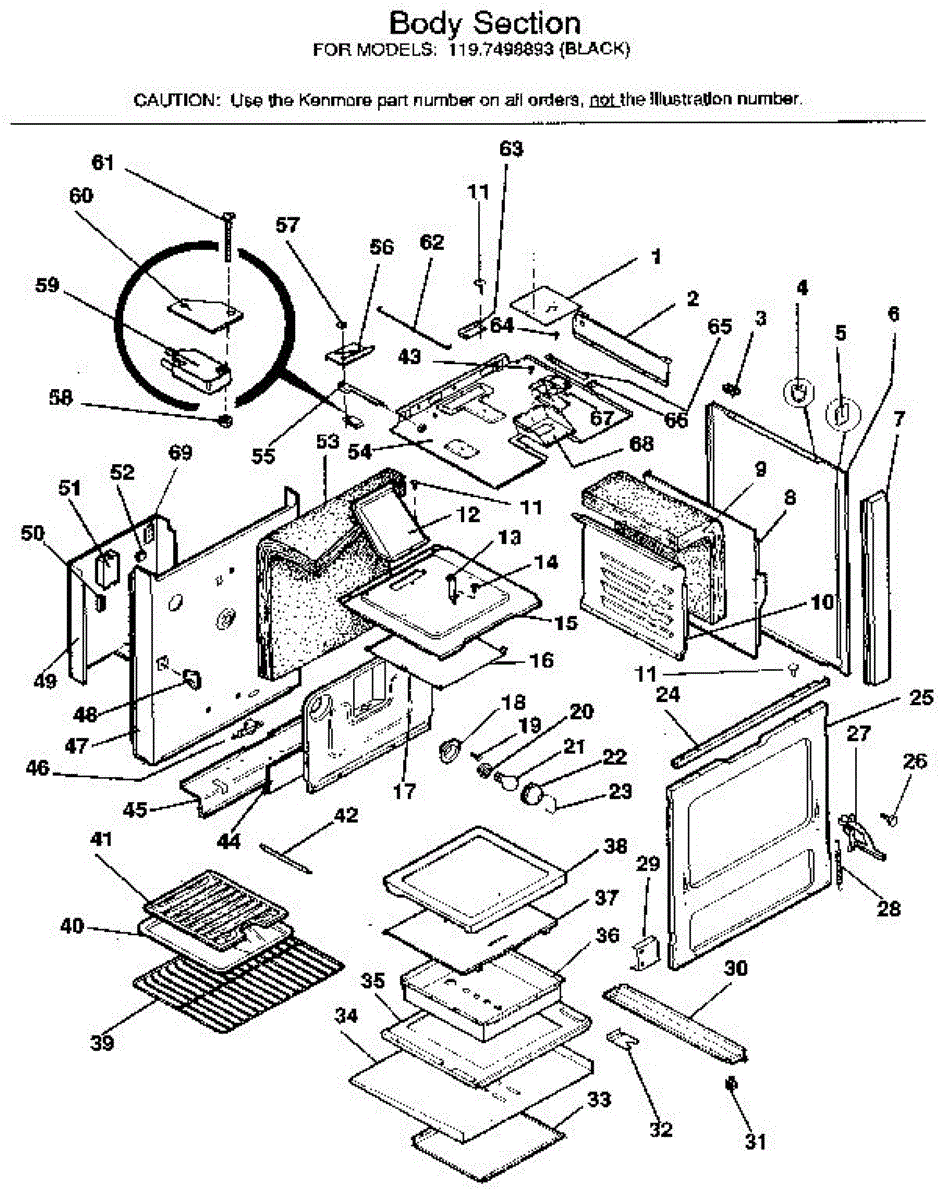

Parts for Kenmore 119.7498893 (1197498893, 119 7498893): Body Section Parts

This part has been discontinued by the manufacturer and is no longer available.

Left body side shield for ranges. Protects the side panel of your range from heat and damage. Replace if cracked, bent, or missing to restore protection.

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

This part has been discontinued by the manufacturer and is no longer available.

Replacement flame spreader baffle for gas ranges. Installs over the burner to distribute heat evenly. Order a new baffle if yours is cracked or missing.

This part has been discontinued by the manufacturer and is no longer available.

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This part has been discontinued by the manufacturer and is no longer available.

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replaces a broken, worn, or damaged oven door hinge on your range. Allows the door to open and close smoothly. Order if your hinge is cracked or bent.

Tension spring provides counterbalance for smooth oven door operation. Replace if worn, broken, or missing to restore controlled opening and closing.

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

Anti-tip bracket secures your range to the wall or floor, preventing forward tipping. Replace if bracket is bent, broken, or missing during installation.

This metal panel forms the floor of the oven cavity and protects internal components from spills and heat damage. Positioned at the bottom of the oven interior, replace it if the panel warps, develops holes, or shows extensive corrosion or damage.

This terminal block secures and connects incoming power wires to the appliance's internal wiring, restoring a reliable electrical connection for safe operation. Fits applications that use a 3-terminal power connection. What it does:

• Provides a durable connection point for incoming line, neutral and ground conductors
• Replaces damaged, cracked or loose terminal points that can cause intermittent power or burning smell
• Secures wiring to the heating element or control harness to maintain consistent power delivery
• Helps prevent arcing or poor contact from worn terminals when installed correctly

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Verify wiring colors and terminal positions before removal; take a photo for reference
• Use appropriate insulated tools; tighten terminal screws securely but avoid over-torquing
• If corrosion or damaged wiring is present, replace affected wires or connectors as needed

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

This part has been discontinued by the manufacturer and is no longer available.

This replacement nut secures threaded fasteners on compatible Frigidaire appliances to hold panels and components in place. It restores proper fastening where a stripped, missing, or damaged nut causes loose parts or noise. What it does:

• Secures bolts and studs to keep panels, brackets, and components mounted firmly
• Prevents fasteners from backing out and reduces vibration-related noise
• Common symptom: loose or rattling panels or components near the fastener location
• Replaces corroded, rounded, or stripped nuts to restore reliable fastening

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct wrench or socket to avoid rounding the nut; match thread and size exactly
• Tighten snugly but avoid overtightening to prevent stripped threads or warped components
• If threads are damaged, replace both the nut and the mating bolt/stud for a secure fit

Support rod that holds the cooktop top in place. Replace this structural pin if the original is broken, bent, or missing to properly secure the top.

A replacement support rod bracket that secures the refrigerator/freezer support rod to the cabinet, restoring proper door support and alignment for smooth opening and closing. Designed to match OEM fit and function. What it does:

• Holds the end of the door support rod in place to keep the door properly supported
• Prevents the support rod from slipping or detaching during normal use
• Helps restore correct door alignment and reduce sagging or uneven closing
• Works with the matching support rod and mounting hardware to maintain stable operation

• Inspect the support rod and mounting area for damage; replace any additional worn parts for a complete repair
• Remove power to the appliance and empty the door area before beginning work for safety
• Typically secures with existing screws or clips; keep original fasteners unless replacements are provided

Reflector plate for ranges. Installs beneath burners to direct heat and protect components. Replace if cracked, warped, discolored, or missing.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Anti-tip bracket mounts to the floor behind your range to prevent tipping when weight is applied to the open door. Replace if bracket is missing or damaged.

Anti-tip bracket secures your range to the wall or floor, preventing forward tipping. Replace if bracket is bent, broken, or missing during installation.
