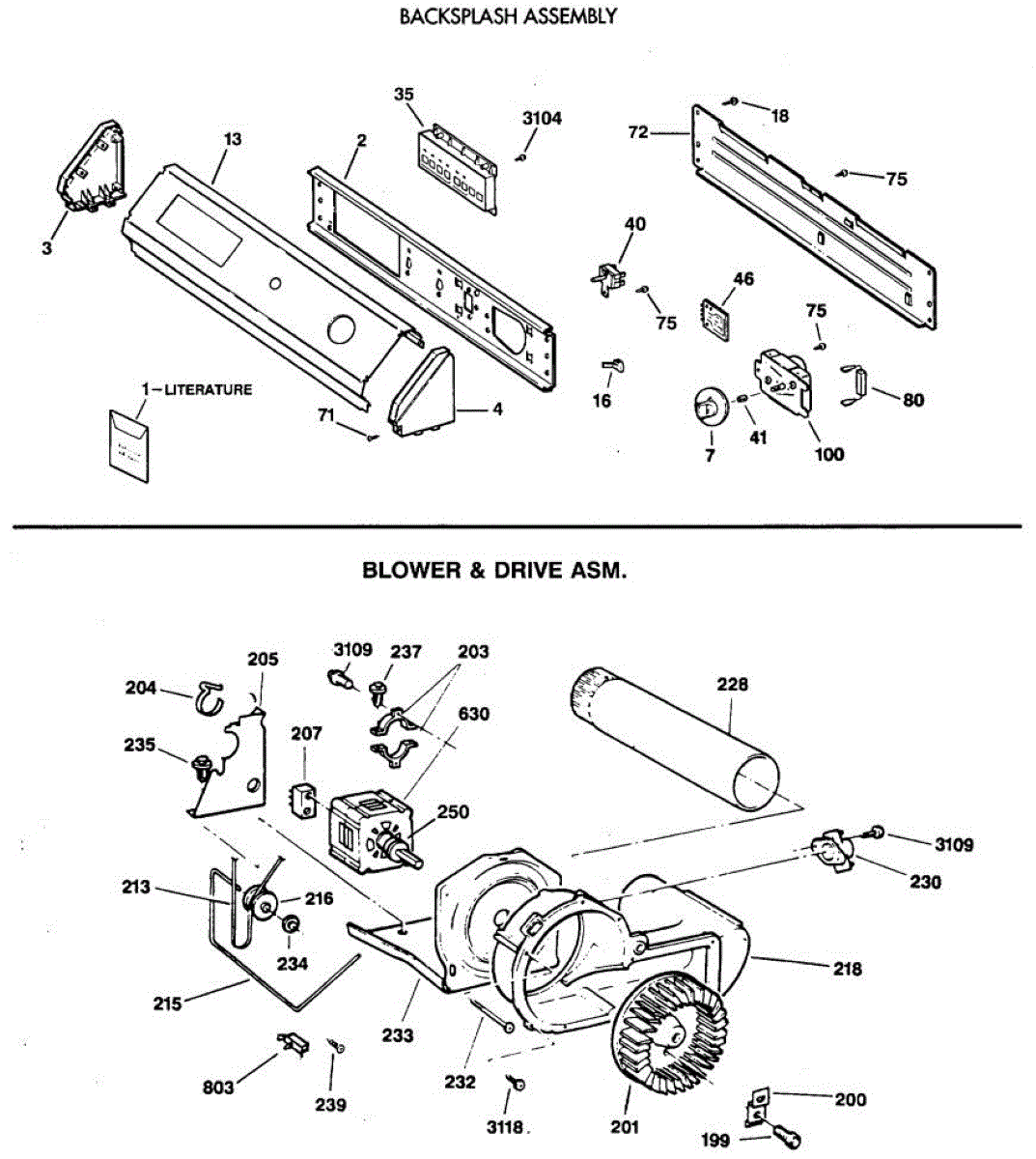

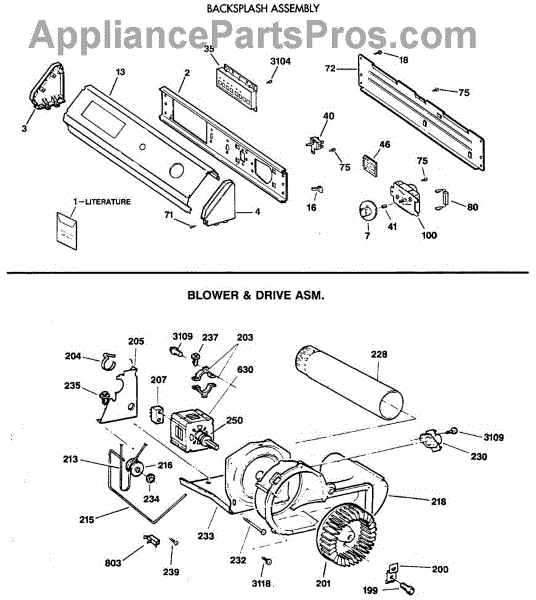

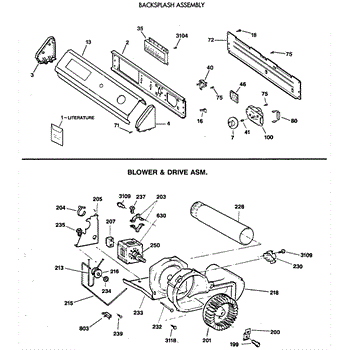

Parts for Ge DDE8505SBMWW: 02 - Backsplash Assembly Parts

This part has been discontinued and is no longer available.

The Timer Knob is an OEM part for GE dryers. It is a component that allows users to select and control the drying cycles and settings on their dryer. Designed with durability and ease of use in mind, this knob fits directly onto the timer shaft, providing a reliable interface for setting the dryer's timer.

Over time, the timer knob can become worn or damaged due to frequent use or accidental impacts. A malfunctioning knob may not engage properly with the timer shaft, making it difficult or impossible to set the dryer cycle.

Symptoms of a bad Timer Knob include:

• Difficulty in turning the knob or setting the dryer timer
• The knob slipping or failing to engage with the timer shaft
• Cracks or breakage on the knob itself

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

This electromechanical timer assembly controls cycle timing for compatible GE ranges and ovens, restoring accurate cook cycles and timer functions. It replaces a worn or non-advancing control to help your appliance complete timed operations reliably. What it does:

• Advances and times cooking cycles so bake, broil and self-clean operations run to completion
• Restores timer and manual cycle control when the original timer stops advancing
• Helps resolve symptoms like no timer display, oven cycles that won't start or stop on schedule, or intermittent timing failures
• Works as the user-accessible timing control for front-panel settings

• Disconnect power to the appliance before beginning service to avoid shock hazard
• Access may require removing the range/oven control panel or console; keep fasteners and trim for reassembly
• Handle connectors carefully and match wiring/location during reinstallation

Size: 14-10 a.

The GE clamp and screw kit is an OEM replacement part responsible for securing the dryer blower wheel in place. This kit consists of two clamps and a screw, designed to ensure the blower wheel remains firmly attached to the motor shaft. The clamp maintains the blower wheel's stability and prevents it from coming loose during the drying process. The blower wheel creates the airflow necessary to circulate hot air and efficiently dry clothes.

Over time, clamps and screws can become loose or corroded due to regular use, vibrations, or exposure to moisture. Improper handling during maintenance or repairs can also lead to damage or loss of these small but essential parts.

Symptoms of a bad Clamp and Screw Kit include:

• Loose or rattling components within the dryer
• Parts becoming misaligned or detached
• Unusual noises during dryer operation
• Difficulty in securing dryer parts during repairs

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Blower Wheel is an OEM replacement part for GE dryers. It has a role in the air circulation within the dryer, aiding in the even and efficient drying of clothes. The blower wheel, connected to the motor, helps in expelling the moist air out of the dryer through the exhaust vent during the drying cycle.

Causes of a malfunctioning blower wheel are typically wear and tear from regular use, the accumulation of lint or debris, or damage to the wheel’s fins or central hub, which can impact its rotation and air circulation capability.

Symptoms of a bad Blower Wheel include:

• Unusual noises during operation
• Extended drying times
• The dryer overheating
• Reduced air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

This motor support is the stamped metal bracket that secures the dryer motor and blower assembly, keeping components aligned for smooth operation. It restores proper motor mounting and reduces noise from loose or misaligned parts. What it does:

• Holds the dryer motor and blower housing in the correct position to prevent wobble or misalignment
• Helps maintain proper blower alignment for effective air movement
• Supports safe, reliable motor operation when the original bracket is bent, cracked, or worn

• Disconnect power (unplug electric or shut off gas and breaker) before beginning repair
• Access requires opening the dryer cabinet and removing the drum and/or front panel on many models
• Inspect related components (motor mounts, blower wheel, idler, belt) and replace if damaged

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

The Dryer Drive Belt is an OEM part for GE dryers that connects the motor to the drum, allowing the drum to rotate during the drying cycle. The belt measures approximately 87 inches long and 0.25 inches wide, with 4 ribs.

Over time, the Dryer Drive Belt can wear out or break, leading to the drum not turning.

Symptoms of a bad Dryer Drive Belt include:

• The drum not spinning or rotating
• A squealing or thumping noise coming from the dryer
• The dryer stopping unexpectedly during a cycle

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM part for GE dryers. This critical component helps to maintain the correct tension on the dryer's drive belt, ensuring smooth operation and preventing it from slipping.

Symptoms of a bad Idler Pulley include:

• Squeaking or screeching noises during dryer operation, often a sign of bearing wear or failure.
• The dryer drum not turning smoothly, or at all, indicating that the belt may be slipping or has come off entirely due to a failed pulley.
• Excessive heat or a burning smell, which can occur if the pulley is seizing up and causing friction.
• Visible wear or damage to the pulley itself.

Causes of a bad idler pulley can include worn bearings, accumulation of lint and debris that impedes rotation, or material fatigue after prolonged use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This exhaust duct routes hot, moist air from the appliance to the home vent, helping maintain proper airflow and reduce lint buildup. It's a direct-fit replacement designed to restore correct venting and appliance performance. What it does:

• Channels exhaust air from the appliance to the external vent.
• Helps prevent reduced airflow that can lengthen cycle times or reduce drying/heating performance.
• Reduces lint accumulation in the appliance exhaust path when intact and properly connected.
• Replaces damaged, crushed or disconnected ducting that can cause air leakage or poor venting.

• Disconnect power to the appliance (and shut off gas supply for gas models) before starting.
• Use gloves to avoid sharp edges; secure connections with the original clamps or equivalent fasteners.

This is a genuine GE replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. A simple fastener that helps keep assemblies aligned and functioning safely. What it does:

• Secures panels, brackets, and small components in place
• Prevents noise from loose parts and maintains structural alignment
• Restores proper fastening after repairs or wear
• Matches OEM fit for reliable replacement

• Disconnect power to the appliance before accessing internal parts
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to prevent damage
• Replace any damaged or missing fasteners with the same OEM part for best results

This ground screw secures the appliance chassis ground connection to the cabinet, restoring a reliable earth path for safe operation and reducing risk of electrical faults. Simple replacement keeps electrical components properly grounded. What it does

• Secures the ground wire or grounding strap to the appliance chassis to maintain a safe earth connection.
• Restores proper grounding when the original screw is missing, loose, or corroded.
• Helps prevent intermittent power/grounding issues and reduces risk of electrical arcing at the chassis connection.
• Works wherever a dedicated grounding point is required on the cabinet or frame.

• Single ground screw

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical connections.
• Verify chassis is de-energized and wear appropriate PPE when working on electrical parts.
• Use the correct driver bit and size to avoid stripping the screw; tighten securely but avoid over-torquing.
• Replace corroded grounding hardware and ensure the ground wire/strap has clean metal-to-metal contact.

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

This motor drive pulley guides the dryer drive belt and helps transfer motor power to the drum for proper rotation. Replacing a worn or damaged pulley restores smooth drum movement and reduces noise. What it does:

• Guides and supports the drive belt so the drum turns evenly
• Maintains belt alignment to prevent slipping or excessive wear
• Reduces squealing or grinding caused by a damaged pulley bearing
• Helps restore normal tumbling when the drum drags or hesitates

• One motor drive pulley

• Disconnect power to the appliance before any service; follow lockout/tagout best practices
• Inspect the drive belt and bearings while replacing the pulley; replace worn belt or bearings as needed
• Typical service requires basic hand tools and access to the dryer cabinet or motor housing

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

A replacement screw used to secure panels and components in compatible GE appliances. Replacing missing or damaged screws restores secure mounting, reduces rattling, and helps keep parts aligned during normal operation. What it does:

• Fastens panels, trim, brackets, or small appliance components to maintain proper alignment and fit.
• Keeps internal parts secured to reduce vibration, rattling, or movement during use.
• Replaces stripped, rusted, or missing hardware that can cause loose or misaligned panels.
• Small, non-electrical part — does not affect electrical circuits or controls.

• Disconnect power and unplug the appliance before accessing internal parts.
• Use the properly sized screwdriver to avoid stripping the head; hand-start threads to prevent cross-threading.
• Tighten securely but avoid over-torquing; overtightening can strip threads or damage plastic components.
• Keep track of small parts and hardware; replace any damaged or mismatched screws with the correct OEM part.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw
