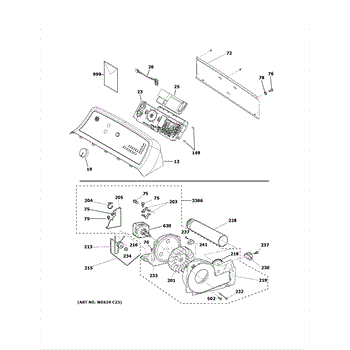

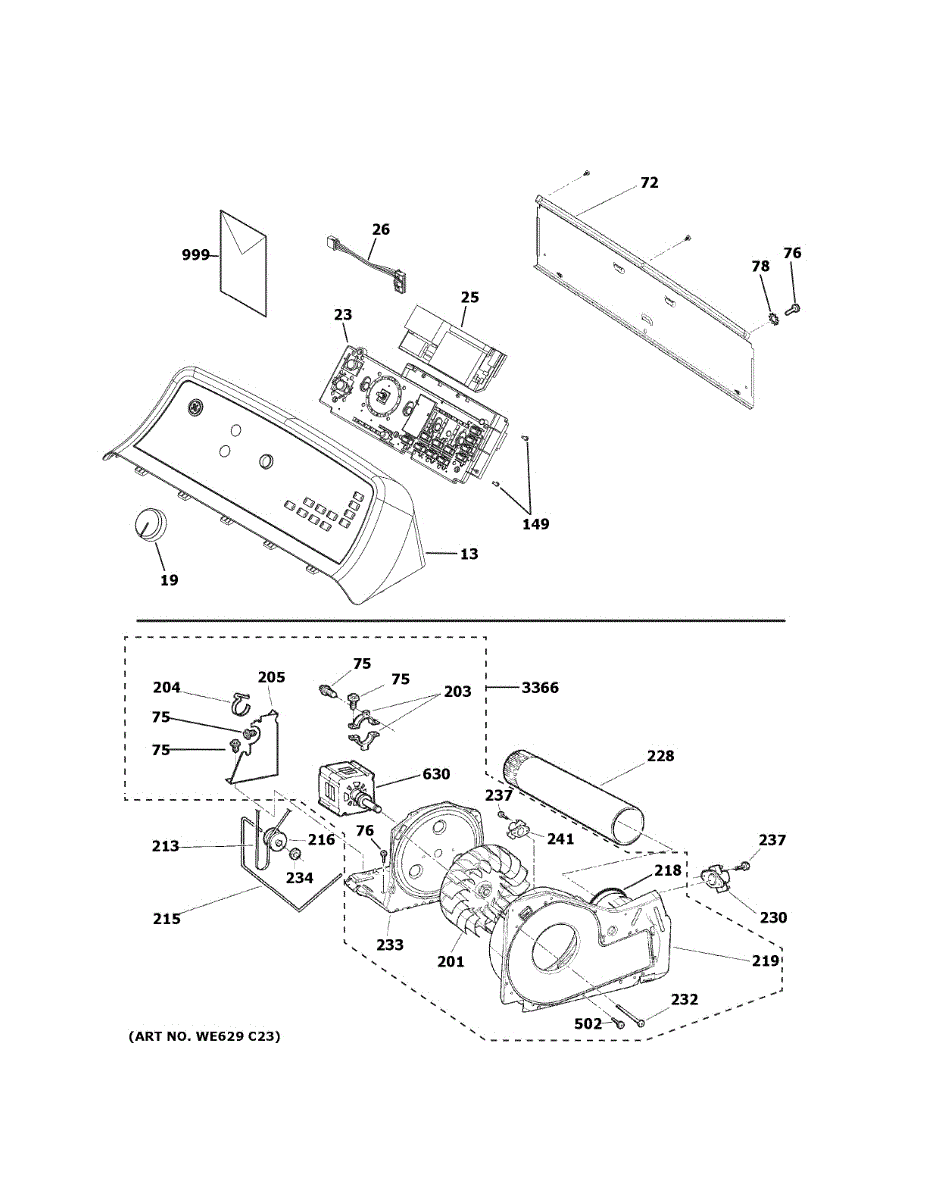

Parts for Ge GTD84ECPN0DG: Backsplash, Blower & Motor Assembly Parts

The Selector Knob is an OEM part for GE washing machines. It allows users to directly choose specific wash settings like temperature, spin speed, and soil level from the control panel interface.

Symptoms of a bad selector knob include:

• Knob inadvertently moves between positions during washing
• Settings do not stay firmly engaged and jump to different options
• Illegible or faded lettering obscuring chosen temperature/settings
• Difficult, grinding, or inconsistent movement-making selection challenging

Causes can be repeated rotational use over cycles causing wear, or loose, corroded mounting points compromising secure fitting.

This GE OEM replacement selector knob ensures reliable cycle programming. Compatible with some Hotpoint, RCA, and Kenmore models as well, it maintains convenient setting adjustment.

The Chassis and Board Assembly is an essential OEM part specifically designed for GE dryers. Housing the electrical control center guides overall operation.

Causes of a bad chassis and board can include moisture intrusion over several years, shorts from worn insulation, or simple component failures within the circuitry.

Symptoms of a faulty chassis and board assembly include:

• Intermittent or complete lack of operation despite correct control use
• Error codes or diagnostic flashes from failure indicators
• Inability to run specific cycles or functions as intended

This GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore models.

The GEA3 Wi-Fi communication board provides the refrigerator's wireless interface so the appliance can connect to your home network and the manufacturer's mobile services. Restores smart features like remote monitoring and alerts when the original board fails. What it does

• Enables the refrigerator to join a home Wi-Fi network for app connectivity and smart features
• Handles wireless communication between the appliance and cloud services
• Works with the appliance's main control system to send/receive settings and notifications

• One GEA3 Wi-Fi communication board (single wireless interface module)

• Disconnect power to the appliance before replacing the board to avoid shock or damage
• Handle the board as an electrostatic-sensitive device; avoid touching contacts and use ESD precautions if possible
• Reinstall per the appliance wiring diagram/service manual and secure all connectors firmly
• After installation, power the appliance and follow the manufacturer's pairing or network setup steps (may require app re-registration)

This wire harness connects the cooktop's capacitive touch control (touchpad) to the main electronic control board, restoring reliable signal and power path between the user interface and the controller. Use this harness to replace damaged or faulty wiring. What it does:

• Provides the electrical connection between the touch control assembly and the main control board.
• Restores communication so button presses and touch inputs register correctly.
• Common symptom fix: unresponsive or intermittent touch controls and control-panel communication errors.
• Prevents shorts or open circuits caused by frayed, pinched, or damaged wiring.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Handle connectors by the housings; avoid pulling on wires to prevent damage.
• Confirm connector orientation and secure locking tabs fully when installing.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

Size: 8-32 t. Includes 12 screws.

8-18 hi/lo 5/8

The Blower Wheel is an OEM component specifically designed for GE dryers. It is responsible for circulating air during the drying cycle, directing airflow through lint and clothes to remove moisture. The plastic blades of the blower wheel push air through the dryer and out the vent when the motor is running.

Symptoms of a bad blower wheel include:

• Slow or inefficient drying times even on low moisture loads
• Strange noises from inside the dryer cabinet
• Excessive vibrations felt through the dryer door or cabinet
• Bent or cracked blower wheel blades

Causes can include normal wear and tear over time, accidents that damage the blades, or failures in the secure mounting of the blower wheel.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This drive belt transfers power from the motor to the drum so the appliance tumbles laundry. Replacing a worn, stretched, or broken belt restores drum rotation and can stop slipping, squealing, or a drum that won't turn. What it does:

• Wraps around the motor pulley and drum to drive drum rotation.
• A worn or snapped belt can cause the drum to stop turning, slip, or make squealing/rumbling noises.
• Works with the appliance's existing idler and motor — does not include pulleys or rollers.

• Disconnect power (and gas, if applicable) before beginning any repair.
• Basic hand tools are typically required; remove the front or rear panel and loosen the tensioner to replace the belt.
• Inspect the idler pulley, motor shaft, and drum rollers while servicing; replace any worn parts to prevent repeat failures.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM component specifically designed for GE dryers. As part of the drum assembly, the idler pulley helps drive the rotation of the drying drum. It works closely with the belt and motor pulley to spin the drum and tumble clothes during the drying cycle.

Causes of a bad idler pulley can include wear and tear of moving parts over time, loose or worn belts that cause added strain, or damage from sticking or jamming during operation.

Symptoms of a bad idler pulley include:

• The dryer drum not spinning or tumbling clothes
• Loud grinding or squealing noises coming from inside the dryer
• The belt slipping off the pulleys
• Vibration or shaking during use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This blower housing channels heated air from the dryer drum to the vent, restoring proper airflow and helping the appliance dry clothes efficiently. It replaces a cracked or damaged housing to reduce air leaks and noise. What it does

• Directs and seals airflow from the dryer drum to the blower wheel and exhaust vent.
• Helps maintain proper drying performance and cycle times by preventing air loss.
• Reduces rattling or scraping noises caused by a damaged housing contacting the blower wheel.
• Can prevent overheating caused by restricted or leaking airflow.

• One blower housing assembly.

• Disconnect power (and gas supply for gas dryers) before starting any service.
• Access may require removing the dryer front or rear panel; follow your model's service instructions.
• Inspect the blower wheel and seals when installing; replace if worn or damaged.

This exhaust duct is a replacement vent connector that routes appliance exhaust air safely away from the unit, helping restore proper airflow and reduce heat buildup. Use it to replace a damaged or missing duct for safer venting. What it does:

• Channels exhaust air from the appliance to the household vent system
• Restores proper airflow when the original duct is cracked, bent, or disconnected
• Helps reduce heat and moisture buildup around the appliance
• Supports safe operation by maintaining a clear exhaust path

• Disconnect power to the appliance before beginning any service
• Confirm orientation and fit with the appliance vent opening before final installation
• Use appropriate clamps or fasteners and ensure a secure, airtight connection
• If venting to the outdoors, verify the exterior vent is clear of obstructions after installation

The Thermostat is an OEM replacement part for GE dryers. It is responsible for regulating the temperature during the drying cycle to prevent damage to your clothes and dryer.

Symptoms of a faulty dryer cycling thermostat include:

• Inconsistent or inadequate heating
• Extended drying times
• Dryer shutting off prematurely

A bad dryer cycling thermostat can be caused by normal wear and tear over time or a malfunction in the thermostat's internal components. If you notice that your dryer is not reaching the desired temperature, takes longer to dry clothes, or shuts off before the cycle is complete, it may be time to replace the old or damaged cycling thermostat with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This plate motor drives the microwave/oven turntable, keeping the glass tray rotating for even cooking and heating. Replaces a worn or failed motor to restore tray rotation and reduce uneven heating. What it does:

• Turns the glass turntable so food cooks evenly
• Stops rotation or hesitates when motor fails or wears out
• May make buzzing, grinding, or intermittent noises before failing
• Prevents the turntable from rotating if the motor no longer engages

• One replacement plate (turntable) motor

• Disconnect power before servicing to avoid shock; verify unit is fully powered off
• Remove the turntable glass and roller guide to access the motor underneath the oven/microwave floor
• Typical install requires removing interior fasteners and unplugging the motor connector; retain hardware for reassembly

The Outlet Control Thermistor is an OEM part for GE dryers. This thermistor monitors and regulates the temperature inside the dryer by sending temperature readings to the control board, ensuring the dryer operates at optimal temperatures for efficient drying and preventing overheating.

Causes of a bad outlet control thermistor can include wear and tear from regular use, electrical malfunctions, or exposure to excessive heat.

Symptoms of a bad outlet control thermistor include:

• The dryer overheating or not heating at all
• Inconsistent drying times
• The dryer shutting off prematurely
• Error codes related to temperature issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This GE Motor Drive and Pulley is an OEM part for GE dryers. The motor drive powers the drum, and the pulley system ensures proper tension and alignment of the belt.

The need for replacement can arise from various factors such as prolonged use, electrical issues, or mechanical wear and tear. A failing motor drive and pulley can significantly impact the dryer's performance.

Symptoms of a malfunctioning Motor Drive and Pulley include:

• The dryer drum struggles to turn or doesn't turn at all.
• Unusual noises like humming or grinding during operation.
• The dryer stops unexpectedly during a cycle.
• Overheating of the dryer motor.
• The dryer takes longer than usual to dry clothes.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
