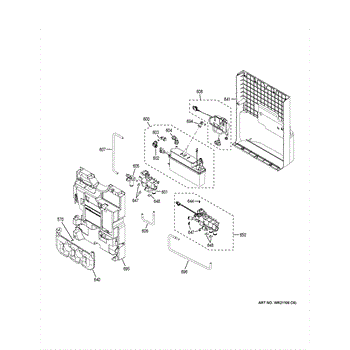

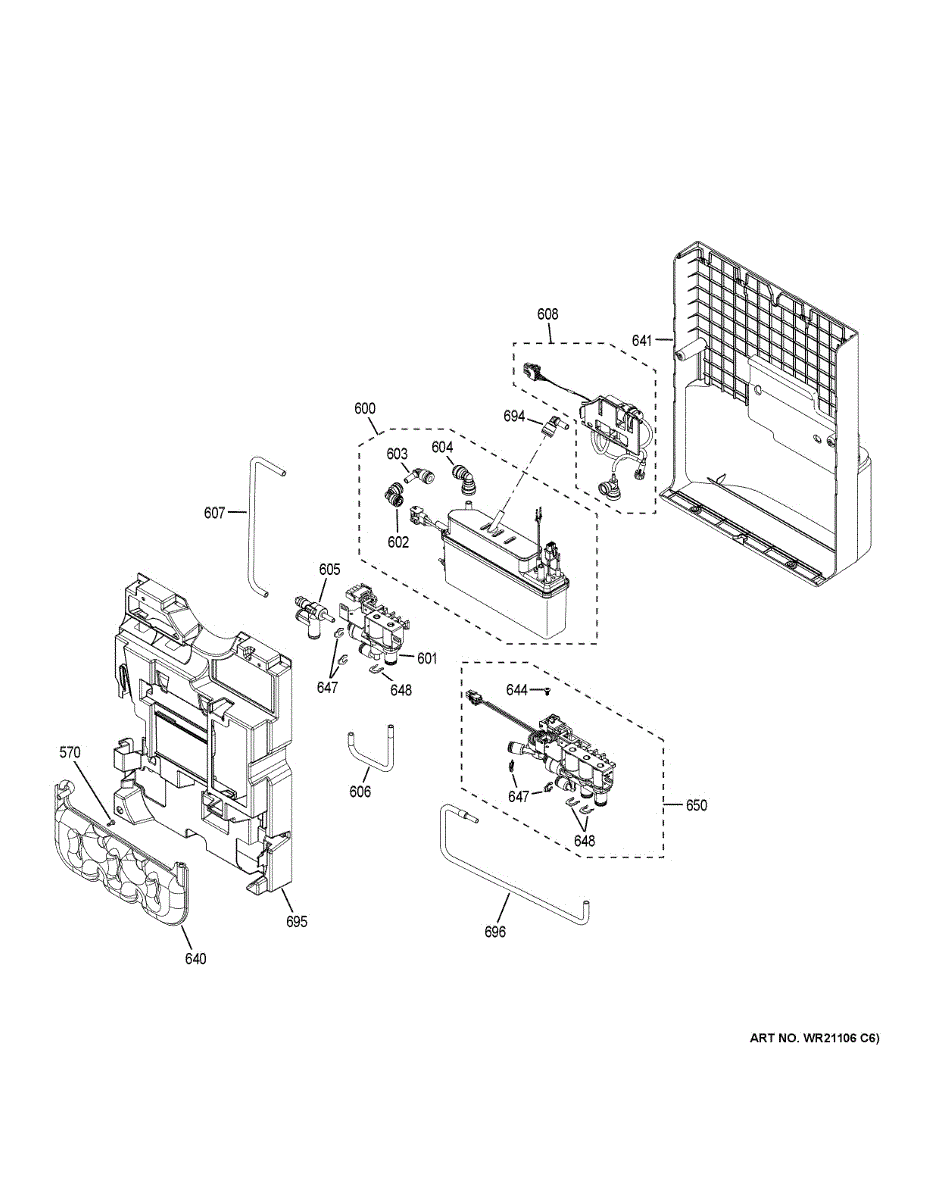

Parts for Ge CFE28USHCSS: Beverage Dispenser Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Single Serve Hot Water Tank is an OEM part for GE refrigerators. It is the tank that holds and dispenses hot water for refrigerators equipped with a hot water and ice feature.

Symptoms of a bad hot water tank include:

• Slow or inconsistent hot water dispensing
• Leaks or water spills near the dispenser area
• Failure of hot water function altogether
• Inability to heat water to the desired temperature

Causes of failure can be mineral buildup over time restricting water flow, cracks or punctures in the tank itself, or malfunctioning components like heating elements or thermostats.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Valve Dual Water is an OEM part for GE refrigerators, specifically designed to control the flow of water to both the icemaker and the water dispenser. This dual-function valve ensures that water is properly directed to the icemaker for ice production and to the dispenser for fresh drinking water, maintaining an optimal flow and pressure that is crucial for the refrigerator's operation.

Over time, the dual water valve can fail due to mineral deposits from hard water, wear and tear from regular use, or electrical issues. A malfunctioning valve can disrupt the water supply to the ice maker and water dispenser, affecting their performance.

Symptoms of a bad Valve Dual Water include:

• No water dispensing at the dispenser
• Irregular or no ice production
• Leaks or drips from the water inlet area
• Unusual noises coming from the valve when it’s supposed to be operating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This flow control assembly regulates and senses water flow in the appliance to allow proper dispenser and ice-making operation. Replacing a worn or failed unit restores correct flow control and helps stop intermittent dispenser or fill issues. What it does:

• Monitors or controls water flow through the appliance's water circuit
• Enables the dispenser and icemaker to receive water only when flow is correct
• Common symptom: dispenser won't deliver water or icemaker won't fill reliably
• Prevents false flow readings that cause intermittent operation

• One flow control assembly

• Disconnect power and shut off the water supply before starting
• Remove necessary access panels and take care with attached tubing and connectors
• Tighten fittings to the manufacturer's torque recommendations and check for leaks after restoring water

This mounting bracket secures the pump and valve assembly in place to keep water components aligned and reduce vibration. Replacing a damaged bracket helps stop rattling and prevents strain on hoses and fittings. What it does:

• Holds the pump and valve assembly firmly to the appliance frame
• Keeps hoses and wiring aligned to prevent kinking or stress
• Reduces vibration and rattling from the pump or valve
• Helps prevent leaks caused by loose or misaligned components

• Disconnect power and shut off the water supply before starting repair
• Use basic hand tools; retain any original mounting hardware unless new hardware is supplied
• Inspect surrounding hoses and fittings while replacing the bracket

The Coiled Cold Water Tank is an OEM part for GE refrigerators. This part is responsible for storing and cooling the water that is dispensed through the refrigerator's water dispenser. It ensures that you have access to refreshing cold water whenever you need it. The coiled design allows for efficient cooling and helps maintain the desired temperature of the water.

A bad coiled cold water tank can occur due to wear and tear, leaks, or other factors. If you notice symptoms such as water not being dispensed properly, frozen water, or leaks around the tank, it may be time to replace it with a new one.

Symptoms of a bad coiled cold water tank include:

• Improper water dispensing
• Frozen water tank
• Leaks around the tank

Ensure the availability of dispensed cold water by replacing the faulty coiled cold water tank with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This is a replacement M4 machine screw for securing appliance components and assemblies. It restores proper fit and prevents vibration or loose parts when a small mounting screw is missing or stripped. What it does

• Fastens small panels, brackets, or electronic modules in place
• Restores secure mounting to reduce rattles, vibration, or intermittent connections
• Replaces lost, worn, or stripped original fasteners
• Useful during control board or housing repairs where factory screws are removed

• One M4 x 1.59 machine screw, 10 mm length

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; replace with exact screw size to ensure proper fit
• Keep small parts away from children and pets

This 1/4-inch quick-connect locking clip secures water tubing in push-to-connect fittings on your refrigerator's water and ice system. It locks the tube in place to help prevent leaks and accidental disconnection at the fitting. What it does:

• Locks 1/4-inch OD tubing into compatible push-to-connect fittings
• Helps maintain a secure seal to reduce drips at water line connections
• Replaces a missing, cracked, or loose clip on filter heads, inlet valves, or inline couplers
• Symptoms include leaks at a fitting or a tube that won't stay seated

• One 1/4-inch quick-connect locking clip

• Disconnect power and shut off the water supply before servicing; dispense water to relieve pressure
• Remove the old clip; ensure the tubing end is clean and cut square
• Fully insert the tube into the fitting until it bottoms out, tug lightly to seat, then install the clip in the collet groove
• Restore water and check all connections for leaks

• Designed for fittings that use 1/4-inch OD tubing. It will not fit 5/16-inch or 3/8-inch quick-connect fittings.

This quick-connect clip secures 5/16-inch water tubing in push-to-connect fittings to prevent accidental release and leaks at the joint. Restore a reliable hold on dispenser and icemaker lines when the original clip is missing or damaged. What it does:

• Locks the release ring (collet) on a 5/16-inch quick-connect fitting to retain tubing
• Helps prevent water drips or leaks at the connector
• Keeps tubing from slipping out, supporting steady water flow to dispenser/ice maker
• Common symptoms: leak at fitting, loose/disconnected tubing, no/low water or ice

• 1 quick-connect clip (5/16)

• Unplug the appliance and shut off the water supply; dispense water to relieve line pressure
• Ensure the tubing end is cut square; push it fully into the fitting until seated
• Insert the clip beneath the fitting's collet to lock; tug gently to verify retention
• Restore water and power, then check all connections for leaks

• Designed for 5/16-inch OD water tubing quick-connect fittings

The Tri Dummy Valve Water Filter Module Assembly is an OEM component specifically designed for GE bottom-freezer refrigerators. This assembly includes a water filter, mounting brackets, and all necessary fittings.

It installs within the fresh food compartment and connects the external water source to the internal dispenser system. Filtration protects appliance components while delivering clean, purified water on demand to the door spigot.

Proper filtration is vital for appliance performance and safe drinking water. Causes of failure could include mineral deposits clogging the porous filter media over time.

Symptoms of a faulty assembly include:

• Change in water taste, smell, or color
• Pressure loss impacting water flow at the dispenser
• Leaks from poorly sealed connections

This OEM GE replacement restores the refrigerator's inherent water treatment role. Install it to supply pure H2O for years while safeguarding your GE appliance's plumbing. It is also compatible with Hotpoint, RCA, and some Kenmore models.


This housing tray valve tank is the replacement housing that supports and secures the tray valve assembly, helping control water flow in the appliance. It restores proper valve positioning and prevents leaks from a damaged housing. What it does:

• Holds and aligns the tray valve assembly so the valve operates correctly.
• Provides a sealed mount to help prevent water leaks around the valve area.
• Replaces cracked, warped or otherwise damaged housings that cause misalignment or water seepage.
• Helps restore normal water delivery functions when the housing is the source of valve problems.

• One housing tray valve tank (housing) as shown

• Disconnect power and shut off the water supply before starting any work.
• Basic hand tools are normally required; handle plastic parts carefully to avoid cracking.
• Verify correct orientation and secure all fasteners and seals; test for leaks after re-connecting water.

Stainless steel valve-to-valve tube that routes water between service valves to restore a secure, corrosion-resistant connection. Replaces damaged or corroded tubing to help stop leaks and reestablish proper water flow. What it does:

• Connects two refrigeration/service valves to provide a continuous, leak-resistant water path.
• Restores flow to water lines serving the dispenser or ice maker when tubing is compromised.
• Common symptom: visible leaks or dripping at valve connections.
• Common symptom: water pooling under or behind the appliance or reduced water delivery.

• Turn off the water supply and disconnect power before starting any work.
• Relieve line pressure and drain residual water before removing fittings.
• Use the correct fittings and thread seal method for your appliance; tighten fittings securely but avoid overtightening.
• After installation, restore water and power, then check all connections carefully for leaks.
