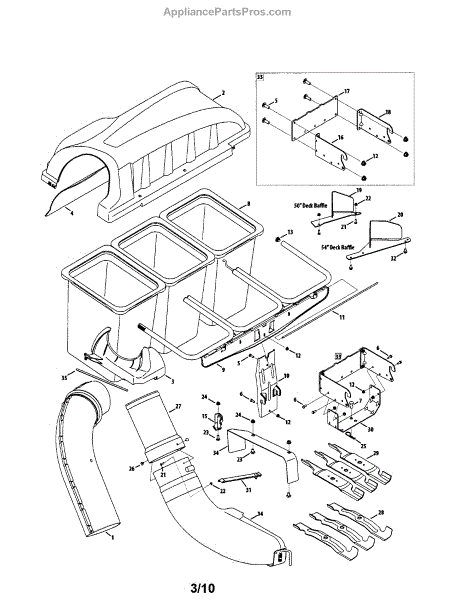

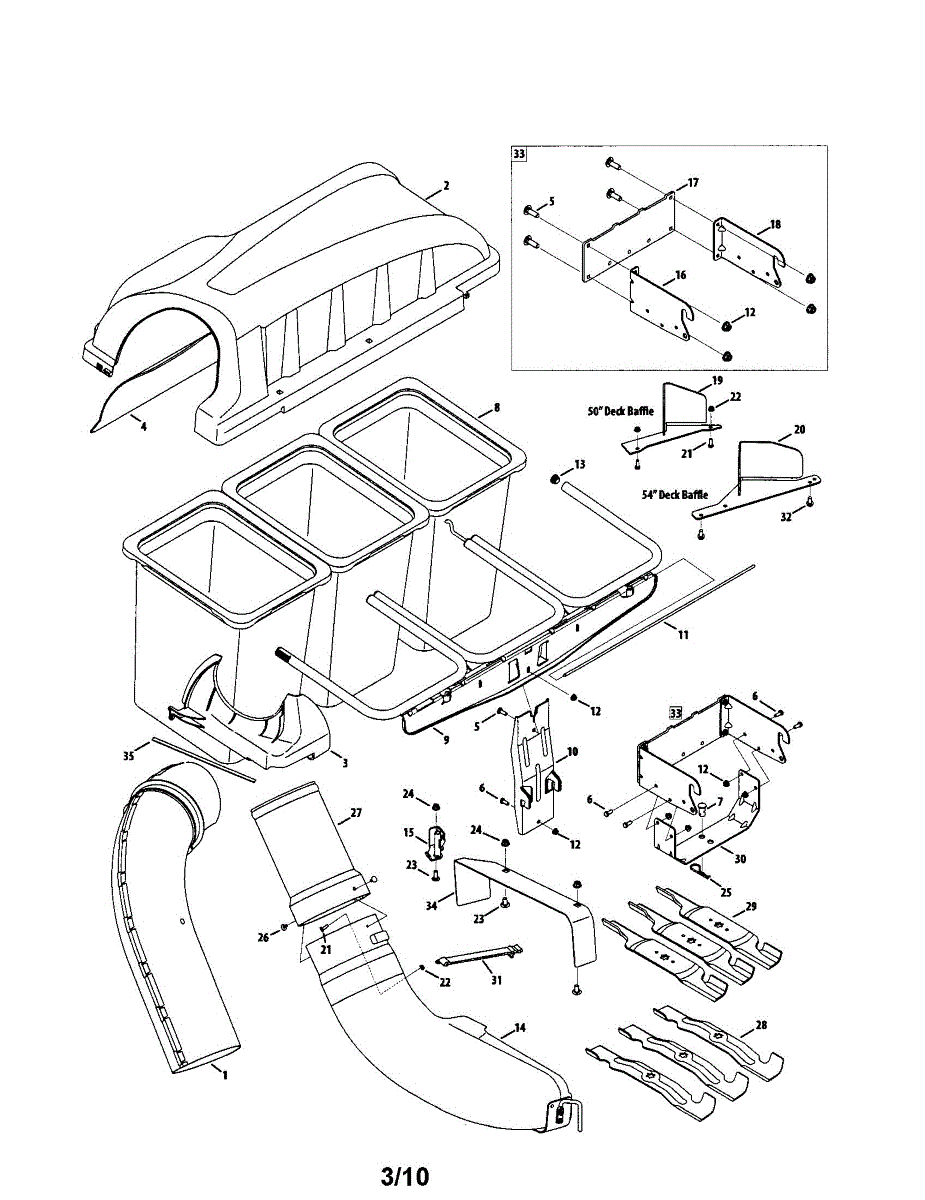

Parts for Craftsman 24724020: 3 Bin Bagger Parts

Upper chute assembly for riding lawn mower bagging systems. Guides cut grass from deck to collection bag. Replace if cracked, broken, or damaged.

Replacement cover for lawn tractor triple bagger attachment. Installs on top of bagger assembly. Needed when original is cracked, damaged, or missing.

Upper chute for lawn tractor grass catcher attachment. Protects internal parts. Replace if cracked, broken, or damaged from impact or wear.

Replace your grass catcher bagger cover screen when damaged or clogged to restore proper airflow and clipping collection. Verify fit with your model number.

Carriage bolt fastener for lawn and garden equipment. Replaces worn, stripped, or missing bolts that secure deck components and attachments.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

Collection bag for grass catcher attachments on lawn tractors. Replaces worn, torn, or missing bags. Installs on rear-mounted grass catchers.

Vertical support bracket for grass catcher attachments. Secures and stabilizes the bag frame. Replace if bent, cracked, or broken to restore proper fit.

Replacement hinge pin for lawn tractor attachment triple cover. Secures cover panels and maintains proper alignment. Needed when original is bent or missing.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

This part is a replacement handle plug. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken handle plug in tillers.This handle plug ensures that the opening at the end of the handle is sealed properly. This part can easily become worn, detached, or lost and thus will require replacement with a genuine part. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this handle plug, the appropriate owner's manual and equipment diagrams should be referred to. This handle plug is a genuine OEM part made of durable materials and is sold individually. It is suitable for use with tiller models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

Lower chute assembly for lawn tractor attachments. Replaces broken, cracked, or detached chutes. Direct fit installation for reliable debris discharge.

Chute deflector stop for lawn tractor grass catchers. Secures the discharge chute in position. Replace if cracked, broken, or missing for proper fit.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Versatile bolt for lawn tractors and mowers. Secures various components throughout the machine. Replace when damaged, stripped, or missing.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Ratchet fastener for lawn mowers and tractors. Secures components in place. Replace if broken, stripped, or missing to properly fasten parts together.

Bagger chute adapter connects the mower discharge to grass catcher bag. Replace if cracked, broken, or missing to restore proper grass collection function.

Support bracket that mounts grass bag attachment to lawn tractor frame. Replace if bracket is bent, cracked, broken, or missing to secure bagger system.

Replacement chute strap handle for lawn mower grass catchers. Connects to debris chute for easy carrying and disposal. Replace if worn, frayed, or broken.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

Mounting bracket kit for attaching grass bagger to lawn tractors. Replace broken, cracked, or missing brackets. Complete hardware included for secure install.

Adhesive foam tape for grass catcher assembly on lawn tractors. Replaces worn, cracked, or missing tape that secures components and dampens vibrations.
