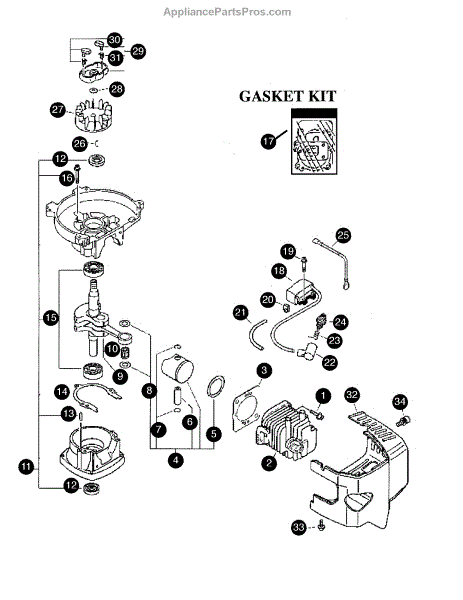

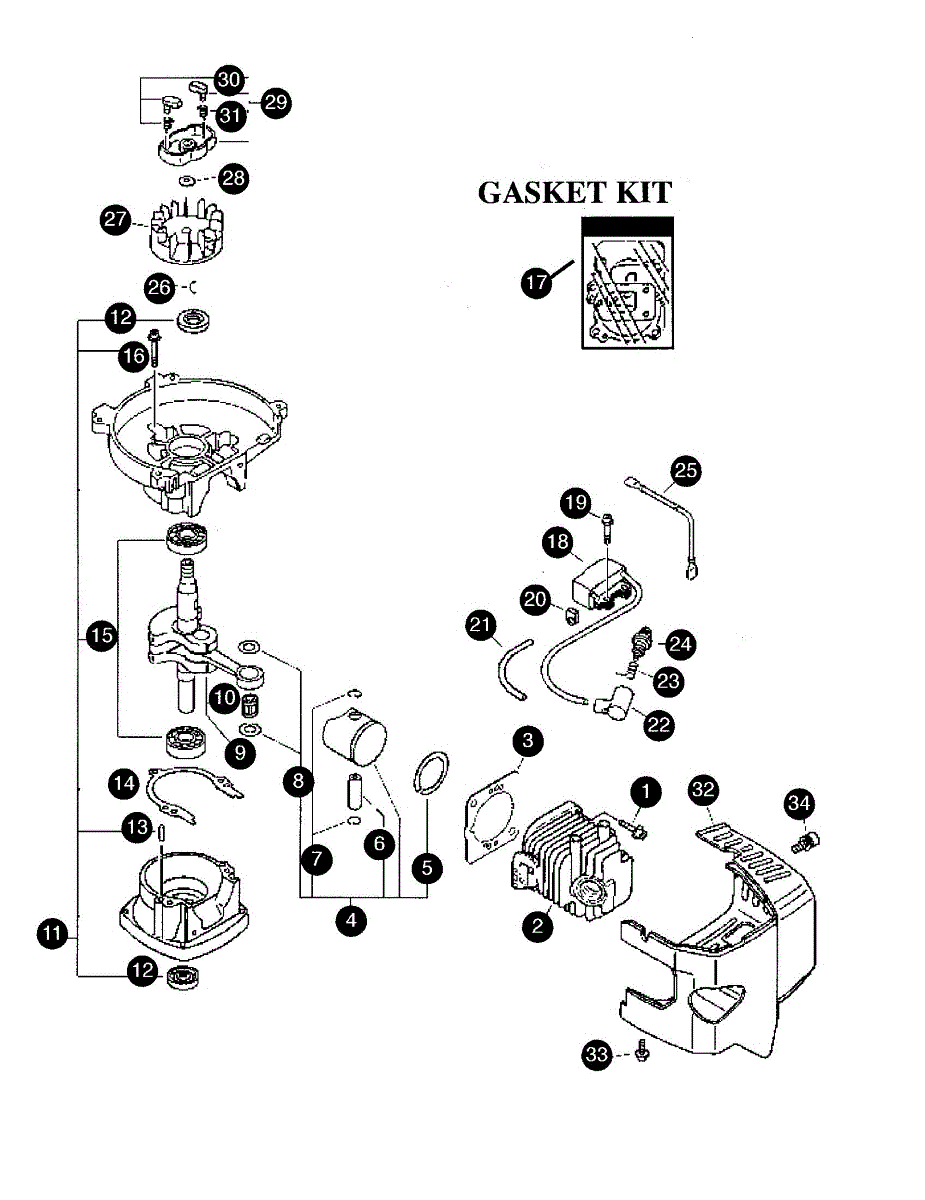

Parts for Mantis 7222: Block / Gasket Kit Parts

This is a standard hardware screw that is used in multiple applications on lawn and garden equipment. The hex screw may be used to secure various components of the housing or engine on machines. Due to constant vibrations and use, these screws may become worn, stripped, broken, or even lost over time. In the event that a screw is damaged or missing, it should be replaced immediately to prevent further damage and ensure optimal operation of the machine. This screw can provide the ideal replacement for compatible machines. This genuine OEM screw is manufactured by Echo and designed to be used with select Echo, Little Wonder, and Shindaiwa lawn and garden equipment. Because this is standard hardware with multiple applications on more than 150 models of machines, it is important to check the parts diagram for exact location and application. This screw can be found on edger/trimmer models, blowers, and hedge trimmers. The screw is sold as an individual unit and includes a nut and lock washer to secure the screw in place. An Allen key or hex key will be required for replacement. Always wear gloves and allow the engine to cool before doing any parts replacements.

This is a cylinder head used in several types of lawn and garden equipment. The cylinder head is the component that sits on top of the engine. It is responsible for closing the combustion chamber. The gap in between the head and the engine is filled with a head gasket. The cylinder head also helps ensure that the cylinder stays properly lubricated at all times. If the cylinder head has failed, it can cause dropped engine performance, low oil levels, and smoke may come from the exhaust.If the cylinder head needs to be replaced, the grass screen and shield will need to be removed. Take the bolts out of the engine cover before removing the cover. Remove the engine shroud and the bolts that hold the pump bracket to the head. The valve cover should be removed to find the cylinder head. Take the old one out and insert the new one before reassembling the equipment.This cylinder head is a genuine OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual part. The cylinder head is compatible with hedge trimmers, leaf blowers, and chipper shredders made by Shindaiwa, Mantis, and Echo.

This cylinder gasket replaces a part used by Echo, Little Wonder, and Shindaiwa in some of their small gasoline-powered engines. These engines are typically used in landscaping and lawn tools such as hedge trimmers, power vacuums, chippers, leaf blowers, pole saws, grass trimmers, pruners, and cultivators. This gasket sits between the cylinder and the crankcase of these small engines. It provides a seal that stops air from getting into the combustion chamber, and lubricating oil from leaking out of it. While gaskets such as these are intended to be durable, eventually the heat, expansion, and pressure experienced by the gasket will cause it to lose the ability to seal. Most often the signs of gasket failure are oil leaks around the base of the manifold and white, oily smoke emitted while the engine is running. Replacing the cylinder gasket is one of the more involved repairs a user will experience. To make certain that it is accomplished properly, it is advised that the user consult the owner's manual, an online diagram of the engine parts, and the manufacturer's website for instructions. The cylinder gasket, which is sold as an individual unit, should be replaced with one like this, which is a genuine OEM replacement part.

This is a genuine replacement piston kit for select Echo lawn and garden equipment engines. The piston is located inside the cylinder and is responsible for linking with the connecting rod. This helps separate the crankcase from the combustion chamber. The piston will move up and down during ignition, which drives the crankshaft and helps propel the engine. Due to constant heat and repetitive motion, this assembly can wear out or become damaged over time, necessitating a replacement. This genuine OEM piston kit is manufactured to exact specifications and includes the piston, ring, clips, and pin. It is compatible with select blowers and vacuums, hedge trimmers, cultivators, edgers, and trimmers. This part can be used with machines from Echo, Shindaiwa, and Little Wonder. It is sold as an individual kit and only includes the items mentioned. Replacing the piston kit will require allowing the engine to cool so that the cylinder can be disassembled. Then, the old piston and accessories can be removed and the new one can be installed. A screwdriver and pliers will be needed for this repair. Always work in a well-ventilated area and wear gloves when performing engine repairs.

The piston ring is used in internal combustion engines in small outdoor power equipment. This ring creates a strong seal between the cylinder and the piston, separating the crankcase from the combustion chamber. If the piston ring degrades or fails, it can cause dangerous gases to leak from the engine. This leak can also affect the performance of the engine because of the reduced compression. In severe cases, the engine could fail completely until the piston ring is replaced. The cylinder should be inspected for damage when replacing the ring, but generally this replacement will do the job. This genuine OEM piston ring is manufactured by Echo and designed to be used with a number of engines in machines from Shindaiwa, Little Wonder, and Echo. This part can fit over 150 blowers, trimmers, pruners, cultivators, and vacuum machines designed for outdoor use. Allow engines to cool completely before doing any repairs and wear gloves for hand protection. This piston ring is sold as an individual unit and does not include any other parts or hardware.

This genuine Echo retaining ring can be used as a replacement part for string trimmers, hedge trimmers, chainsaws, leaf blowers, and leaf vacuums. The function of a retaining ring for a small engine appliance is to fasten and limit the motion of a component by attaching it to a shaft or into a bore. A retaining ring can come loose and fall off, becoming lost. A retaining ring can also suffer damage over time in the form of punctures, piercings, or corrosion to the metal material that can preclude it from continuing to fasten components to shafts and bores. If this is the case, the damaged retaining ring should be immediately removed and replaced with this genuine OEM part. Remember to wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This retaining ring is compatible with the following brands: Echo, Little Wonder, and Shindaiwa.

This oil seal is used in a wide selection of lawn and garden equipment. It is used to prevent dust, water, dirt, and other contaminants from reaching important parts. It also helps retain lubrication so the motor can run without any issues. If the oil seals are no longer working correctly, it can allow the oil to leak out of the tool. Topping off the oil is an option, but replacing the seal will take care of the issue for good. If there is oil leaking from a pole saw or hedge trimmer, this is an indication that new oil seals may be needed. Sockets and wrenches will be needed to handle the replacement process. Drain the oil from the engine and remove the motor to get started. Take a look at the oil seals and how they are seated for replacing the seal later. A drill or a screw can be used to remove the old seal before putting the new one in. Designed for use with Echo, Little Wonder, Mantis, and Shindaiwa string trimmers, hedge trimmers, leaf blowers, tillers, edgers, and pole saws, this component is sold individually. It is a genuine OEM part that comes directly from the manufacturer.

This part is a crankcase gasket. The crankcase is the housing for the crankshaft, which is integrated into the engine block. The crankcase is split into two parts and the crankcase gasket creates a seal between the two halves.A new crankcase gasket may be needed if they are worn out or broken so there isn't a proper seal. It is recommended that the crankcase gaskets are replaced any time that the engine is serviced. This ensures that a proper seal is created when the engine is reassembled.This genuine OEM Echo part is sourced directly from the manufacturer and it is sold individually. This crankcase gasket is used on a variety of outdoor power equipment machines including hedge trimmers, leaf blowers, grass trimmers, edgers, pole saws, and brush cutters. It is compatible with outdoor power equipment that is manufactured by Shindaiwa, Echo, and Little Wonder.

This is a ball bearing that is made out of durable metal and used in a variety of lawn and garden equipment types. It fits in between a washer and a spacer in a tool to prevent excessive heat and friction between different components. The ball bearing takes the load and spins to help distribute weight while preventing friction so the tool runs at its best. When the ball or bearing retainer wears out, it can cause issues with the gardening tool. If it is located in a wheel, it can make it hard to turn.Wear is constant on ball bearings whenever a tool is in use, which means they over time they will start to experience issues and can wear out. Pressure, heat, vibration, and friction will take a toll over time. It's important to maintain the ball bearings and replace them whenever needed. This ball bearing is a genuine OEM replacement part that is sourced directly from the manufacturer. It's sold as an individual component. The part is designed for use with string trimmers, hedge trimmers, chainsaws, tillers, and pole pruners made by Echo, Little Wonder, Mantis, and Shindaiwa.

Most lawn and garden machines operate on fuel, typically gas or a blend of gas and oil. The system for delivering fuel to the engine relies on fuel lines with durable seals and connections. The fuel grommet on many power tools is designed for use between the fuel tank and the filter. It is meant to secure the line and ensure there is no leakage and only minimal movement. This replacement fuel grommet is designed for Echo, Shindaiwa, LIttle Wonder, and other makes and models of lawn and garden gear. This includes trimmers, pruners, chainsaws, and many other small engine machinery. This is an OEM replacement part that will ship individually and will require pliers to install. It is important to ensure that this is the appropriate size and gauge for the machine in question prior to the repair.

It’s important to keep spark covers well maintained to prevent current leaking out from your spark plugs. The connection between the leads and the plug needs to be tight to keep the electric flow steady. Over time, spark plug covers can become dry and brittle. If the cover has failed, spark plugs will begin to go bad. Some signs of this are if your engine misfires or hard starts. Replacing the spark plug cover is as simple as removing the old cover and attaching a new one. This is an easy fix and shouldn’t require any special tools or additional parts. Be sure to let the engine cool completely before attempting any repairs. This genuine OEM part is a replacement spark plug cap for handheld gardening tools like chainsaws, leaf blowers, pole saws, hedge trimmers, edgers, chippers, shredders, sprayers, or tillers made by Echo, Mantis, or Shindaiwa. This item ships individually.

The spark plug cap spring is an important part of a handheld outdoor appliance’s ignition system. The spark plug makes a small electrical arc between two bits of wire, causing the ignition to combust, leading to the engine turning. But, to make sure there is good contact with the lead, you need a working spark plug cap spring. The spring holds the cap and plugs in place to ensure everything is grounded. With spark plugs, oil or carbon can build up in an aging engine and cause problems. If oil gets into the spark plug cap, the spring can come loose and the spark plug won’t work. This means the ignition will fail and the engine won’t start. This is an easy fix with this genuine OEM part sourced directly from the manufacturer. Just remove the cap and fish out the old spring with a pair of pliers. Replace it and reattach. It is compatible with Echo, Mantis, and Shindaiwa chainsaws, pole pruners, edgers, lawnmowers, tillers, and weed eaters. Sold individually.

This is a genuine ignition lead replacement manufactured for use in select models of lawn and garden equipment. The ignition lead is used to connect the ignition switch to the ignition module, allowing the engine to be started properly when it is engaged. Over time, this cable can become stretched or worn. It may also be damaged in an incident and need to be replaced. Either way, a genuine OEM replacement like this is essential. This part is manufactured to strict OEM standards by Echo. It can be used in several models of equipment from Echo, Shindaiwa, and Little Wonder. The ignition lead is compatible with trimmers, cultivators, edgers, hedge trimmers, and drills. It is sold as an individual unit and does not include any hardware or additional accessories. It is made of durable metal and rubberized cabling. To install the new ignition lead, simply disconnect the old unit from the ignition switch and module. Be sure to disconnect the power and let the engine cool first before getting started. Once the old lead has been removed, the new cable can be installed so that the unit is functional again.

To start a gas-powered engine requires more than just hitting the ignition switch. Often, it is a series of events that include the creation of a spark to ignite the fuel in the engine, as well as an initial nudge to the engine from a device known as a starter. This rotates the crank inside of the engine and helps to get it going under its own power. While an engine that doesn't turn over may have a bad battery, it can also be a problem with the starter. This replacement starter is meant for use in more than 60 different yard and garden machines produced by Little Wonder and Echo brands. This is an OEM replacement part that will require the use of a screwdriver and pliers to make the repair. It ships individually without mounting hardware.

This is a durable plastic starter pawl that is designed to secure the return spring inside of the starter pawl assembly. It connects the flywheel with the recoil pulley and spins when the starter rope is pulled. This makes the flywheel rotate, which causes the engine to start. If a trimmer or leaf blower isn’t working correctly, it could be caused by a defective starter pawl. The first step is removing the engine cover followed by removing the spark plug boot, taking off the engine cover, and taking out the starter assembly. Next, bind the engine and remove the starter pulley from the engine. At this point, take off the starter pawl return spring using a screwdriver and install the new starter pawl. Reassemble the unit before unbinding the engine and using the equipment again. This is a genuine OEM starter pawl for Echo, Mantis, Shindaiwa, and Little Wonder water pumps, trimmers, tillers, hedge trimmers, chipper shredders, leaf blowers, and pole saws. It is sold individually. A screwdriver and a hex key are needed to complete the replacement.

The 4 x 18 screw from Echo is a genuine OEM replacement that is designed to have numerous applications in outdoor power equipment based on the model in question, but its job is generally to secure various parts and components, including hardware, casings, and internal engine components. It works in partnership with a washer to provide a secure hold in many outdoor power tools. Screws can become stripped or get lost over time, which may require the need for a replacement. This durable metal screw is easy to install using a screwdriver, and a washer is included for added security. This OEM screw is compatible with several Echo outdoor power equipment models and machines and is sold as a single unit. If you need multiple replacement screws, you will have to purchase multiple quantities. More than 100 models of trimmers, blowers, and other outdoor tools can take this screw.
