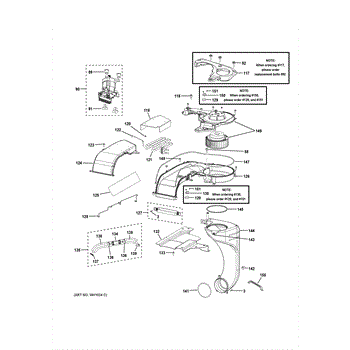

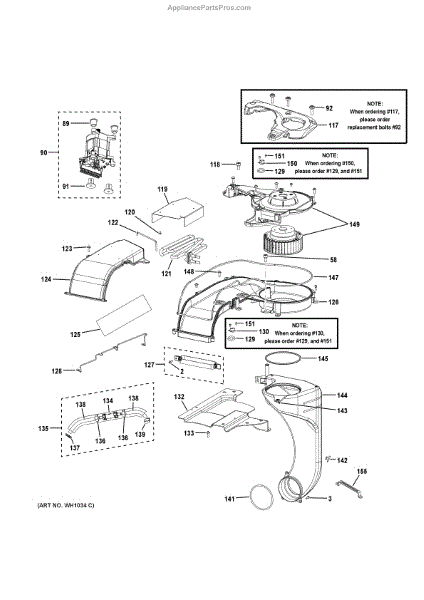

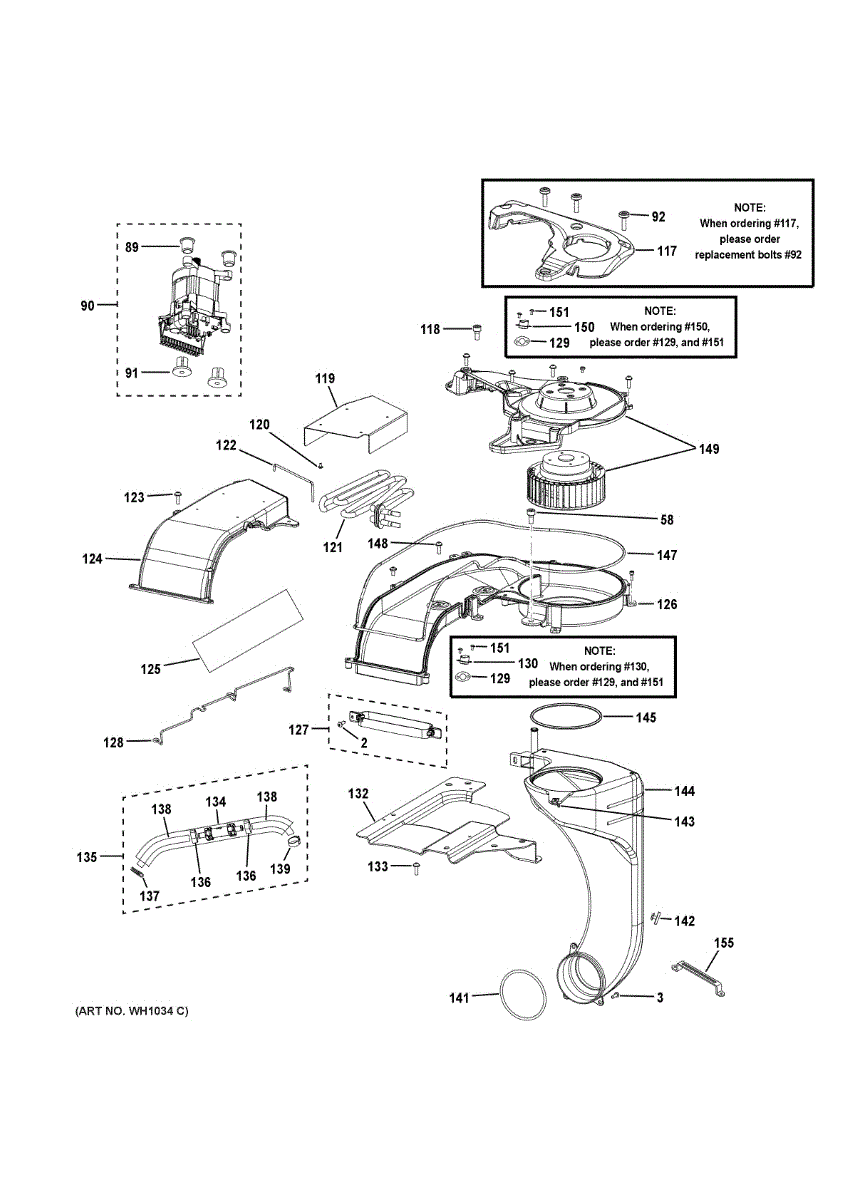

Parts for HLC1700AXS: Blower & Heating System Parts

This is a ST3.5 x 12 self-tapping screw designed to secure trim, panels, and small appliance components. It replaces stripped or missing screws to restore proper fit and reduce movement or vibration. What it does:

• Fastens appliance panels, brackets, or trim where ST3.5 x 12 screws are specified
• Helps stop rattling, loose panels, or parts that shift during operation
• Provides a secure threaded hold in thin sheet metal or plastic mounting points
• Matches OEM fit where the WH02X26267 screw is specified

• Use the properly sized Phillips driver to avoid cam-out and head damage
• Start screws straight and apply steady pressure; do not over-torque to prevent stripping
• Wear eye protection when working with small fasteners and sharp edges
• Compare size and thread to ensure a proper match

A single self-tapping screw used to secure appliance panels and trim for a stable, vibration-free fit. Replaces a lost or damaged mounting screw to restore proper part attachment and reduce rattling. What it does:

• Fastens control panels, brackets, trim pieces or small assemblies to metal or plastic surfaces
• Creates its own threads for a tight hold in sheet metal or molded openings
• Helps eliminate loose parts that can cause noise, vibration, or misalignment
• Commonly used where original screws have stripped, corroded, or been lost

• One tapping screw (quantity: 1)

• Use the correct-size Phillips or Torx driver to avoid cam-out or head damage
• Start straight and apply steady pressure; do not overtighten to prevent stripping or cracking
• Disconnect power and remove any panels before working
• If threads are damaged, replace the mating fastener or insert before installing this screw

Replace a missing or corroded ground screw to restore proper electrical grounding. Prevents shock hazards and ensures safe appliance operation. Quick fix.

Fix a washer that won't spin or agitate clothes. This motor assembly powers the drum rotation during wash and spin cycles. Moderately difficult repair.

This bolt with pre-applied Loctite secures mating parts and helps resist loosening from vibration, keeping assemblies stable. Use when replacing a single fastener that requires thread locker for reliable hold. What it does:

• Fastens components together while the Loctite helps prevent the bolt from backing out under vibration
• Commonly used on mounting brackets and assemblies that experience movement or torque
• Restores original fastening strength when the original bolt or threadlocker is worn or damaged
• Safe, direct-replacement part intended to match the OEM fastener and finish

• One bolt with pre-applied Loctite

• Tighten to the appliance manufacturer's specified torque; over-tightening can damage threads or components
• Allow threadlocker to cure per manufacturer's recommended time before stressing the joint
• Replace only the fastener(s) specified by the manufacturer—do not substitute unless confirmed compatible

This replacement belt protector bolt secures the dryer belt protector to the cabinet, keeping the belt aligned and shielded during operation. Durable metal construction restores proper routing and helps prevent belt wear or rubbing. What it does

• Fastens the belt protector to the dryer frame to maintain correct belt position.
• Prevents the belt from contacting sharp edges or rubbing against the cabinet.
• Helps reduce noise and premature belt wear caused by a loose protector.
• Small OEM fastener designed to match factory fit and function.

• One belt protector bolt.

• Disconnect power to the appliance before starting any repairs.
• Requires basic hand tools (screwdriver or socket) to remove/install.
• Hand-start threads and tighten securely; avoid over-tightening to prevent stripping.
• Verify belt alignment and protector position before restoring power and testing.

If your laundry center dryer isn't heating or takes too long to dry clothes, the heating element may be burned out. This repair restores proper heat.

Seals the dryer plenum to direct warm air through the drum and prevent leaks. Replace if you notice reduced heat or longer drying times. Confirm fit with your model.

Fix temperature control issues in your laundry center with this thermostat gasket. Seals the thermostat to prevent air leaks affecting heating cycles.

This high-limit thermostat is a temperature-sensing safety cutoff that stops heat when temperatures get too high to help protect the appliance and surrounding components. It provides a simple, reliable way to interrupt power to the heating circuit when a dangerous temperature is detected. What it does:

• Senses excessive temperature and opens the circuit to stop the heater from continuing to heat
• Commonly replaces a thermostat that has failed open or trips repeatedly
• Can resolve symptoms like no heat after a long run, intermittent heating, or overheating/shutoff during operation
• Acts as a safety device to prevent damage from sustained overheating

• One high-limit thermostat

• Always disconnect power (unplug or switch off breaker) before servicing the appliance
• Handle and mount the thermostat carefully; avoid bending or damaging the sensing element
• Reconnect wiring to the same terminals and secure any mounting clips or brackets

Secures the air plenum bracket to the tub in your laundry center. Replace if missing, stripped, or damaged to maintain proper plenum alignment.

Prevents water backflow and siphoning in your laundry center. This inline check valve stops reverse flow to protect drain and water systems. Easy install.

This water inlet tube clamp secures the refrigerator/ice maker water inlet tube to the housing, helping prevent leaks and tube movement. Designed to keep the fill line stable for reliable water and ice delivery. What it does:

• Holds the water inlet tube in place to reduce stress and movement at the connection
• Helps prevent chafing or kinking that can lead to leaks or flow restriction
• Maintains proper alignment of the fill line during normal use and servicing
• Fits where the inlet tube passes through or attaches to the fridge housing

• Turn off power and water supply before servicing the appliance
• Accessible from inside the refrigerator or behind the toe grille depending on model; remove panels as needed
• Inspect tubing and fittings; replace clamp only if it matches OEM fit and function

This condenser tank-to-tub seal creates a watertight connection between the condenser tank and the washer tub to help prevent leaks and protect internal components from moisture damage. It restores the factory seal where the tank meets the tub. What it does:

• Seals the joint between the condenser tank and the tub to stop water from leaking into the cabinet area
• Helps prevent moisture-related damage and corrosion to nearby components
• Reduces puddling or dripping during drain and spin cycles
• Restores original sealing performance after wear, cracking, or deformation

• Disconnect power and shut off water supply before beginning any repairs.
• Access typically requires removing the washer front or top panel and disassembling the condenser/tub interface; use appropriate hand tools.
• Inspect mating surfaces for damage or residue and clean before installing the new seal to ensure a proper fit.

Fix inaccurate temperature readings or dryer not heating issues with this laundry center thermistor grommet. Simple DIY repair in under 30 minutes.

If your laundry center isn't drying properly or shows moisture buildup, the condenser tank may need replacement. This tank collects moisture during drying.

This replacement gasket seals the junction between the condenser tank and the air plenum to help maintain proper airflow and thermal separation. It restores the seal that prevents air leakage and supports consistent refrigerator cooling performance. What it does:

• Creates an airtight seal between the condenser tank and air plenum to prevent unwanted air exchange
• Helps maintain designed airflow for consistent cooling and temperature control
• Reduces risk of frost buildup or uneven cooling caused by air leaks
• Can help reduce abnormal air noises from the condenser/plenum area when the seal is compromised

• One condenser tank-to-air plenum gasket

• Disconnect power to the appliance before service to avoid electrical hazards
• Remove any access panels and clear obstructing components to reach the condenser/plenum joint
• Clean mating surfaces of debris and old gasket material for a proper seal; press new gasket into place without stretching

Fix poor airflow or overheating in your laundry center with this fan motor and bracket assembly. Restores proper cooling and quiet operation.

Fix overheating shutdowns with this safety thermostat. Restores high-limit protection when temperatures exceed safe levels. Simple replacement part.
