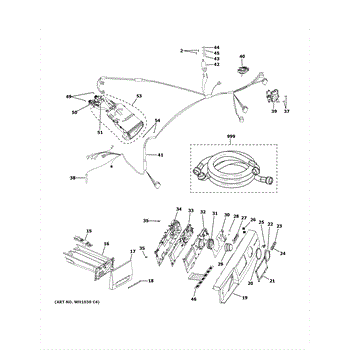

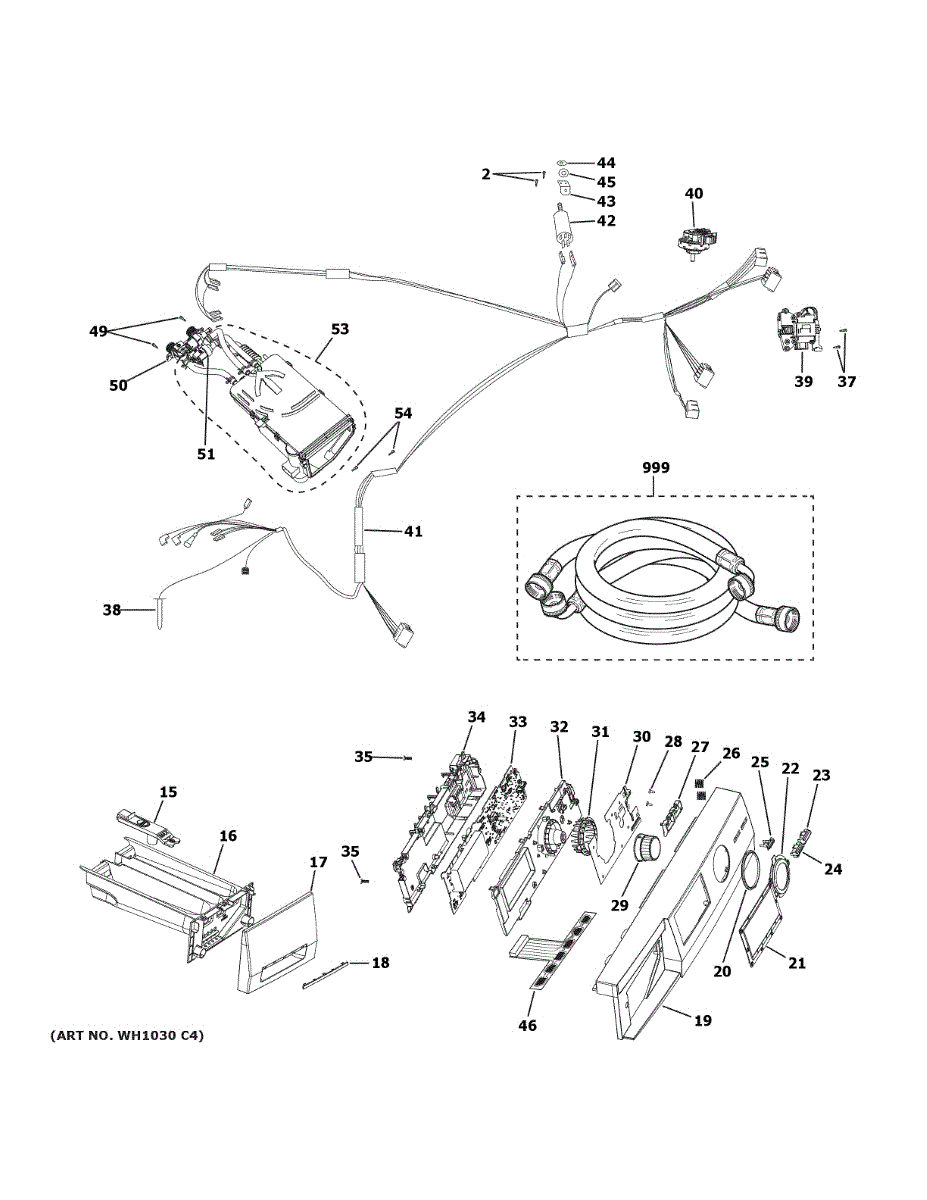

Parts for HLC1700AXS: Controls & Dispenser Parts

This is a ST3.5 x 12 self-tapping screw designed to secure trim, panels, and small appliance components. It replaces stripped or missing screws to restore proper fit and reduce movement or vibration. What it does:

• Fastens appliance panels, brackets, or trim where ST3.5 x 12 screws are specified
• Helps stop rattling, loose panels, or parts that shift during operation
• Provides a secure threaded hold in thin sheet metal or plastic mounting points
• Matches OEM fit where the WH02X26267 screw is specified

• Use the properly sized Phillips driver to avoid cam-out and head damage
• Start screws straight and apply steady pressure; do not over-torque to prevent stripping
• Wear eye protection when working with small fasteners and sharp edges
• Compare size and thread to ensure a proper match

A Softener Syphon Cap that seals the softener/brine syphon assembly to help maintain proper dispensing and prevent leaks. Fits the syphon tube area of the softener system to keep water and salt directed where intended. What it does:

• Seals the softener syphon/brine tube to prevent leaks at the dispenser assembly
• Helps maintain correct flow for softener dispensing so the unit can deliver treated water
• Can resolve symptoms like visible leaking around the syphon area or poor softener dispensing
• Simple replacement for worn, cracked, or missing caps that no longer seat securely

• One Softener Syphon Cap

• Recommended for users comfortable with basic appliance disassembly; unplug or disconnect power and water before servicing
• Remove the dispenser/softener access per your model's service instructions to reach the syphon cap
• Inspect surrounding O-rings, hoses, and mounting surfaces and replace if damaged to ensure a watertight seal

This dispenser drawer is the replacement drawer tray that sits under the refrigerator dispenser to collect spills and route dispensed water/ice. Restores clean appearance and proper drip collection at the dispenser opening. What it does:

• Replaces a cracked, warped or missing dispenser tray that allows leaks or drips under the dispenser.
• Guides dispensed water and ice into cups and prevents spills from reaching the cabinet interior.
• Helps keep the dispenser area sanitary by catching drips and easy-to-clean surface.
• Fits into the dispenser housing and aligns with the dispenser chute for normal operation.

• 1 dispenser drawer

• Remove power to the appliance before starting any work; follow OEM safety instructions.
• Typically installs by sliding into the dispenser housing; no special tools required for most models.
• Inspect surrounding dispenser components (gaskets, chute) for wear while replacing the drawer.
• Do not use excessive force when seating the drawer to avoid damaging clips or housing.

This dispenser drawer handle replaces a cracked, broken or worn handle on the fridge dispenser drawer for reliable opening and a clean, finished look. Restores normal grip and operation for dispensing areas. What it does:

• Replaces a damaged or loose dispenser drawer handle so the drawer opens and closes securely
• Restores original appearance when the handle is scratched, chipped or cosmetically worn
• Helps prevent the drawer from catching or sticking due to a broken handle
• Matches the dispenser drawer trim for a cohesive finish

• Disconnect power to the appliance before starting any repair
• Remove drawer and trim per your model's service instructions; handle typically attaches with screws or clips
• Handle hardware may be reused from the old part; keep small fasteners safe during replacement

This is the front control panel assembly that provides the user interface and mounting for the cooktop/oven controls, restoring a clean, finished appearance and responsive control operation. What it does:

• Replaces a damaged, cracked, or cosmetically worn control panel to restore normal button and display access
• Houses the control buttons/keys and display window used to select functions and settings
• Addresses symptoms like unresponsive buttons, peeling or dented panel surface, or visible cosmetic damage
• Provides the structural mounting surface for the control electronics and fascia

• Disconnect power (unplug or shut off circuit breaker) before service to avoid shock or injury
• Handle edges and mounting tabs carefully—panel may have sharp metal edges
• Installation typically requires removing the range/oven front or cooktop; keep removed fasteners for reassembly
• If control electronics are separate, verify correct mating and routing of ribbon cable/connectors before reassembly

This molded light guide directs the control-panel lamp to the appliance's start button for clear, visible illumination. It restores even light transmission and improves button visibility so you can see the start control at a glance. What it does:

• Channels LED or lamp light to the start button so the button appears evenly lit.
• Replaces cracked, cloudy, or missing guides that cause dim or uneven lighting.
• Helps restore normal appearance of the control panel without replacing electronic components.
• Works with the existing lamp/LED; does not include a bulb or LED.

• Disconnect power before servicing to avoid shock or accidental starts.
• Access the control panel per your model's service instructions; typically snaps or screws secure trim.
• Press-fit or snap the guide into the button bezel—do not force or bend the part.
• After installation, restore power and verify the start button illuminates correctly; if lighting still fails, check the lamp/LED and wiring.

This user interface assembly is the control panel for your appliance, letting you select cycles and see status indicators. A direct-fit replacement for a worn or non-working control panel to restore normal operation and controls. What it does

• Provides the touchpad/buttons and display LEDs used to select cycles, options, and start/stop functions
• Sends user commands to the main control board and shows cycle status and error indicators
• Commonly replaced when buttons are unresponsive, the display is blank or garbled, or status lights act erratically
• Restores reliable user control and visible feedback when the original interface fails

• Disconnect power to the appliance before starting any repair to avoid shock hazard
• Handle the assembly and ribbon/plug connectors carefully to avoid damage to the display and flex cable
• Remove the console/trim as required; keep track of screws and grounding clips for reassembly
• Reconnect all plugs in their original positions and verify function before fully reassembling

The Screw is an OEM part for GE washing machines. Specifically, an #8-32 thread forming screw is used throughout internal assemblies for tightening and securing components.

Symptoms of needing replacement screw include:

• Stripped, cross-threaded, or severely worn existing screws
• Screw heads sheared or broken off inside fixtures
• Loosened panels, covers, or parts from backing-out fasteners

Causes involve fatigue, damage, or rusting of individual screws degrading their clamping abilities over extended use cycles.

This GE OEM replacement screw ensures proper compression and attachment of fixtures. Rely on quality fasteners to preserve structural integrity. Order spares and replace problematic screws today before further issues arise from detached or weakened joints.

Compatible with some Hotpoint, RCA, and Kenmore models, GE #8-32 screws are essential for thorough washer repairs and maintenance.

This thermistor is a refrigerator temperature sensor that tells the control board the appliance's internal temperature so cooling cycles run correctly. Replaces a failed sensor to restore accurate temperature feedback and more consistent cooling. What it does:

• Monitors evaporator/freezer compartment temperature and sends readings to the control board
• Helps the refrigerator cycle the compressor and fans at the right times
• Commonly linked to symptoms like incorrect temperatures, frequent cycling, or compressor running constantly
• Works as the sensor used by the appliance's temperature control and defrost logic

• Disconnect power before servicing to avoid shock or injury
• Handle the sensor and wiring gently to avoid damaging the leads or connector
• Route and secure wiring the same way as the original to prevent chafing or interference

The Door Lock is an OEM part for GE front-loading washers. As a safety mechanism, the door lock is responsible for securely latching the washer door shut during operation to prevent it from opening accidentally.

Causes of a bad door lock can include general wear and tear over time, damage from forced or improper operation of the lock mechanism, or failures in the electronic control board that operates the lock solenoid.

Symptoms of a failed door lock include:

• The door does not latch fully when closed
• Unintentional opening of the door during a cycle
• Inability to start a cycle with the door unlocked
• Errors related to the door lock system

Replacing with this genuine GE OEM part restores the washer's important safety functions. It is also compatible with some Kenmore and other brands that use GE components.

This motor start capacitor helps the appliance's motor start and run more reliably by providing the extra torque needed at startup. Replacing a worn capacitor can restore normal motor operation and reduce hard-start symptoms. What it does:

• Supplies a short surge of power to the motor at startup to help it turn over
• Commonly replaced when the motor hums, struggles to start, or won't start at all
• Helps prevent repeated hard starting that can stress the motor and controls
• Works as a single electrical component; compatibility varies by model

• Electrical component — disconnect power at the breaker before servicing
• Verify capacitor discharge before touching terminals to avoid shock
• Inspect wiring and terminal connections; replace any damaged connectors

This flat metal washer provides a stable bearing surface for a fastener, helping distribute load and protect surfaces for reliable appliance assembly. It's a simple hardware replacement that restores proper fastening and reduces wear. What it does:

• Provides a smooth, even surface for nuts or bolts to bear against
• Distributes clamping force to prevent damage to panels or components
• Helps reduce loosening and vibration-related rattles
• Protects mating surfaces from wear and deformation

• Disconnect power and water to the appliance before accessing internal components
• Use appropriate tools; avoid over-tightening which can deform the washer or strip threads
• If corrosion or other damage is present, inspect surrounding fasteners and replace as needed

These mounting screws secure the refrigerator water inlet valve to the appliance frame, keeping the valve and water line stable during normal use. Replacing worn or missing screws restores proper valve alignment and reduces vibration. What it does:

• Fastens the water inlet valve to the cabinet or bracket so the valve stays in place
• Prevents valve movement that can stress supply lines or cause noise during fill cycles
• Helps maintain a consistent seal at the valve connection to reduce risk of leaks
• Restores factory mounting hardware fit after loss or corrosion

• Disconnect power to the appliance and shut off the water supply before installing
• Use the correct screwdriver or driver bit to avoid stripping heads
• Replace only with the exact screw size and type for proper fit; do not over-tighten
• Inspect surrounding valve and tubing for damage while mounting; tighten connections to manufacturer torque recommendations

This water inlet hose assembly replaces worn or damaged inlet tubing to restore water flow to your appliance. It delivers a simple replacement option to stop leaks and maintain reliable water supply. What it does

• Connects the household water line to the appliance inlet to supply water for operation
• Replaces cracked, leaking, or brittle inlet tubing that can cause drips or reduced water flow
• Helps prevent water damage by restoring a proper, secure water connection
• Compatible with applications that use a flexible inlet hose assembly

• One inlet hose assembly

• Turn off water supply and unplug appliance before replacing the hose
• Inspect fittings and replace any worn clamps or seals to ensure a watertight connection
• Tighten connections by hand then snug with a wrench—do not overtighten
• After installation, check for leaks and run a short water cycle to confirm proper flow
