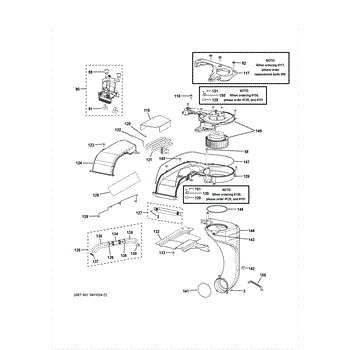

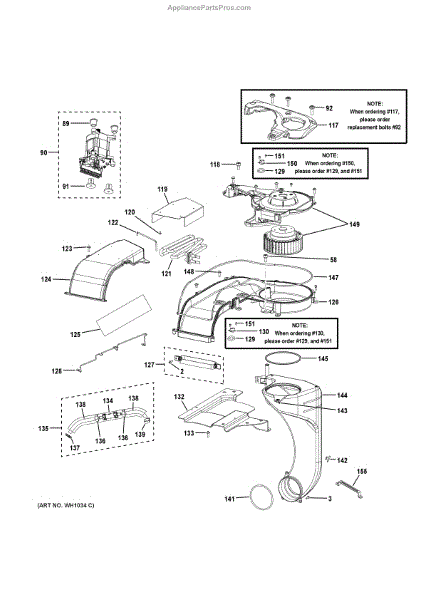

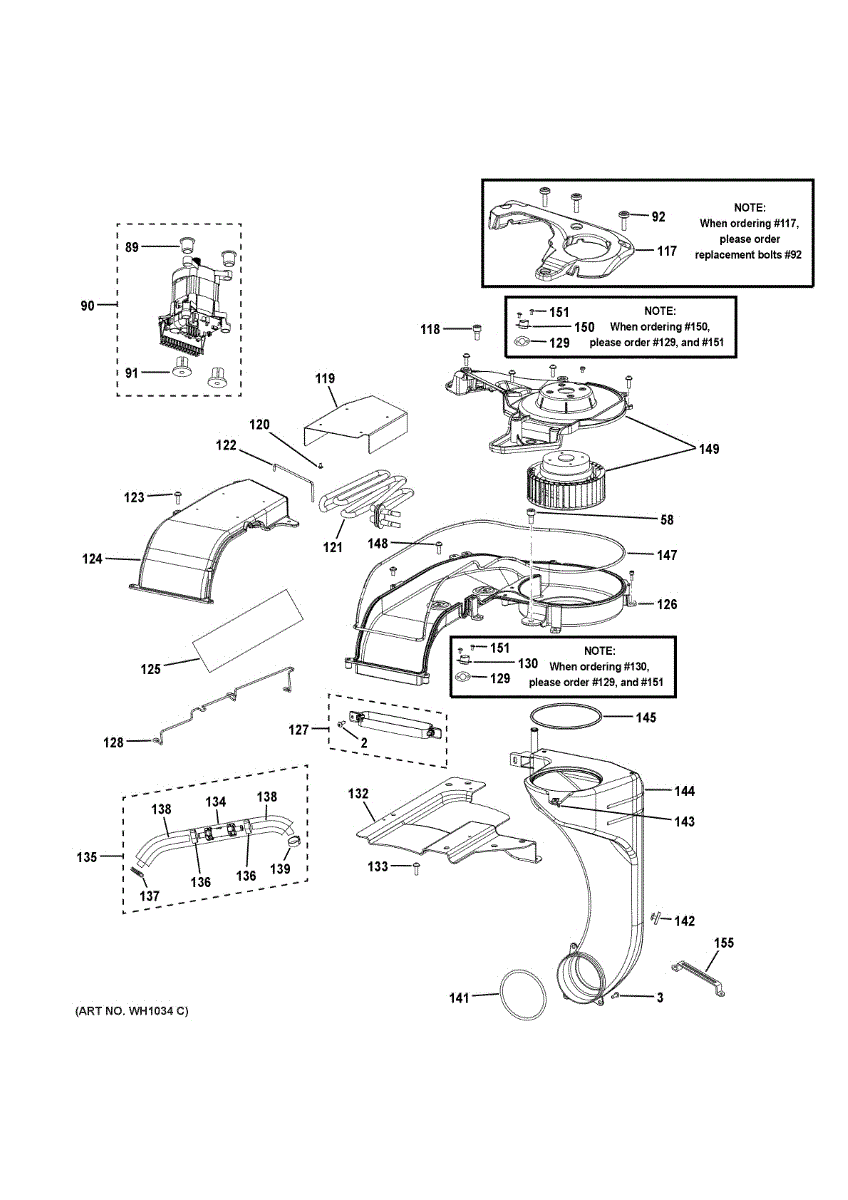

Parts for HLC1700AXW: Blower & Heating System Parts

This is a ST3.5 x 12 self-tapping screw designed to secure trim, panels, and small appliance components. It replaces stripped or missing screws to restore proper fit and reduce movement or vibration. What it does:

• Fastens appliance panels, brackets, or trim where ST3.5 x 12 screws are specified
• Helps stop rattling, loose panels, or parts that shift during operation
• Provides a secure threaded hold in thin sheet metal or plastic mounting points
• Matches OEM fit where the WH02X26267 screw is specified

• Use the properly sized Phillips driver to avoid cam-out and head damage
• Start screws straight and apply steady pressure; do not over-torque to prevent stripping
• Wear eye protection when working with small fasteners and sharp edges
• Compare size and thread to ensure a proper match

A single self-tapping screw used to secure appliance panels and trim for a stable, vibration-free fit. Replaces a lost or damaged mounting screw to restore proper part attachment and reduce rattling. What it does:

• Fastens control panels, brackets, trim pieces or small assemblies to metal or plastic surfaces
• Creates its own threads for a tight hold in sheet metal or molded openings
• Helps eliminate loose parts that can cause noise, vibration, or misalignment
• Commonly used where original screws have stripped, corroded, or been lost

• One tapping screw (quantity: 1)

• Use the correct-size Phillips or Torx driver to avoid cam-out or head damage
• Start straight and apply steady pressure; do not overtighten to prevent stripping or cracking
• Disconnect power and remove any panels before working
• If threads are damaged, replace the mating fastener or insert before installing this screw

This ground screw secures an appliance's chassis grounding connection to ensure a reliable electrical ground and help reduce the risk of shock or electrical faults. Simple replacement when the original screw is missing, damaged, or corroded. What it does:

• Fastens the appliance ground wire or grounding strap to the metal chassis for a secure electrical ground.
• Restores a proper grounding point when the original screw is loose, stripped, corroded, or missing.
• Helps address symptoms related to poor grounding, such as intermittent power, electrical noise, or tripped breakers (as reported).
• Provides a direct, stable connection that supports safe appliance operation.

• One ground screw

• Disconnect power to the appliance before attempting any repairs to avoid electrical shock.
• Tighten to snug contact with the chassis; avoid overtightening which can strip threads or damage the metal.
• If ground wire or chassis threads are damaged, inspect for necessary additional parts or repair.

The Motor is an OEM component specifically designed for GE washing machines. It provides the power and torque necessary to spin wet laundry during the extraction phase of the wash cycle.

Symptoms of a bad motor include:

• Washer fails to agitate or spin clothes
• Abnormal noises coming from the motor during the operation
• Vibrations felt in the washer tub or surrounding cabinetry
• Slow or weak agitation that fails to properly clean clothes

Causes of motor failure can include normal wear and tear over extended use, impact incidents, or blockages that prevent free operation.

This OEM GE replacement motor is compatible with some Hotpoint, RCA, and Kenmore models. Quality GE components ensure optimal performance wash after wash. Replace your worn motor today for repaired extraction and spinning functions.

This bolt with pre-applied Loctite secures mating parts and helps resist loosening from vibration, keeping assemblies stable. Use when replacing a single fastener that requires thread locker for reliable hold. What it does:

• Fastens components together while the Loctite helps prevent the bolt from backing out under vibration
• Commonly used on mounting brackets and assemblies that experience movement or torque
• Restores original fastening strength when the original bolt or threadlocker is worn or damaged
• Safe, direct-replacement part intended to match the OEM fastener and finish

• One bolt with pre-applied Loctite

• Tighten to the appliance manufacturer's specified torque; over-tightening can damage threads or components
• Allow threadlocker to cure per manufacturer's recommended time before stressing the joint
• Replace only the fastener(s) specified by the manufacturer—do not substitute unless confirmed compatible

This replacement belt protector bolt secures the dryer belt protector to the cabinet, keeping the belt aligned and shielded during operation. Durable metal construction restores proper routing and helps prevent belt wear or rubbing. What it does

• Fastens the belt protector to the dryer frame to maintain correct belt position.
• Prevents the belt from contacting sharp edges or rubbing against the cabinet.
• Helps reduce noise and premature belt wear caused by a loose protector.
• Small OEM fastener designed to match factory fit and function.

• One belt protector bolt.

• Disconnect power to the appliance before starting any repairs.
• Requires basic hand tools (screwdriver or socket) to remove/install.
• Hand-start threads and tighten securely; avoid over-tightening to prevent stripping.
• Verify belt alignment and protector position before restoring power and testing.

This heated air plenum cover gasket seals the dryer plenum to help direct warm air through the drum and prevent air leaks. It restores proper airflow and reduces heat loss for more efficient drying. What it does:

• Seals the joint between the heated air plenum and the housing to prevent air leaks
• Helps maintain consistent dryer temperature and airflow
• Can reduce drying time caused by escaping heated air
• Commonly replaced when gasket is torn, compressed, or missing

• One heated air plenum cover gasket

• Designed for direct replacement; remove dryer power before servicing
• Inspect surrounding plenum and fasteners; replace any damaged clips or screws
• Gasket typically installs by pressing into place around the plenum opening

This high-limit thermostat is a temperature-sensing safety cutoff that stops heat when temperatures get too high to help protect the appliance and surrounding components. It provides a simple, reliable way to interrupt power to the heating circuit when a dangerous temperature is detected. What it does:

• Senses excessive temperature and opens the circuit to stop the heater from continuing to heat
• Commonly replaces a thermostat that has failed open or trips repeatedly
• Can resolve symptoms like no heat after a long run, intermittent heating, or overheating/shutoff during operation
• Acts as a safety device to prevent damage from sustained overheating

• One high-limit thermostat

• Always disconnect power (unplug or switch off breaker) before servicing the appliance
• Handle and mount the thermostat carefully; avoid bending or damaging the sensing element
• Reconnect wiring to the same terminals and secure any mounting clips or brackets

A small replacement screw that secures the air plenum bracket to the tub, helping keep the plenum aligned for proper airflow and quiet operation. Useful when the original fastener is missing, stripped, or damaged. What it does:

• Fastens the air plenum bracket to the washer/dryer tub to maintain proper alignment
• Prevents gaps that can cause air leaks or reduced drying/airflow performance
• Helps reduce vibration and rattling caused by a loose plenum assembly
• Restores secure attachment after strip-out, corrosion, or lost hardware

• Disconnect power to the appliance before beginning any repair.
• Access may require removal of panels or the plenum assembly; keep fasteners organized.
• Use the correct screwdriver or bit and tighten snugly — avoid over-tightening which can strip threads.
• Inspect bracket/tub and replace any stripped inserts or damaged parts as needed.

This one-way valve allows fluid to flow in a single direction to prevent backflow and protect appliance water and drain systems. It's a small inline replacement that restores proper one-way flow for normal operation. What it does

• Stops reverse flow to prevent siphoning or backflow into supply or drain lines
• Helps maintain proper water flow for filling, dispensing, or draining cycles
• Common symptom: water flows back into lines or appliance after cycle completes
• Common symptom: appliance won't fill/dispense correctly due to return flow

• One one-way valve

• Disconnect power and shut off water supply before servicing
• Replace the valve inline where original is located; match flow direction marking
• Use proper clamps or fittings and check for leaks after installation

This water inlet tube clamp secures the refrigerator/ice maker water inlet tube to the housing, helping prevent leaks and tube movement. Designed to keep the fill line stable for reliable water and ice delivery. What it does:

• Holds the water inlet tube in place to reduce stress and movement at the connection
• Helps prevent chafing or kinking that can lead to leaks or flow restriction
• Maintains proper alignment of the fill line during normal use and servicing
• Fits where the inlet tube passes through or attaches to the fridge housing

• Turn off power and water supply before servicing the appliance
• Accessible from inside the refrigerator or behind the toe grille depending on model; remove panels as needed
• Inspect tubing and fittings; replace clamp only if it matches OEM fit and function

This condenser tank-to-tub seal creates a watertight connection between the condenser tank and the washer tub to help prevent leaks and protect internal components from moisture damage. It restores the factory seal where the tank meets the tub. What it does:

• Seals the joint between the condenser tank and the tub to stop water from leaking into the cabinet area
• Helps prevent moisture-related damage and corrosion to nearby components
• Reduces puddling or dripping during drain and spin cycles
• Restores original sealing performance after wear, cracking, or deformation

• Disconnect power and shut off water supply before beginning any repairs.
• Access typically requires removing the washer front or top panel and disassembling the condenser/tub interface; use appropriate hand tools.
• Inspect mating surfaces for damage or residue and clean before installing the new seal to ensure a proper fit.

This replacement gasket seals the junction between the condenser tank and the air plenum to help maintain proper airflow and thermal separation. It restores the seal that prevents air leakage and supports consistent refrigerator cooling performance. What it does:

• Creates an airtight seal between the condenser tank and air plenum to prevent unwanted air exchange
• Helps maintain designed airflow for consistent cooling and temperature control
• Reduces risk of frost buildup or uneven cooling caused by air leaks
• Can help reduce abnormal air noises from the condenser/plenum area when the seal is compromised

• One condenser tank-to-air plenum gasket

• Disconnect power to the appliance before service to avoid electrical hazards
• Remove any access panels and clear obstructing components to reach the condenser/plenum joint
• Clean mating surfaces of debris and old gasket material for a proper seal; press new gasket into place without stretching

This fan motor and bracket assembly powers and secures the appliance fan to restore proper airflow and cooling. It replaces a worn or failed fan motor so the unit can move air quietly and reliably. What it does:

• Spins the fan blade to circulate air across coils or through the cabinet for efficient cooling
• Stabilizes and positions the motor with a stamped mounting bracket for proper alignment
• Stops common symptoms like reduced airflow, warm compartments, or unusual fan noise
• Restores ventilation needed to prevent overheating of components

• Disconnect electrical power before starting any work.
• Support the fan and bracket during removal to avoid bending the bracket or damaging the blade.
• If wiring terminals differ, transfer connectors exactly as found.

Manual reset thermostat provides an oven/range high-limit safety cutoff to stop heating when temperatures exceed safe levels. Replacing a failed thermostat restores over-temperature protection and can stop repeated thermal shutdowns. What it does:

• Acts as a temperature safety cutoff that interrupts power to the heating element when temps exceed the thermostat's limit.
• Helps prevent overheating by shutting the circuit until the thermostat is manually reset.
• Common replacement when an oven or broiler stops heating, won't maintain temperature, or repeatedly trips off.
• Mechanical design offers a manual reset after an over-temperature event; a thermostat that won't reset usually needs replacement.

• Always disconnect power to the appliance at the breaker or unplug before inspecting or replacing the thermostat.
• Note or photograph wire locations before removal; reconnect wires to the same terminals and secure all connections.
