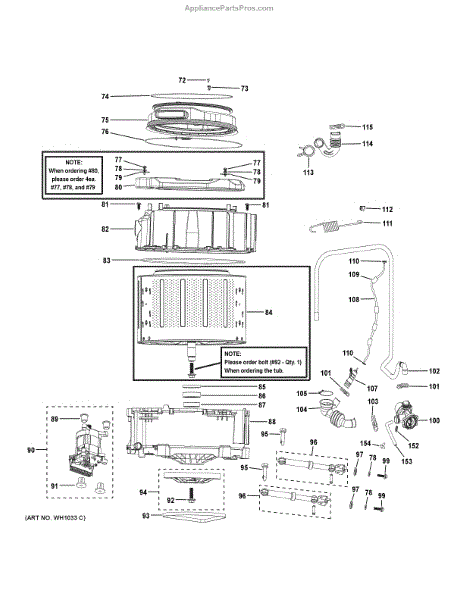

Parts for HLC1700AXW: Tub & Motor Parts

This genuine replacement screw secures appliance panels and components to restore proper fit and reduce movement. It's a simple, direct fastener used where original mounting hardware has become lost, stripped, or damaged. What it does:

• Fastens panels, brackets, or trim to the appliance chassis
• Restores secure mounting to eliminate rattles or loose parts
• Replaces worn, stripped, or missing hardware with an OEM matching fastener
• Helps maintain proper alignment of control panels and access covers

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to prevent stripping the screw head
• Hand-start threads before final tightening and avoid overtightening
• Keep removed screws organized during disassembly to ensure correct reinstallation

This plastic anchor secures panels and trim by giving screws a strong hold in drywall or thin materials, restoring a firm fit and preventing loose or sagging parts. Use when mounting or reattaching interior panels and trim. What it does:

• Provides a secure anchor point for screws in drywall, plaster, or thin panel materials
• Prevents trim, kickplates, and panels from pulling loose or wobbling
• Lets screws bite reliably where material alone won't hold
• Helps eliminate rattling or misaligned panels caused by stripped or missing anchors

• Disconnect power to the appliance before working near electrical components
• Drill or punch a matching-size pilot hole, then push the anchor flush into the opening
• Insert the correct-size screw and tighten until snug; avoid overtightening which can crack the anchor
• Replace any damaged anchors; use the same style and size for best fit

This outer gasket clamp secures the refrigerator door's outer gasket, keeping the door seal aligned for proper cooling and energy efficiency. It helps maintain a tight seal and reduces air leaks, condensation, and frost buildup. What it does:

• Holds the outer door gasket in position along the door frame
• Keeps the gasket edges clamped to prevent gaps that let cold air escape
• Helps reduce condensation, frost, and uneven cooling near the door
• Prevents the gasket from pulling loose or bunching during normal use

• One outer gasket clamp

• Disconnect power to the appliance before starting any repair
• Remove the door trim or inner panel as required to access the clamp
• Handle the gasket gently to avoid tearing; align clamp evenly along the gasket

The Gasket is an OEM part for GE washing machines, specifically designed to provide a water-tight seal. Found around the washer tub, door, or other components, it works to prevent leaks and contain water during cycle operations.

Symptoms of a bad gasket include:

• Puddles, drips or leaks detected under or around the washer
• Moisture damage identified to adjoining structures or flooring
• Gaps or cracks seen in existing gasket material

Causes of gasket failure involve environmental debris build-up, cracks or tears from use over time, or damage rendering it unfit to form a proper seal.

This OEM GE replacement gasket is also compatible with some Hotpoint, RCA, and Kenmore models.

This inner clamp secures the washer's door gasket to the front tub to maintain a tight, watertight seal. Replacing a stretched or damaged clamp helps stop leaks and keeps the gasket properly seated during wash and spin. What it does:

• Fastens the inner lip of the door gasket to the tub collar
• Maintains a watertight seal to prevent leaks at the door area
• Helps keep the gasket from slipping, wrinkling, or coming off
• Typical symptoms include water on the floor at the front, a loose/sagging boot, or a clamp that won't tighten

• 1 inner gasket clamp

• Disconnect power and turn off water supply before servicing
• Access the boot and inner clamp by removing the front panel/outer retainer as required by your model
• Note gasket orientation; seat it evenly on the tub lip, then tighten the new clamp uniformly
• After reassembly, run a short fill/rinse cycle and check for leaks

This flat washer fits with the refrigerator counterweight assembly to provide a stable, low-profile spacer and load distribution point. It helps secure the counterweight and reduces metal-on-metal wear for smoother door movement. What it does:

• Provides a flat bearing surface between the counterweight and mounting hardware
• Distributes load to prevent localized wear and help maintain door alignment
• Reduces metal-on-metal contact that can cause noise or abrasion
• Maintains proper spacing so the counterweight operates smoothly

• Follow the appliance manufacturer's service instructions and remove power before servicing
• Replace washer if bent, corroded, or worn to restore proper counterweight function
• Use the exact part number to ensure fit with the counterweight and mounting hardware

This rear tub is the main back housing that supports the washer drum and seals the tub assembly to keep water contained during cycles. It restores proper drum alignment and helps prevent leaks and excessive vibration. What it does:

• Provides the rear support and enclosure for the inner drum so the washer can spin and contain water
• Maintains alignment for bearings, shaft and other rotating components to reduce wobble and noise
• Helps prevent water from leaking out the back of the tub assembly when intact
• Works with seals, gaskets and bearing assemblies to maintain a watertight drum

• Disconnect power and water before starting; drain tub and follow safe service practices
• Removal typically requires supporting the drum and transferring bearings, seals or mounting hardware from the old tub
• Inspect and replace related seals, bearings and fasteners as needed for a complete repair

The Motor is an OEM component specifically designed for GE washing machines. It provides the power and torque necessary to spin wet laundry during the extraction phase of the wash cycle.

Symptoms of a bad motor include:

• Washer fails to agitate or spin clothes
• Abnormal noises coming from the motor during the operation
• Vibrations felt in the washer tub or surrounding cabinetry
• Slow or weak agitation that fails to properly clean clothes

Causes of motor failure can include normal wear and tear over extended use, impact incidents, or blockages that prevent free operation.

This OEM GE replacement motor is compatible with some Hotpoint, RCA, and Kenmore models. Quality GE components ensure optimal performance wash after wash. Replace your worn motor today for repaired extraction and spinning functions.

This bolt with pre-applied Loctite secures mating parts and helps resist loosening from vibration, keeping assemblies stable. Use when replacing a single fastener that requires thread locker for reliable hold. What it does:

• Fastens components together while the Loctite helps prevent the bolt from backing out under vibration
• Commonly used on mounting brackets and assemblies that experience movement or torque
• Restores original fastening strength when the original bolt or threadlocker is worn or damaged
• Safe, direct-replacement part intended to match the OEM fastener and finish

• One bolt with pre-applied Loctite

• Tighten to the appliance manufacturer's specified torque; over-tightening can damage threads or components
• Allow threadlocker to cure per manufacturer's recommended time before stressing the joint
• Replace only the fastener(s) specified by the manufacturer—do not substitute unless confirmed compatible

The Drain Pump is an OEM part for GE washing machines. Located near the bottom of the washer tub, this electric pump is responsible for efficiently draining water from the tub at the end of each cycle. Proper drainage is crucial for preventing flooding or excess moisture from being trapped inside.

Symptoms of a bad drain pump include:

• Washer fails to fully drain or drain takes an excessively long time
• Water remaining or pooling at the bottom of the tub after cycles
• Strange sounds or vibrations were heard coming from the drain pump area
• Reduced washing performance due to inadequate drainage

Causes of failure are generally wear over time, blockages in the pump chamber, or electrical issues with the pump motor.

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This clamp secures the refrigerator's internal drain hose to the air chamber so defrost and condensation water drains properly, helping prevent leaks and water buildup inside or beneath the appliance. What it does

• Fastens the internal drain hose to the air chamber to keep the drain connection sealed
• Helps direct defrost and condensation water into the drain system, reducing pooling
• Can stop common symptoms like water under the fridge, dripping inside compartments, or ice buildup from poor drainage

• One hose-to-air chamber clamp

• Disconnect power before servicing to avoid shock or injury
• Access may require removing interior panels or the evaporator cover
• Use pliers or a screwdriver as appropriate to remove and reinstall the clamp; avoid overtightening to prevent hose damage
• Inspect the hose and fittings for cracks or blockages while replacing the clamp

This external drain hose carries used water from the washer to your household drain. Replace a cracked, leaking, or kinked hose to restore proper draining performance and help prevent water spills during the drain cycle.

• Routes wastewater from the washer's drain outlet to a standpipe or sink
• Helps maintain a watertight path when correctly seated and secured
• Typical symptoms of a bad hose: leaks at the rear or floor, visible cracks/kinks, slow or incomplete draining

• Unplug the washer and turn off water supply; have towels or a pan ready for residual water
• Transfer any brackets or clamps from the old hose; push connections fully home and secure
• Route to the manufacturer-recommended standpipe height; avoid kinks and sharp bends
• Run a short fill/drain test and check all connections for leaks

This tub-to-pump hose clamp secures the washer drain hose connection between the tub and pump to help prevent leaks and ensure proper drainage. It's a direct-replacement fastening clip used where the tub hose meets the pump inlet. What it does:

• Holds the tub-to-pump drain hose firmly on the pump or tub fitting to stop leaks.
• Keeps the hose sealed under normal wash and drain cycles to maintain proper drainage.
• Commonly replaced when clamps are rusted, broken, or no longer hold tension, causing water to leak near the pump area.

• Disconnect power and water supply and drain the washer before starting work.
• Access may require removing the washer access panel or cabinet—follow manufacturer service instructions.
• Use appropriate pliers or a clamp tool; install so the clamp fully encircles the hose and fitting without pinching the hose.
• Check for leaks after reassembly and run a short drain cycle; replace the hose if it shows cracks or wear.

This internal drain hose routes defrost and condensate water from the evaporator to the refrigerator drain pan to prevent pooling and ice buildup. It's a direct-fit replacement designed for proper water flow inside the cabinet. What it does

• Channels defrost water away from the evaporator and freezer compartment to the drain pan
• Helps stop water pooling on shelves, in drawers, or on the freezer floor
• Reduces ice buildup caused by clogged or damaged drain tubing
• Restores normal drainage when original hose is cracked, pinched, or separated

• One internal drain hose

• Disconnect power to the appliance before starting any repair
• Remove food and any shelving that obstructs access to the evaporator area
• Ensure the drain path is clear and the hose is routed without sharp bends or kinks
• Use existing clamps or replace with an appropriate clamp; test by pouring a small amount of water into the evaporator area to ensure proper flow

This clamp secures the tub-to-internal drain hose connection to help prevent leaks and maintain proper drainage. A simple replacement when the original clip is corroded, broken, or no longer holds the hose tight. What it does

• Secures the drain hose to the tub/internal fitting to maintain a watertight connection
• Helps prevent water leaks and dripping from the hose junction
• Reduces risk of water pooling under the appliance or water damage during drain cycles
• Can resolve symptoms like intermittent leaking or a hose that slips off under pressure

• One tub-to-internal drain hose clamp

• Disconnect power to the appliance and turn off the water supply before beginning.
• Access the clamp via the washer's access panel or cabinet per your model's service instructions.
• Replace the clamp with the original orientation; use the appropriate pliers or clamp tool to secure without over-stressing the hose.
• Reassemble panels and run a short drain test to ensure there are no leaks.

This pressure hose is the flexible sensing tube that routes air pressure to the refrigerator's control/pressure switch, helping the appliance detect water/ice fill levels and dispenser commands. It restores a proper air path so controls can read pressure signals accurately. What it does:

• Carries pressure/air signals between the ice/water system and the control/pressure switch
• Helps the dispenser and ice maker complete fill and purge cycles properly
• Commonly replaced when kinked, cracked, or blocked and causing intermittent or failed fills
• Resolve symptoms such as weak or no dispenser flow, ice maker fill problems, or error codes related to pressure sensing

• Disconnect power and water supply before beginning any service
• Inspect connections for tight, secure seating; replace clamps if damaged
• Avoid sharp bends or kinks when routing the hose to ensure accurate pressure sensing

A replacement suspension spring that supports the washer tub and helps reduce vibration and movement during spin cycles. Restores stable operation and quieter performance when worn or broken springs allow excessive tub motion. What it does:

• Holds and stabilizes the washer inner tub to limit wobbling and banging during spin cycles
• Absorbs and distributes tub movement caused by unbalanced loads
• Helps maintain proper drum alignment for smoother operation
• Commonly replaced when tub sags, knocks, or vibrates loudly during use

• Disconnect power and water supply before beginning any repair.
• Replacement may require removing the cabinet or access panel; follow OEM service instructions.
• Support the tub while swapping springs to prevent sudden drops; use proper hand tools.
• Replace all affected suspension components for balanced support.

This tub fill hose directs incoming water from the inlet to the washer tub and includes a clamp for a secure connection. It restores proper water flow and prevents leaks at the tub connection point. What it does:

• Replaces a worn, cracked, or leaking fill hose to stop water drips and pooling.
• Ensures a sealed path for incoming wash water to reach the tub during fill cycles.
• Helps prevent water damage and maintains consistent fill performance.
• Compatible with standard tub inlet connections where this clamp-style hose is used.

• One tub fill hose with one tub clamp as shown.

• Disconnect power and water supply before starting any repair.
• Confirm orientation and seating of hose on the tub inlet; tighten clamp securely but avoid overtightening.
• Inspect surrounding hoses and fittings while replacing; replace any brittle or damaged components.

This pump water release hose routes water from the pump to the drain, helping remove excess water quickly and reliably. It replaces worn or damaged hoses to stop leaks and restore proper draining. What it does:

• Channels discharged water from the pump to the drain path
• Prevents pooling behind panels and under the unit when functioning correctly
• Commonly replaced when cracked, split, collapsed, or leaking
• Helps resolve symptoms like water leaks under the appliance or incomplete drainage

• Disconnect power and shut off water supply before servicing.
• Inspect hose routing and clamps; replace clamps if corroded or damaged.
• Ensure hose is free of kinks and properly seated on pump and drain fittings.
• Test for leaks after installation and before reassembling panels.

A small service plug that seals the washer drain/pump housing and gives a service access point to release trapped water during maintenance. Helps contain water when installed and provides a way to drain the pump without removing the entire assembly. What it does

• Seals the pump/drain housing to prevent leaks from the service access point.
• Provides an access port for releasing or draining residual water during repair or maintenance.
• Enables easier removal of trapped debris or small clogs near the pump inlet.
• Restores a watertight service opening when properly installed.

• Disconnect power and shut off water supply before servicing the appliance.
• Drain remaining water from the tub or pump area before removing the plug to avoid spills.
• Hand-start threading then tighten securely; do not overtighten to avoid damaging the housing.
• Inspect sealing surfaces and replace any worn gaskets or O-rings to ensure a watertight fit.
