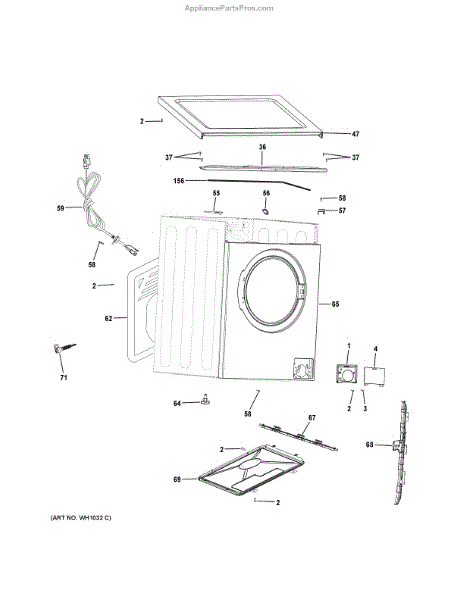

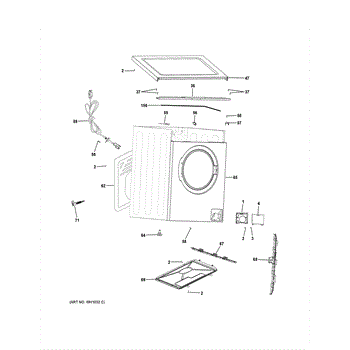

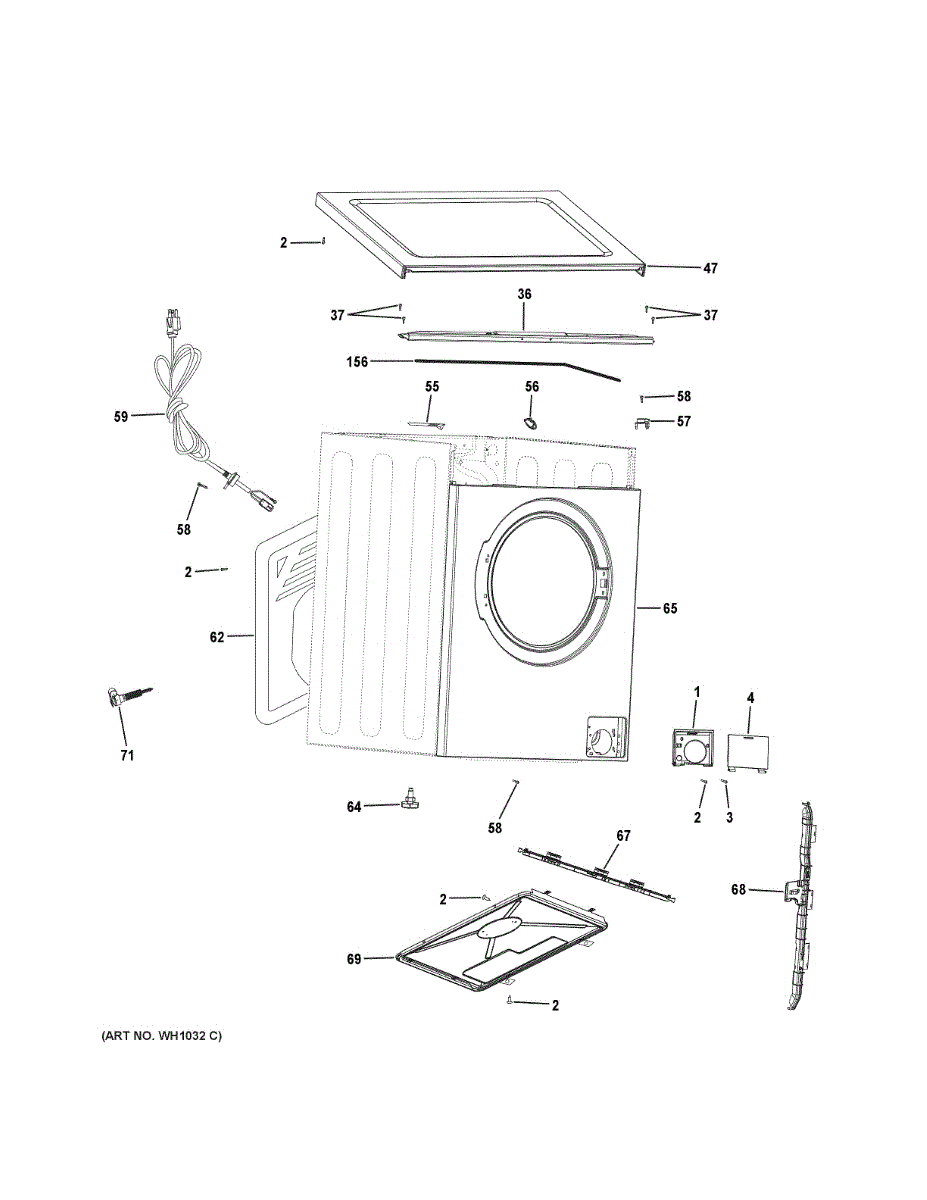

Parts for HLC1700AXW: Cabinet & Top Panel Parts

This outer access door frame is the replacement trim that secures and finishes the access panel on compatible appliances. It restores appearance and helps keep the access area properly aligned for service access. What it does:

• Provides the outer trim around the appliance access door so the panel sits flush and looks finished
• Holds the access panel in place to maintain proper alignment during use
• Helps prevent dirt and debris from entering the service access area
• Restores cosmetic appearance if the original frame is cracked, bent, or discolored

• One access door frame (outer trim)

• Disconnect power to the appliance before beginning any service
• Removal typically requires loosening screws or clips around the access area; retain fasteners for reinstallation
• Handle trim carefully to avoid scratching the finish; some repositioning of the access panel may be needed for fit

This is a ST3.5 x 12 self-tapping screw designed to secure trim, panels, and small appliance components. It replaces stripped or missing screws to restore proper fit and reduce movement or vibration. What it does:

• Fastens appliance panels, brackets, or trim where ST3.5 x 12 screws are specified
• Helps stop rattling, loose panels, or parts that shift during operation
• Provides a secure threaded hold in thin sheet metal or plastic mounting points
• Matches OEM fit where the WH02X26267 screw is specified

• Use the properly sized Phillips driver to avoid cam-out and head damage
• Start screws straight and apply steady pressure; do not over-torque to prevent stripping
• Wear eye protection when working with small fasteners and sharp edges
• Compare size and thread to ensure a proper match

A single self-tapping screw used to secure appliance panels and trim for a stable, vibration-free fit. Replaces a lost or damaged mounting screw to restore proper part attachment and reduce rattling. What it does:

• Fastens control panels, brackets, trim pieces or small assemblies to metal or plastic surfaces
• Creates its own threads for a tight hold in sheet metal or molded openings
• Helps eliminate loose parts that can cause noise, vibration, or misalignment
• Commonly used where original screws have stripped, corroded, or been lost

• One tapping screw (quantity: 1)

• Use the correct-size Phillips or Torx driver to avoid cam-out or head damage
• Start straight and apply steady pressure; do not overtighten to prevent stripping or cracking
• Disconnect power and remove any panels before working
• If threads are damaged, replace the mating fastener or insert before installing this screw

This top front bracket secures the appliance's top panel to the front cabinet, restoring proper alignment and preventing rattling or gaps. A direct-fit replacement designed to match OEM mounting points and hold the top panel firmly. What it does:

• Secures the top panel to the front cabinet to maintain proper panel alignment
• Prevents top-panel movement, noise, and edge gaps that can catch clothing
• Restores correct mounting after crash, wear, or stripped fastener locations
• Works with existing screws and mounting holes to re-establish factory fit

• One top front bracket

• Inspect existing fasteners and threads; replace damaged screws or clips if needed
• Turn off and unplug the appliance before servicing; remove power and water where applicable
• Loosen or remove the top panel to access bracket mounting points
• Tighten bracket fasteners securely but avoid over-torquing to prevent strip-out

The Screw is an OEM part for GE washing machines. Specifically, an #8-32 thread forming screw is used throughout internal assemblies for tightening and securing components.

Symptoms of needing replacement screw include:

• Stripped, cross-threaded, or severely worn existing screws
• Screw heads sheared or broken off inside fixtures
• Loosened panels, covers, or parts from backing-out fasteners

Causes involve fatigue, damage, or rusting of individual screws degrading their clamping abilities over extended use cycles.

This GE OEM replacement screw ensures proper compression and attachment of fixtures. Rely on quality fasteners to preserve structural integrity. Order spares and replace problematic screws today before further issues arise from detached or weakened joints.

Compatible with some Hotpoint, RCA, and Kenmore models, GE #8-32 screws are essential for thorough washer repairs and maintenance.

This ground screw secures an appliance's chassis grounding connection to ensure a reliable electrical ground and help reduce the risk of shock or electrical faults. Simple replacement when the original screw is missing, damaged, or corroded. What it does:

• Fastens the appliance ground wire or grounding strap to the metal chassis for a secure electrical ground.
• Restores a proper grounding point when the original screw is loose, stripped, corroded, or missing.
• Helps address symptoms related to poor grounding, such as intermittent power, electrical noise, or tripped breakers (as reported).
• Provides a direct, stable connection that supports safe appliance operation.

• One ground screw

• Disconnect power to the appliance before attempting any repairs to avoid electrical shock.
• Tighten to snug contact with the chassis; avoid overtightening which can strip threads or damage the metal.
• If ground wire or chassis threads are damaged, inspect for necessary additional parts or repair.

This adjustable leveling leg restores proper height and stability to an appliance, helping reduce rocking and improve door alignment for safer, quieter operation. Fits where the original leveling foot is used. What it does:

• Raises or lowers an appliance corner to level on uneven floors
• Stabilizes washers, dryers or similar appliances to reduce vibration and movement
• Helps maintain proper door and component alignment for reliable performance
• Works as a direct replacement for a worn, stripped, or damaged leveling foot

• Leveling leg

• Turn off and unplug the appliance and remove any load before adjusting or replacing legs
• Support the appliance securely (use a jack or block) before removing the old leg
• Thread the leg in or out to adjust height; tighten until the appliance sits level and stable

These shipping bolts secure appliance components during transport to prevent movement and damage. They're used when moving or shipping the appliance and help protect internal parts until installation or setup. What it does:

• Holds internal assembly and chassis components steady during transit to reduce the risk of impact damage.
• Helps prevent rattling, shifting, or misalignment caused by movement during shipping or delivery.
• Commonly used when preparing the appliance for relocation or when manufacturer instructions call for transport fasteners.
• Not a wear item for normal operation; remove or store as directed once the appliance is installed.

• Shipping bolts

• Follow the appliance manufacturer's shipping/installation instructions for correct placement and torque.
• Disconnect power and empty the appliance before preparing for transport.
• Keep bolts in a safe place after removal — reinstall or retain per the manufacturer's guidance for future moves.
