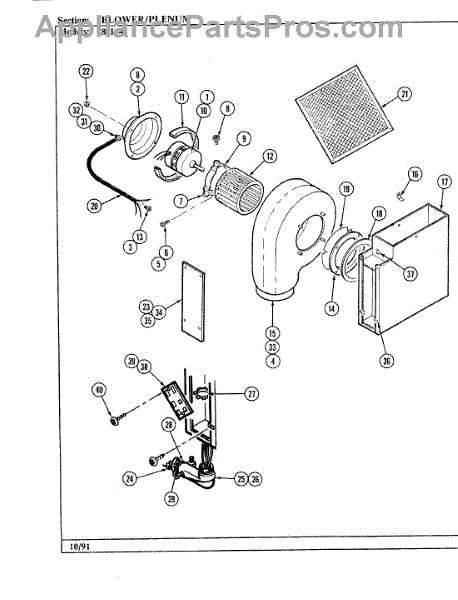

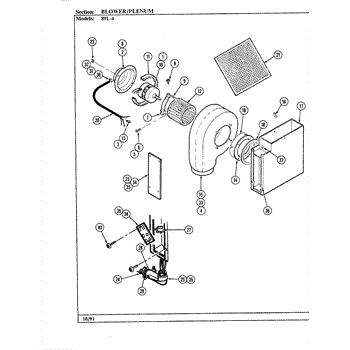

Parts for Magic Chef 89L-4: 01 - Blower (Plenum) Parts

This part has been discontinued by the manufacturer and is no longer available.

This motor isolator is a vibration-damping grommet that cushions the motor mount to reduce noise and prevent metal-to-metal contact. Replacing worn isolators helps keep the motor seated correctly and the appliance running quieter and smoother.

• Cushions the motor to minimize vibration transfer to the chassis
• Helps reduce rattling or buzzing noises during fan/blower operation
• Supports proper motor alignment and mounting stability
• A common maintenance item when rubber mounts become cracked, hardened, or missing

• Disconnect power and allow hot components to cool before service
• Access the motor mounting points; replace isolators in matched locations
• Inspect adjacent mounts and hardware; replace additional isolators as needed
• Do not overtighten fasteners—compress the grommet evenly without deforming it

This screw is a factory-style mounting fastener used to secure appliance panels and components. It replaces worn, stripped, or missing screws to restore proper fit and reduce rattling. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Keeps components aligned to prevent vibration and noise
• Replaces damaged or corroded fasteners that can cause loose parts
• Helps maintain safe, stable operation of moving or load-bearing assemblies

• Turn off power and unplug the appliance before servicing
• Use the correct driver bit and match thread engagement to avoid stripping
• Tighten snugly but avoid over-torquing which can crack plastic or strip threads
• Wear eye protection and keep small parts away from children and pets

This band motor is the motor assembly that powers the appliance's moving band or drive link, restoring the mechanism that enables normal rotating or indexing motion. Use it to replace a worn or failed motor for smoother operation. What it does:

• Drives the appliance's band/drive link so the linked components can rotate or index as designed
• Restores motion when the original motor is noisy, weak, or no longer turns
• Helps stop skipping or intermittent movement caused by a failed motor
• Works as the direct replacement motor when the OEM part is specified

• One band motor assembly

• Disconnect power before starting any repair to avoid shock or injury
• Installation may require removing panels and fastening the motor to the band/drive; keep hardware for reassembly
• Verify alignment and secure belt or band tension per the appliance's service instructions

This blower wheel mounts on the drive motor and pushes air through the dryer drum and out the exhaust. Replacing a worn wheel restores proper airflow for consistent drying and helps prevent overheating and nuisance shutdowns. What it does:

• Moves air across the heater, through the drum, and out the vent to remove moisture
• Helps maintain proper airflow and temperature inside the dryer
• Common failure symptoms: reduced or no airflow at the exterior vent, longer dry times, unusual scraping/thumping or vibration from the blower area, or overheating/shutoff
• Cracked fins or a stripped hub can cause the wheel to slip on the motor shaft

• 1 blower wheel

• Disconnect power and turn off gas supply before servicing
• Access the blower housing per your model's service instructions; remove the retaining hardware and replace the wheel in the same orientation
• Clean lint from the blower housing and vent path; inspect the motor shaft and blower seal for wear
• Reassemble and verify the wheel spins freely without rubbing; check airflow at the exterior vent

The Grease Filter is an OEM part for Whirlpool range hoods. It is designed to trap grease and other particles generated during cooking, preventing them from accumulating on the internal components of the range hood and ensuring efficient ventilation. It measures about 11 3/8 inches by 14 inches.

You should replace this grease filter if it becomes clogged or damaged. Causes of a bad grease filter can include heavy use, buildup of grease and food particles, or damage from cleaning or handling.

Symptoms of a bad grease filter include:

• Reduced airflow or ventilation
• Noticeable grease buildup on the range hood
• Increased cooking odors in the kitchen
• Visible damage or clogging of the filter

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

Size: 10-24X5/16-NI

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-24X5/16-NI

This replacement machine screw secures appliance panels and small components to restore proper fit and reduce vibration. Use it to replace missing or stripped fasteners so panels and brackets stay firmly attached. What it does

• Fastens panels, brackets, and small assemblies to the cabinet or chassis
• Prevents loose trim, rattling, or gaps caused by missing screws
• Holds components in correct alignment for reliable operation
• Restores original mounting when a screw is lost or damaged

• Disconnect power and unplug the appliance before accessing internal panels.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Install straight and snug; do not overtighten to prevent thread or part damage.
