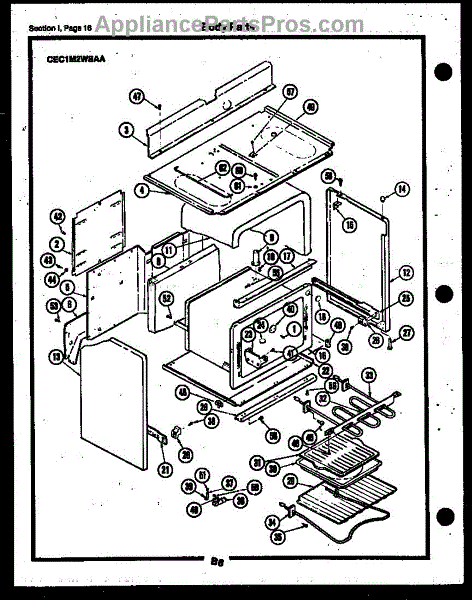

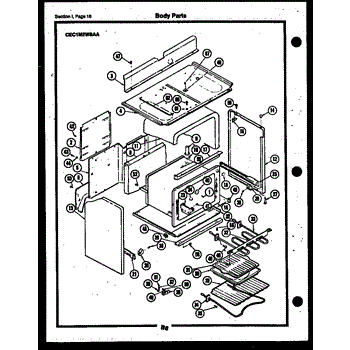

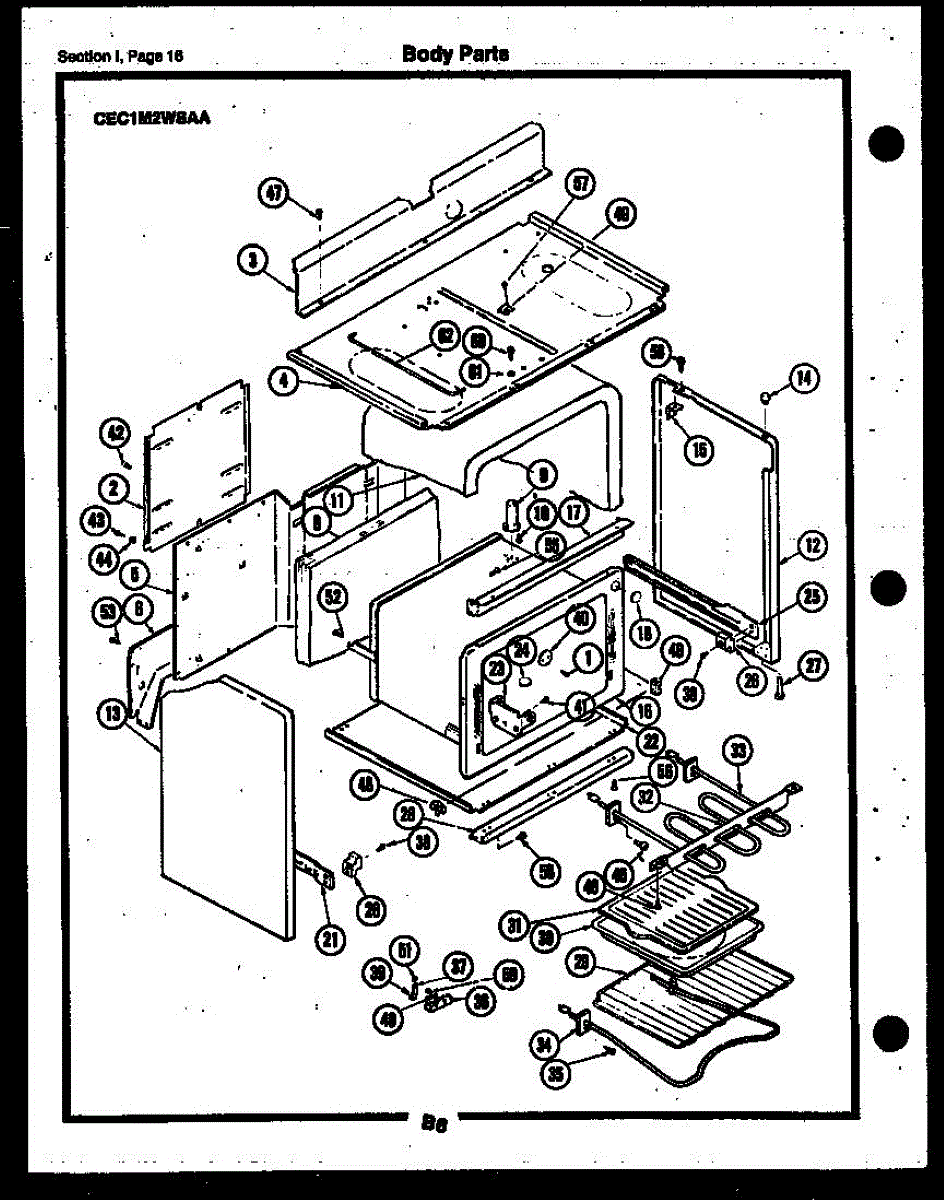

Parts for Frigidaire CEE2M4WSAA: 11 - Body Parts

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Sold individually.

This two-piece broiler pan and insert set creates a proper broiling surface in your range or wall oven. The vented top supports food while drippings collect below, helping reduce smoke and splatter for more consistent browning.

• Provides a slotted broiling surface that lets fats drain into the pan below
• Helps protect the oven cavity from spills and reduce smoke during broiling
• Replaces a missing, warped, rusted, or heavily stained broiler pan assembly
• If existing pan causes uneven browning, smoke, or odors, replacing it can restore broiling performance

• Allow the oven and racks to cool completely before handling
• Wash the new pan and insert before first use; dry thoroughly
• Set rack height per your owner's manual; seat insert on the pan and slide onto the rack
• Do not cover the insert with foil unless your manual permits; keep clear of the broil element

This broil element mounts at the top of the oven cavity and provides high, radiant heat for broiling and top-browning. Replace it if the broiler won't heat, heats unevenly, or the element shows visible damage.

• Delivers intense, top-down radiant heat for broiling and finishing dishes
• Restores broil performance when the original element is open, shorted, or weak
• Common symptoms: no broil heat, only part of the element glows, uneven browning, visible blisters/cracks, tripping the breaker
• Direct replacement designed to fit and connect to existing terminals

• Disconnect power at the breaker or unplug the range before servicing; high-voltage hazard
• Remove oven racks; take out element mounting screws and carefully pull the element forward to access terminals
• Transfer wires one at a time and support them to prevent retracting into the insulation; ensure tight, clean connections
• Reinstall screws, restore power, and test broil for an even, consistent glow

The bake element is an OEM replacement part for Frigidaire ovens. This element is located at the bottom of the oven cavity and is responsible for providing the heat needed for baking. When the oven is turned on, electrical current flows through the bake element, causing it to heat up and glow red. This process radiates heat evenly throughout the oven, ensuring that food is cooked thoroughly and uniformly.

Causes of a bad Oven Bake Element include visible damage such as blistering or holes, which can occur after years of use or from food spillages that corrode the metal. Additionally, a malfunctioning element may not glow red or may only partially heat, indicating that it's unable to conduct electricity effectively.

Symptoms of a bad Oven Bake Element include:

• The oven not heating up properly or at all
• Uneven cooking or baking results
• The element not glowing when the oven is turned on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This part has been discontinued by the manufacturer and is no longer available.
