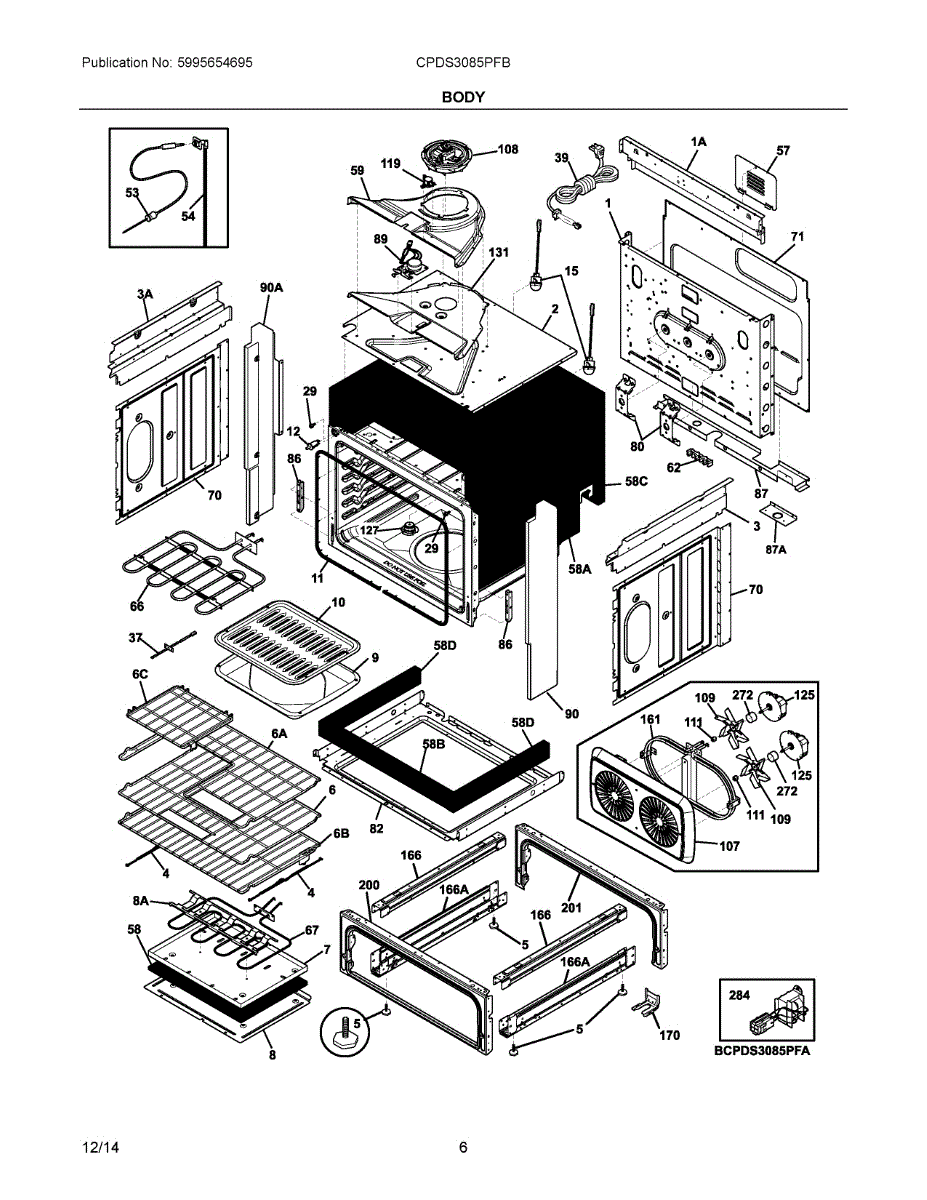

Parts for Electrolux CPDS3085PFB: 04 - Body Parts

Control panel for electric and gas ranges. Installs on the front to house buttons and display. Replace if cracked, chipped, discolored, or damaged.

Replacement control panel for your range. This front panel houses controls and display. Needed when the original panel is cracked, damaged, or worn.

This oven rack support bracket holds your oven racks at the proper level and allows them to slide in and out smoothly. It replaces bent or broken supports that cause racks to sit unevenly or bind when moving. If your oven racks are difficult to slide, sit crooked, or have fallen out of position, the support brackets need replacement.

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

Replacement oven rack for wall ovens and ranges. Installs inside oven cavity to support cookware. Order when original rack is warped, bent, or missing.

This is a rack insert designed to fit inside the oven cavity of a range. It provides an additional or replacement cooking surface for holding bakeware, roasting pans, and other items. Replace this insert if it is warped, rusted, or if the existing rack no longer sits level inside the oven.

Replacement oven rack for electric ranges. Restores a stable cooking surface when original is warped, bent, or corroded. Slides into side rails.

The Rack is an OEM part for Frigidaire ranges. It provides a sturdy surface for placing cookware and baking sheets, allowing for even cooking and optimal heat circulation within the oven.

Causes of a bad rack can include prolonged exposure to high temperatures, heavy loads causing the rack to bend or warp, and normal wear and tear from frequent use.

Symptoms of a bad Rack include:

• Warping or bending of the rack, making it difficult to place items levelly
• Rust or corrosion, which can affect the cleanliness and safety of the cooking surface
• The rack not fitting properly within the oven, leading to instability or difficulty in sliding the rack in and out

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replace your electric range's mounting bracket if it's bent, cracked, or broken. This metal bracket secures internal components in place during operation.

Protective guard panel for electric range control areas. Replaces cracked, broken, or missing panels. Shields controls and internal components from damage.

Broiler pan for electric and gas ranges. Installs in oven cavity for broiling. Replace if cracked, warped, rusted, or heavily stained beyond cleaning.

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This is a flexible gray gasket that lines the perimeter of the oven door to create an airtight seal when the door is closed. It prevents heat from escaping the oven cavity, helping maintain consistent cooking temperatures. Replace this seal if you feel excessive heat radiating from around the oven door, notice uneven cooking, or see visible wear, cracks, or gaps in the existing gasket.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Oven displaying probe error or reading temperature when unplugged? This meat probe monitors internal food temperature. Easy DIY replacement part.

Replace a cracked, broken, or missing outer housing cover on your range. This trim piece protects internal components and restores the finished look.

Sound dampening insulation for electric ranges. Installs inside the range cabinet to reduce noise and provide thermal protection. Replace if worn or missing.

Insulation panel that installs inside your range oven door to maintain heat efficiency. Replace if cracked, compressed, deteriorated, or missing.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

If your oven won't heat or heats unevenly, this heating element restores proper temperature control. Straightforward DIY fix for most ranges.

This is a bake element that mounts inside the bottom of the oven cavity. It provides the primary heat source for baking and roasting. Replace this element if the oven is not heating, heating unevenly, or if the element shows visible damage such as blistering, cracking, or burn-through spots.

Heat shield for ranges and wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to prevent overheating.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

If your oven isn't heating evenly or the convection fan isn't working, this motor restores proper airflow. Moderate difficulty repair in 30-45 minutes.

This is a black filler panel designed to mount on the left side of the range. It covers the gap between the range and adjacent cabinetry for a finished, built-in appearance. Replace this panel if it is cracked, warped, discolored, or missing.

This console cover replaces a damaged or worn dispenser trim to restore a clean, finished look and protect internal dispenser components from spills and debris. It helps maintain dispenser function and appearance. What it does

• Covers and protects dispenser/console components from moisture, food, and everyday wear
• Restores a flush, finished appearance to the dispenser area
• Prevents debris from entering control openings and trim seams
• Can reduce rattles or movement caused by a broken or loose trim piece

• One console cover (trim) as pictured

• Disconnect power to the refrigerator before beginning any work
• Remove any screws or retainers holding the old cover; keep hardware if reusing is intended
• Align the replacement cover carefully and secure with original screws or clips

Fix loud rattling or grinding noise from your oven fan. This convection fan motor restores quiet operation and even heat distribution. DIY repair.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

The Thermostat is an OEM component specifically designed for Frigidaire gas stoves. This thermostat controls burner temperatures by regulating gas flow.

Causes of a bad thermostat include wear and tear over time, overheating, moisture damage, or power surges that can degrade electrical components.

Symptoms of a bad thermostat include:

• Inability to control burner temperatures accurately
• Burners heating to excessively high or low levels
• Fluctuating burner output unrelated to dial settings
• Complete failure of one or more burners to light

Replace it today with this OEM Frigidaire part to maintain safe and reliable stove operation. This thermostat replacement is also compatible with Gibson and Kelvinator gas ranges, as well as select Kenmore models.

If your oven's convection fan is making noise or not circulating air, this motor replacement part restores proper airflow for even cooking.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

This is a 2500-watt dual convection heating element used in electric ranges and ovens. It works with the convection fan to circulate heated air evenly throughout the oven cavity for more uniform cooking results. Replace this element if your oven is not heating properly in convection mode, heating unevenly, or if the element is visibly damaged, cracked, or burned out.

Secures internal components to your range cabinet. Replace this bracket if the original is broken, bent, or missing to restore proper alignment.

Range anti-tip bracket kit prevents tipping hazards. Install during range setup or if missing. Includes brackets and mounting screws. Verify fit.

Replace your range cooktop's trim frame if the paint is chipping, peeling, or worn. This decorative frame installs around the glass cooktop surface.

Structural frame component for electric and gas ranges. Replaces damaged, bent, or corroded frame that affects cabinet integrity or appliance stability.

Replacement water-line tube that routes water inside the refrigerator to the ice maker or dispenser, helping restore proper water flow and reduce leaks. Designed to match factory routing so the line fits and seals correctly at the connections. What it does:

• Carries water from the cabinet valve to the ice maker or dispenser.
• Restores normal dispenser flow and ice production when the tube is cracked, pinched, or clogged.
• Helps stop visible leaks or pooling caused by damaged or misrouted tubing.
• Matches factory bends for correct routing and clearance behind panels.

• Disconnect power and shut off the water supply before starting any work.
• Remove shelves or panels as needed for access; watch for sharp edges.
• Check and replace any worn clamps or fittings; tighten connections and test for leaks with water on before reassembling.

If your range control panel is unresponsive or the display won't light up, the control transformer may have failed. Supplies low-voltage power to controls.

Mounting screw for electric and gas ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Support plate for electric ranges. Mounts internally to provide structural support. Replace if cracked, broken, or damaged during service or repairs.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Wiring harness assembly for wall ovens. Routes power between internal components. Replace if damaged, frayed, or burnt to restore connections.

This is a metal mounting bracket used to secure an over-the-range microwave to the wall or cabinet during installation. It provides structural support and helps keep the microwave properly aligned and stable. Replace this bracket if it is bent, broken, or missing, which can cause the microwave to sit unevenly or become unsafe.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Illuminates your oven interior for visibility while cooking and cleaning. Replace when burned out to restore lighting. Verify fit with your model number.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
