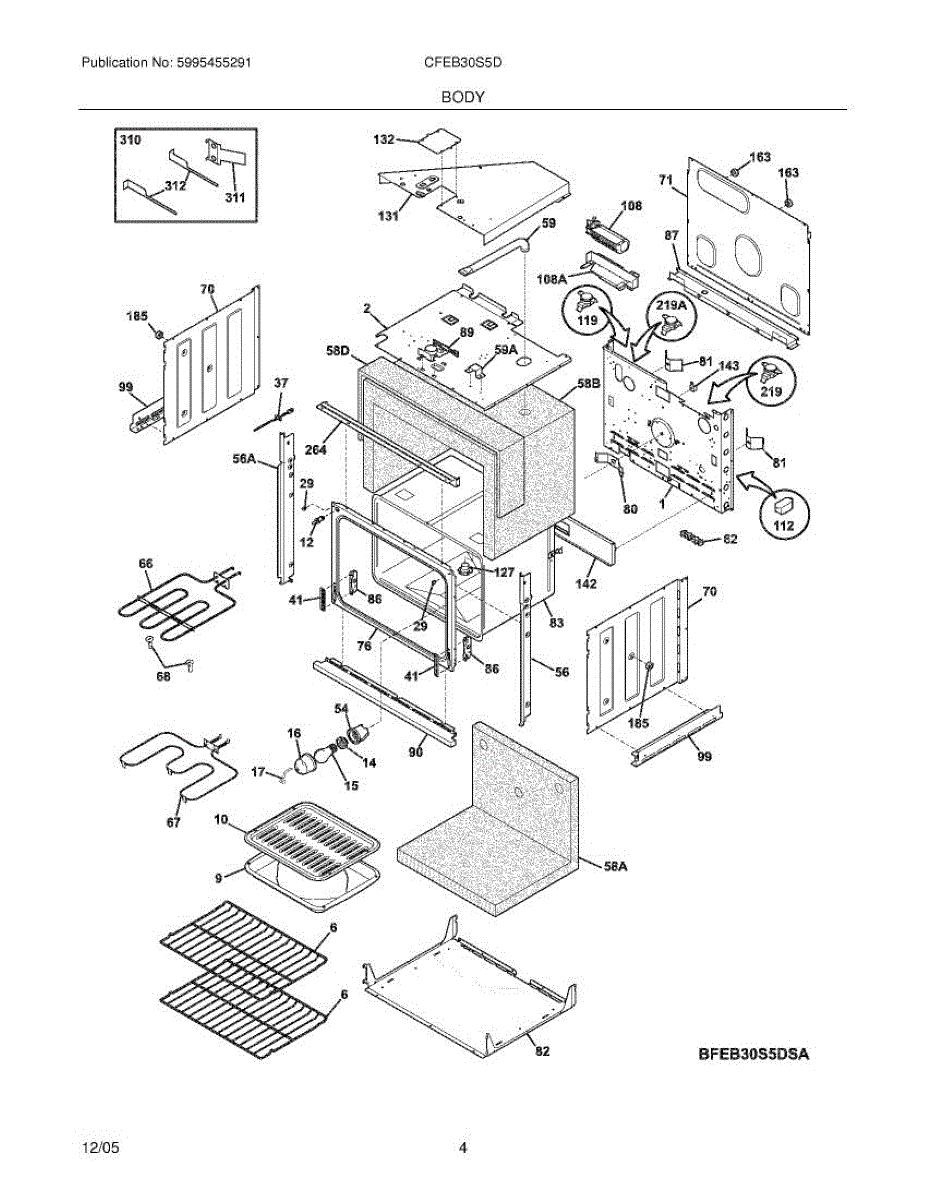

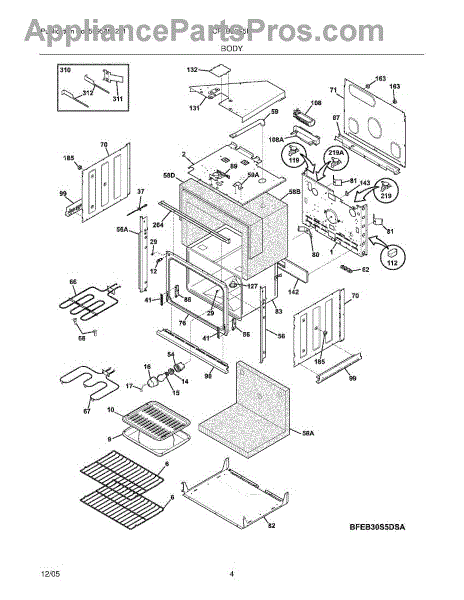

Parts for Frigidaire CFEB30S5DS2: 05 - Body Parts

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This rubber bumper cushions doors and panels to reduce noise, prevent metal-on-metal contact, and protect finishes for smoother, quieter operation. Replace worn or missing bumpers to help restore proper seating and reduce rattling. What it does:

• Absorbs shock between moving parts to prevent bangs and scratches
• Keeps doors and panels aligned for a tighter seal and quieter close
• Reduces vibration and rattling during operation
• Helps protect painted or plated surfaces from wear at contact points

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Typically a push-in or snap-in replacement; press into the original mounting hole until seated
• Inspect nearby bumpers and replace in matched sets if others are cracked or missing

The Oven Temperature Probe is an OEM part for Frigidaire ovens. This part monitors the oven's internal temperature, ensuring that it accurately reflects the set temperature on the oven's control. By measuring the heat inside the oven, the temperature probe helps in maintaining consistent cooking results, preventing undercooking or overcooking of food.

Over time, the oven temperature probe can fail or become inaccurate due to wear and tear, exposure to extreme temperatures, or damage from cleaning and handling. This can lead to uneven cooking results, with food being overcooked or undercooked, despite setting the oven to the correct temperature.

Symptoms of a bad Oven Temperature Probe include:

• Oven not reaching the set temperature
• Oven temperature fluctuating more than usual
• Food not cooking evenly or within expected time frames
• Error codes displayed on the oven indicating a temperature sensor issue

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM part for Frigidaire ovens and ranges. It is specifically designed to provide the high heat necessary for broiling food, such as meats and vegetables. Located at the top of the oven interior, the broil element radiates heat downwards, creating a high-temperature environment ideal for browning and caramelizing the exterior of dishes while locking in juices.

Over time, the broil element can burn out or become damaged due to high temperatures and frequent use.

Symptoms of a bad Broil Element include:

• Lack of heat when broiling
• Uneven cooking or browning of food
• Visible damage or breaks in the element
• No visible glow from the element during operation

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

The Element is an OEM part for Frigidaire ovens and ranges, designed to provide reliable and efficient heat for baking and broiling. This heating element converts electrical energy into heat, which is then distributed evenly throughout the oven cavity, ensuring that your food is cooked thoroughly and consistently.

Causes of a bad Element can stem from normal wear and tear, excessive use at high temperatures, or a sudden electrical surge that can damage the internal components of the element.

Symptoms of a bad Element include:

• Uneven or insufficient heating, leading to undercooked food
• The oven taking longer than usual to preheat
• Visible damage to the element, such as blistering, cracks, or breaks
• The element not glowing red when the oven is turned on, indicating it's not heating

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This mounting bracket secures appliance components in place to restore stable operation and alignment. It's a simple, durable replacement that helps prevent loose parts and rattling for safer, quieter performance. What it does:

• Provides structural support for internal components and assemblies
• Holds panels, modules or hardware in correct alignment to prevent movement
• Helps eliminate rattling, vibration noise, or loose-fitting parts
• Restores proper fit where a worn or broken bracket allowed misalignment

• Turn off power to the appliance and unplug before beginning work
• Remove only the panels or fasteners necessary to access the old bracket
• Reuse original fasteners or replace with equivalent-size hardware; tighten securely

Evaporator fan motor that circulates cold air over the evaporator coil to help maintain even refrigerator temperatures. Replacing a failing motor restores airflow, reduces warm spots and frost buildup, and cuts down on excessive fan noise. What it does:

• Spins the evaporator fan blade to move cold air through the evaporator and into the cabinet.
• Promotes even cooling to prevent warm zones and food spoilage.
• Stops or reduces abnormal noises caused by a worn or seized motor.
• Helps prevent frost accumulation linked to poor airflow.

• Disconnect power to the appliance before beginning any repair.
• Handle the motor and fan blade carefully; ensure the fan blade is seated properly on the shaft.
• Remove evaporator/fan housing panels and retain screws and clips for reassembly; verify wiring connectors match before reconnecting.

This thermal switch is a temperature-sensitive safety device used in many ranges and wall ovens. It opens or closes an electrical circuit at a set temperature to protect internal components and help maintain safe operation. What it does:

• Monitors temperature and opens/closes a circuit at a specified threshold
• Protects the appliance from overheat conditions
• Cuts power to heating circuits or controls a cooling/vent fan, depending on model
• Common symptoms of failure include: oven or certain functions won't run, unit shuts off mid-cycle, or operation returns only after cooling

• 1 thermal switch

• Disconnect power at the breaker before servicing
• Access location varies by model
• Move wires over one at a time to the new switch and secure it firmly to its mounting surface
• After replacement, verify proper airflow and cooling to prevent repeat overheating

This adapter assembly joins and aligns mating parts inside the appliance so they fit securely and operate as designed. Replace a cracked or missing adapter to restore proper fit and eliminate looseness or misalignment after service. What it does:

• Provides the correct spacing and alignment between connected components
• Helps secure parts to reduce vibration, rattling, or shifting
• Restores proper fitment after a component replacement or repair
• Replace if the original is cracked, warped, or missing mounting features

• One adapter assembly

• Disconnect power and allow the appliance to cool before servicing
• Note the original orientation and take photos to aid reassembly
• Transfer any reusable screws/clips from the old part if needed
• Test fit and alignment before fully tightening fasteners

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

Replaces the refrigerator temperature control thermostat to restore consistent cooling. This direct-replacement thermostat helps regulate compartment temperature so food stays at the set level and reduces temperature swings. What it does

• Senses compartment temperature and switches the cooling system on and off to maintain the selected temperature range.
• Helps prevent temperature fluctuations that can cause food to spoil or freeze unexpectedly.
• Commonly used when the refrigerator runs continuously, won't reach set temperature, or cycles erratically.
• Works with the existing control knob and wiring—intended as a like-for-like replacement.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Basic hand tools are typically required; take care not to damage the sensor bulb or capillary if present.

This replacement thermostat is a temperature-sensitive switch used in select cooking appliances. It opens or closes at a fixed setpoint to control or limit heat, helping protect components and restore dependable operation of the affected circuit. What it does:

• Senses temperature at its mounting point and opens/closes electrical contacts at a designed setpoint
• Controls power to a heating or related circuit (such as an element or fan) to maintain safe operation
• Helps prevent overheating and protects internal components
• Failure can cause no heat, heat that shuts off prematurely, or a related circuit that won't turn on/off

• 1 thermostat

• Disconnect power to the appliance before servicing
• Access location varies by model; refer to your service manual for exact placement
• Move wires one at a time from the old part to the new to maintain correct connections
• Reinstall in the same orientation; ensure firm mounting for proper temperature sensing and secure electrical connections

Note: Quantity is one tool (right side)

Left side tool is part # AP3778569

Right side tool part # AP3778556

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This wiring harness assembly routes power and signals between an appliance's control and its components to restore reliable electrical connections and operation. It replaces a damaged or corroded harness to help eliminate intermittent power or control issues. What it does

• Carries power and control signals between the appliance control board and internal components.
• Restores reliable electrical connections when wires are frayed, broken, or connectors are loose.
• Helps resolve intermittent operation, components not receiving power, or controls that don't respond.
• Prevents shorts caused by exposed wiring or damaged insulation.

• One pre-assembled wiring harness with factory-style connectors.

• Disconnect power (unplug appliance or shut off breaker) before starting work.
• Compare the new harness to the old one to confirm connector types and lengths before installation.
• Route and secure the harness away from moving parts and heat sources; use existing wire-retaining clips.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw
