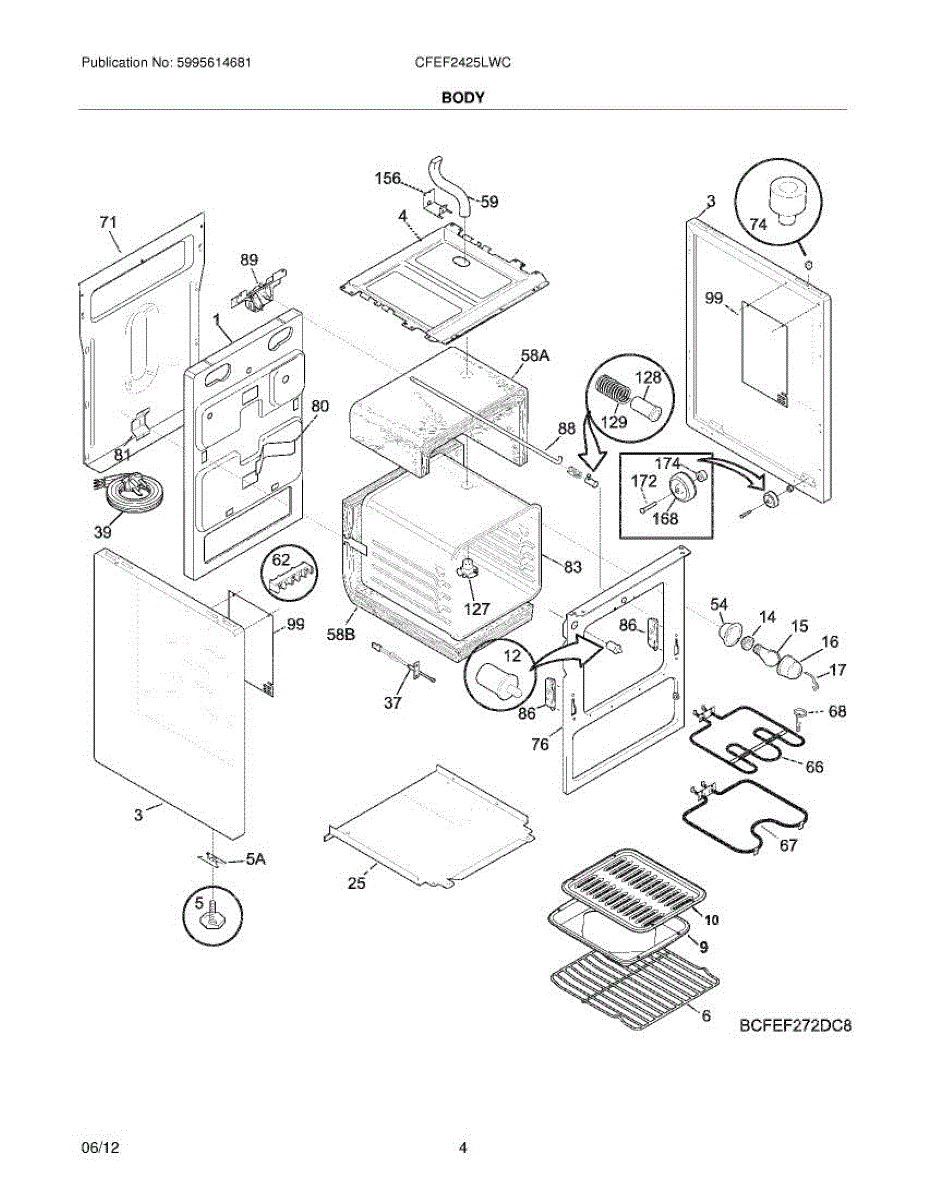

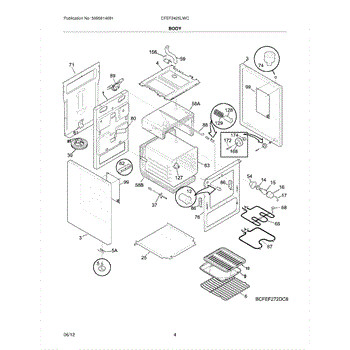

Parts for Frigidaire CFEF2425LWC: 05 - Body Parts

This burner box is the replacement inner oven box assembly that houses and protects the oven's burner components, helping maintain proper combustion and heat flow for reliable oven performance. What it does:

• Encloses and supports the oven burner and related components to keep them aligned and protected
• Directs combustion airflow and helps maintain even heat distribution in the oven cavity
• Prevents heat and flame from contacting adjacent cabinet parts and wiring
• Commonly replaced when you see ignition trouble, uneven baking or visible soot/sooting inside the oven

• Turn off power and gas to the appliance before beginning any service
• Inspect and replace any damaged gaskets, insulation or mounting hardware during installation
• Follow the oven manufacturer's service instructions; use proper tools and fasteners to ensure a gas-tight fit

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has three terminals.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Broiler not heating or turning red? This broil element restores high-heat broiling. DIY-friendly repair, typically takes 10-15 minutes with basic tools.

Oven won't heat or bake properly? A failed bake element is usually the cause. This bottom heating element restores even baking. Easy 15-minute DIY fix.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Rubber bumper that cushions the oven door when closed. Installs on the frame to prevent metal-on-metal contact. Replace if cracked, missing, or worn.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Replacement motor that restores mechanical drive or airflow in select Frigidaire appliances. Installs in place of the original motor to help return normal rotation, tumbling or fan operation. What it does:

• Drives rotating components (drum, tumbler, agitator or fan) depending on application.
• Helps restore normal spin, tumble or airflow when the original motor fails.
• Common symptoms: appliance won't start or spin, weak/uneven rotation, loud humming/grinding, or reduced airflow.
• Direct-fit replacement designed to match original mounting and electrical connections for specified models.

• Disconnect power (and water if applicable) before beginning any work.
• Avoid pulling on wires; reconnect all harnesses and secure mounting fasteners per OEM instructions.

Adapter assembly for oven vent system. Installs in back wall to align vent components. Replace if cracked, broken, or missing to restore proper fit.

Rubber or plastic bushing that cushions and supports the oven door. Replace if cracked, worn, missing, or causing door misalignment or rattling.

Replace your oven's broken or missing rack spring. This small metal spring helps support and stabilize oven racks during sliding and positioning.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
