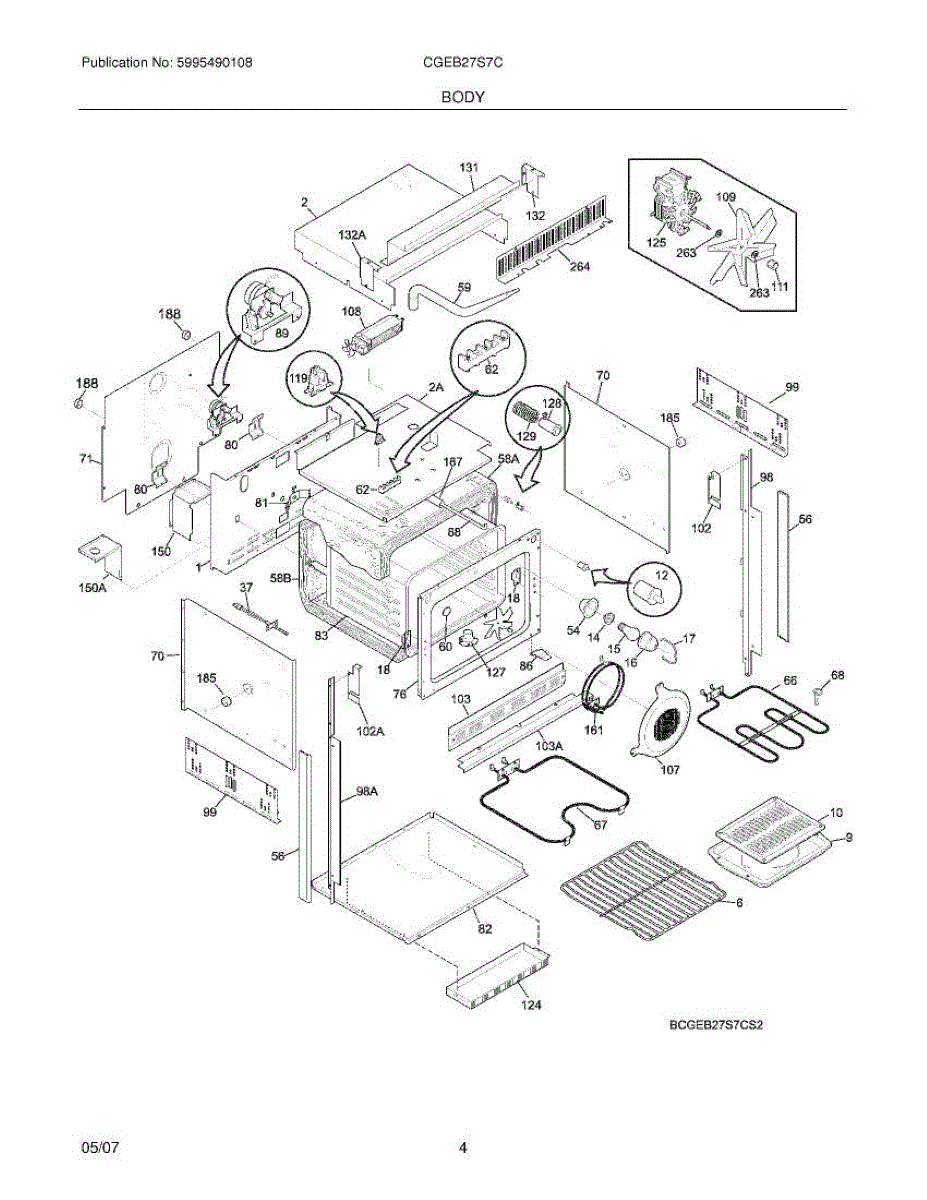

Parts for Frigidaire CGEB27S7CB2: 05 - Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has three terminals.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Oven door won't stay closed or lock during self-clean? This door latch secures your oven door and engages during cleaning cycles. Simple repair.

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electric heating element restores consistent, reliable heat in your appliance, so cooking or warming functions work as intended. Replace a failed element to eliminate slow heat-up, uneven temperatures, or no-heat conditions.

• Converts electrical power into heat for the appliance's designated cavity or surface
• Common failure symptoms: no heat, uneven heating, very slow preheat/warm-up
• Visual clues: breaks, blisters, or hot spots on the coil
• May cause the unit to cycle erratically or trip a breaker if shorted

• Disconnect power at the breaker or unplug before servicing; allow all components to cool
• Wear cut-resistant gloves; avoid bending or kinking the element
• Photograph wiring and transfer connectors one-for-one; ensure tight, clean terminal fits
• Inspect wires/terminals for heat damage and replace any compromised connectors

The Bake Element is an OEM replacement part for Frigidaire electric ranges. This component provides direct heat from an internal coil or rods within the oven cavity, allowing for baking and other heated cooking functions.

Symptoms of a bad bake element include:

• Inability to achieve or maintain proper cooking temperatures
• Discolored, burned, or undercooked foods
• Tripped circuit breakers or blown fuses after use

Causes stem from typical wear over years of heating use. Cracks in insulated surfaces or broken coil sections can cause inconsistencies.

This OEM Frigidaire part is also compatible with ranges sold under the Electrolux, Gibson, Kelvinator, and various Kenmore brand names.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

This is the electric drive motor and bracket assembly that controls the automatic door latch mechanism on a range or wall oven. It engages and releases the door lock during the self-clean cycle to keep the door securely closed at high temperatures. Replace this motor if the oven door fails to lock or unlock, the self-clean cycle won't start, or you receive a door lock error code.

Black base trim for under-counter oven installation. Replaces cracked, broken, or missing trim pieces. Provides finished look at cabinet base.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Oven won't heat or can't hold temperature? This thermal switch monitors oven temperature and protects internal components. Common fix for heat issues.

Convection fan not working or oven heating unevenly? This motor drives the rear fan to circulate hot air. Moderate difficulty, requires rear access.

Adapter assembly for oven vent system. Installs in back wall to align vent components. Replace if cracked, broken, or missing to restore proper fit.

Rubber or plastic bushing that cushions and supports the oven door. Replace if cracked, worn, missing, or causing door misalignment or rattling.

Replace your oven's broken or missing rack spring. This small metal spring helps support and stabilize oven racks during sliding and positioning.

This is a 2500-watt circular heating element located at the rear wall of the oven cavity, surrounding the convection fan. It provides even heat distribution during convection baking and roasting by working in conjunction with the fan. Replace this element if your oven is not heating properly in convection mode, food is cooking unevenly, or the element is visibly damaged or broken.

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

Spacer bumper for cooktops and ranges. Installs between components to provide proper clearance and prevent vibration. Replace if worn or missing.

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

Size: 3/4 inch od x 1/4 inch id.

Replaces the electrical junction box and pre-wired harness in your oven. Needed when the box is cracked, damaged, or wiring connections are worn or loose.

Replaces the electrical junction box and pre-wired harness in your oven. Needed when the box is cracked, damaged, or wiring connections are worn or loose.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.
