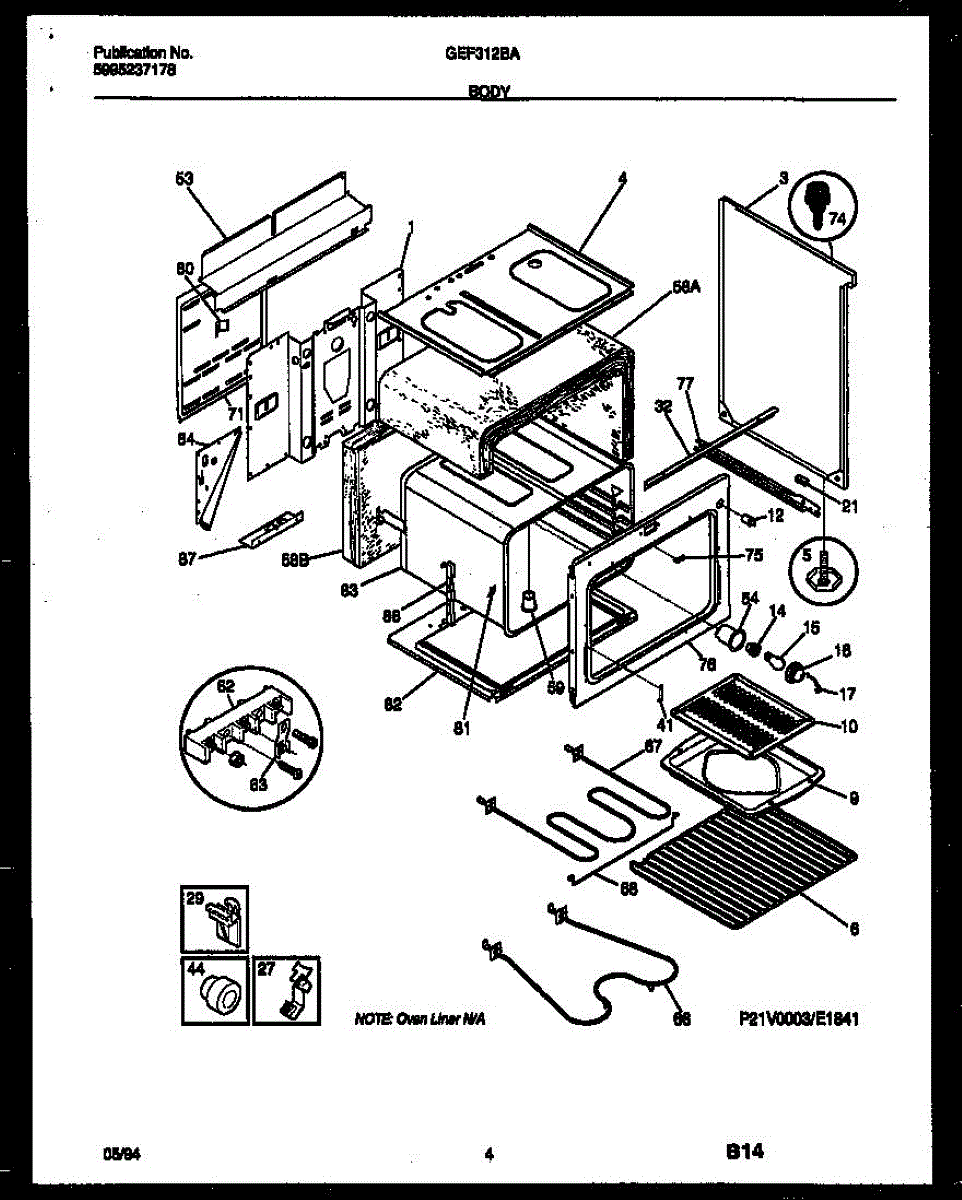

Parts for Frigidaire GEF312BADA: 03 - Body Parts

Sold individually.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has two terminals.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This part has been discontinued by the manufacturer and is no longer available.

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

This subtop support is a replacement bracket that holds the cooktop/subtop assembly securely in place, restoring proper alignment and preventing sagging or movement for a stable cooking surface. What it does:

• Secures the subtop/cooktop assembly to the range chassis to maintain correct fit and alignment
• Prevents cooktop sagging, shifting, or uneven gaps that can affect burner operation or surface stability
• Reduces rattling or vibration caused by a loose or worn support
• Helps maintain safe clearance and spacing for components under the cooktop

• Disconnect electrical power (and gas supply if applicable) before beginning service
• Handle edges carefully; use appropriate hand tools and follow OEM diagram for proper placement
• Keep track of fasteners and components removed; replace any damaged clips or screws

This oven back insulation replaces the thermal lining at the rear of the oven cavity to help maintain cooking temperature and protect surrounding components. Restores intended heat retention and reduces heat transfer to the cabinet. What it does:

• Provides thermal barrier behind the oven cavity to help keep heat in the cooking area
• Helps improve temperature stability and baking consistency when insulation is damaged or missing
• Reduces heat transfer to the oven rear panel and adjacent cabinetry
• Can lessen hot spots and reduce unusual exterior panel temperatures or increased energy use

• One oven back insulation panel

• Disconnect power to the appliance and allow the oven to cool completely before starting
• Remove the oven back panel or drop-down broiler drawer as required to access the insulation
• Wear gloves and eye protection; handle insulation gently and avoid compressing or tearing the material
• Only state this part ships; additional fasteners or clips may be required.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This broil element mounts at the top of the oven cavity and provides high, radiant heat for broiling and top-browning. Replace it if the broiler won't heat, heats unevenly, or the element shows visible damage.

• Delivers intense, top-down radiant heat for broiling and finishing dishes
• Restores broil performance when the original element is open, shorted, or weak
• Common symptoms: no broil heat, only part of the element glows, uneven browning, visible blisters/cracks, tripping the breaker
• Direct replacement designed to fit and connect to existing terminals

• Disconnect power at the breaker or unplug the range before servicing; high-voltage hazard
• Remove oven racks; take out element mounting screws and carefully pull the element forward to access terminals
• Transfer wires one at a time and support them to prevent retracting into the insulation; ensure tight, clean connections
• Reinstall screws, restore power, and test broil for an even, consistent glow

The bake element is an OEM replacement part for Frigidaire ovens. This element is located at the bottom of the oven cavity and is responsible for providing the heat needed for baking. When the oven is turned on, electrical current flows through the bake element, causing it to heat up and glow red. This process radiates heat evenly throughout the oven, ensuring that food is cooked thoroughly and uniformly.

Causes of a bad Oven Bake Element include visible damage such as blistering or holes, which can occur after years of use or from food spillages that corrode the metal. Additionally, a malfunctioning element may not glow red or may only partially heat, indicating that it's unable to conduct electricity effectively.

Symptoms of a bad Oven Bake Element include:

• The oven not heating up properly or at all
• Uneven cooking or baking results
• The element not glowing when the oven is turned on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This part has been discontinued by the manufacturer and is no longer available.
