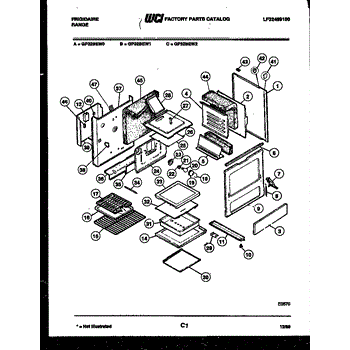

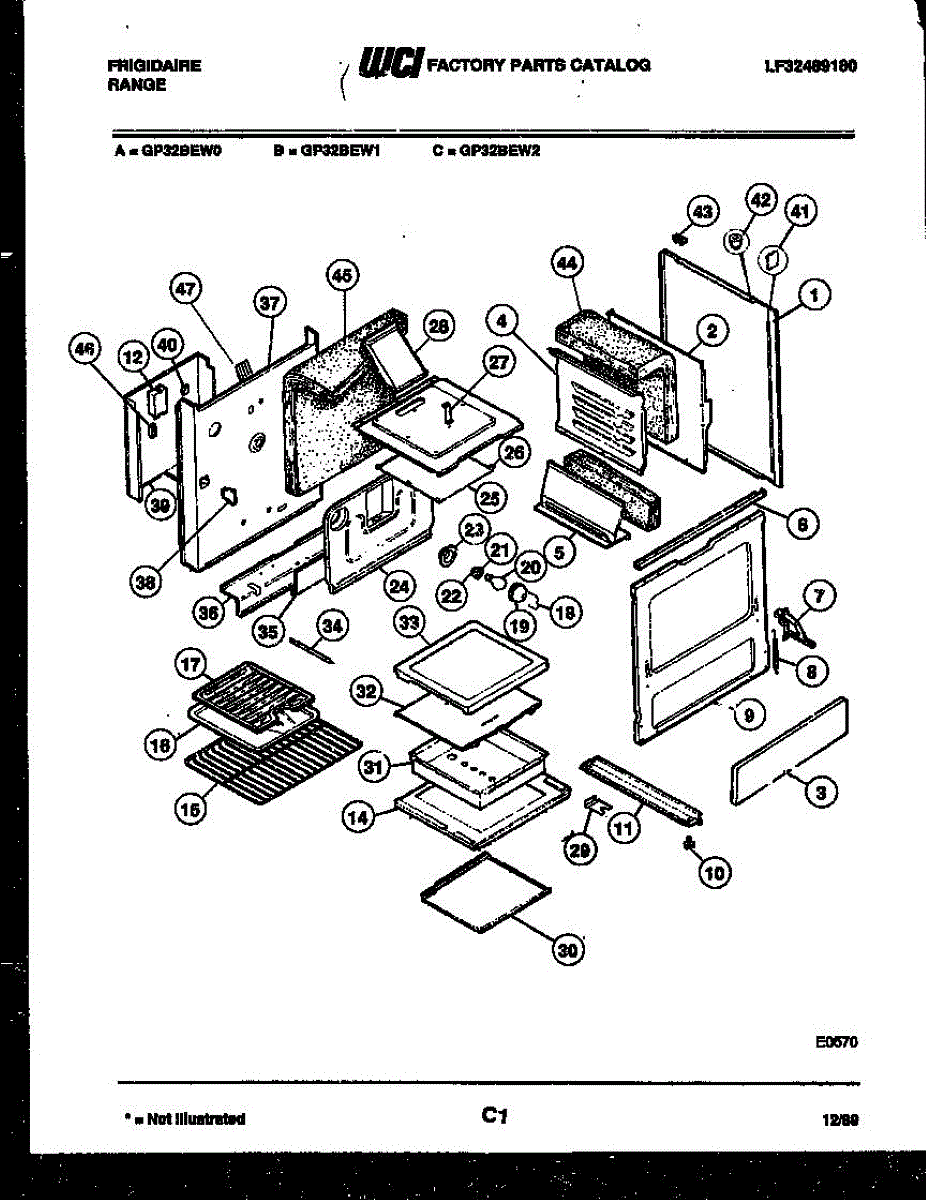

Parts for Frigidaire GP32BEW2: 07 - Body Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: For the right side use 318348800

The Hinge Assembly is an OEM part for Frigidaire ranges. This part allows the oven door to open and close smoothly while providing a secure attachment to the range body.

Causes of a bad Hinge Assembly can include wear and tear over time, physical damage from impact or mishandling, or failure of the internal mechanisms due to exposure to high temperatures or debris buildup.

Symptoms of a bad Hinge Assembly include:

• Difficulty opening or closing the oven door
• The door feeling loose or wobbly when opening or closing
• The door failing to stay in the open position
• Excessive noise or grinding sounds when operating the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

This part has been discontinued by the manufacturer and is no longer available.

This two-piece broiler pan and insert set creates a proper broiling surface in your range or wall oven. The vented top supports food while drippings collect below, helping reduce smoke and splatter for more consistent browning.

• Provides a slotted broiling surface that lets fats drain into the pan below
• Helps protect the oven cavity from spills and reduce smoke during broiling
• Replaces a missing, warped, rusted, or heavily stained broiler pan assembly
• If existing pan causes uneven browning, smoke, or odors, replacing it can restore broiling performance

• Allow the oven and racks to cool completely before handling
• Wash the new pan and insert before first use; dry thoroughly
• Set rack height per your owner's manual; seat insert on the pan and slide onto the rack
• Do not cover the insert with foil unless your manual permits; keep clear of the broil element

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
