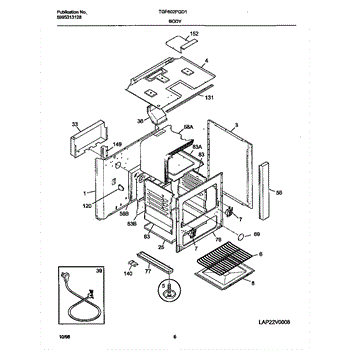

Parts for Frigidaire TGF602PGD1: 04 - Body Parts

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: For the right side use 318348800

The Hinge Assembly is an OEM part for Frigidaire ranges. This part allows the oven door to open and close smoothly while providing a secure attachment to the range body.

Causes of a bad Hinge Assembly can include wear and tear over time, physical damage from impact or mishandling, or failure of the internal mechanisms due to exposure to high temperatures or debris buildup.

Symptoms of a bad Hinge Assembly include:

• Difficulty opening or closing the oven door
• The door feeling loose or wobbly when opening or closing
• The door failing to stay in the open position
• Excessive noise or grinding sounds when operating the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This rear wall shield protects the appliance's interior back panel from heat, moisture and component contact, helping keep internal parts secure and preventing damage. It's a simple replacement that restores proper protection behind the cabinet. What it does:

• Acts as a barrier between internal components and the cabinet rear to prevent wear or heat damage
• Helps direct airflow and keeps wiring/components clear of the rear wall
• Reduces risk of debris or moisture reaching sensitive parts
• Can resolve symptoms like visible damage or gaps at the back panel and rattling from loose rear insulation

• One rear wall shield

• Disconnect power (and gas, if applicable) before starting any repair
• Handle carefully; edges may be sharp—use gloves and eye protection
• Remove outer panels as needed to access and align the shield, then secure with existing fasteners

This left-side oven liner replaces a damaged or corroded inner side panel to restore the oven cavity surface and help protect internal insulation. It provides a proper surface for racks and makes cleaning easier. What it does:

• Replaces a cracked, dented, rusted, or burned left inner oven panel
• Restores a sealed interior surface to help contain heat and cooking vapors
• Provides a proper bearing surface for rack stops and oven components
• Helps prevent heat damage to insulation and adjacent parts

• One left-side oven liner panel

• Disconnect electrical power (or gas supply where applicable) before starting
• Remove oven racks and follow OEM service manual for door and panel removal
• Use appropriate fasteners; verify alignment and seal before testing
• If you see corrosion beyond the liner (insulation or wiring), inspect further.

This is the right-side oven liner — the interior wall panel that restores the oven cavity surface and supports proper fit of oven racks and components for safe, even cooking. Replaces damaged or corroded right inner wall panels. What it does:

• Restores a smooth, sealed interior wall where cracks, rust, or warping have appeared
• Helps keep heating consistent by maintaining the oven cavity enclosure
• Provides the mounting surface for rack guides and internal components
• Makes the oven easier to clean by replacing a damaged or stained panel
• Prevents further damage from heat exposure to underlying structure

• One right-side oven liner

• Disconnect power (and gas supply if applicable) before starting any repair
• Remove oven door and racks for safe access; installation may require removing the range top or inner components
• Handle carefully to avoid scratching finished surfaces; fasten with manufacturer-specified screws
• If you encounter damaged insulation, wiring, or mounting hardware, stop.

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

This rivet is a small, durable fastener used to secure panels and trim on household appliances. It restores a tight, stable fit where a worn or broken rivet has allowed parts to loosen or rattle. What it does

• Fastens appliance panels, trim, or brackets where a permanent or semi-permanent hold is required
• Prevents panel movement, vibration noise, and misalignment caused by a missing or damaged rivet
• Common replacement when the original rivet is sheared, corroded, or deformed
• Matches OEM fit and function for a secure repair in the intended location

• Intended for use with the specific rivet hole size and material
• Installation typically requires a rivet tool or appropriate driving punch and should be done with care to avoid panel damage
• Disconnect power and follow appliance safety procedures before working on the unit
• If replacing multiple fasteners or damaged surrounding material, inspect adjacent parts and replace as needed
