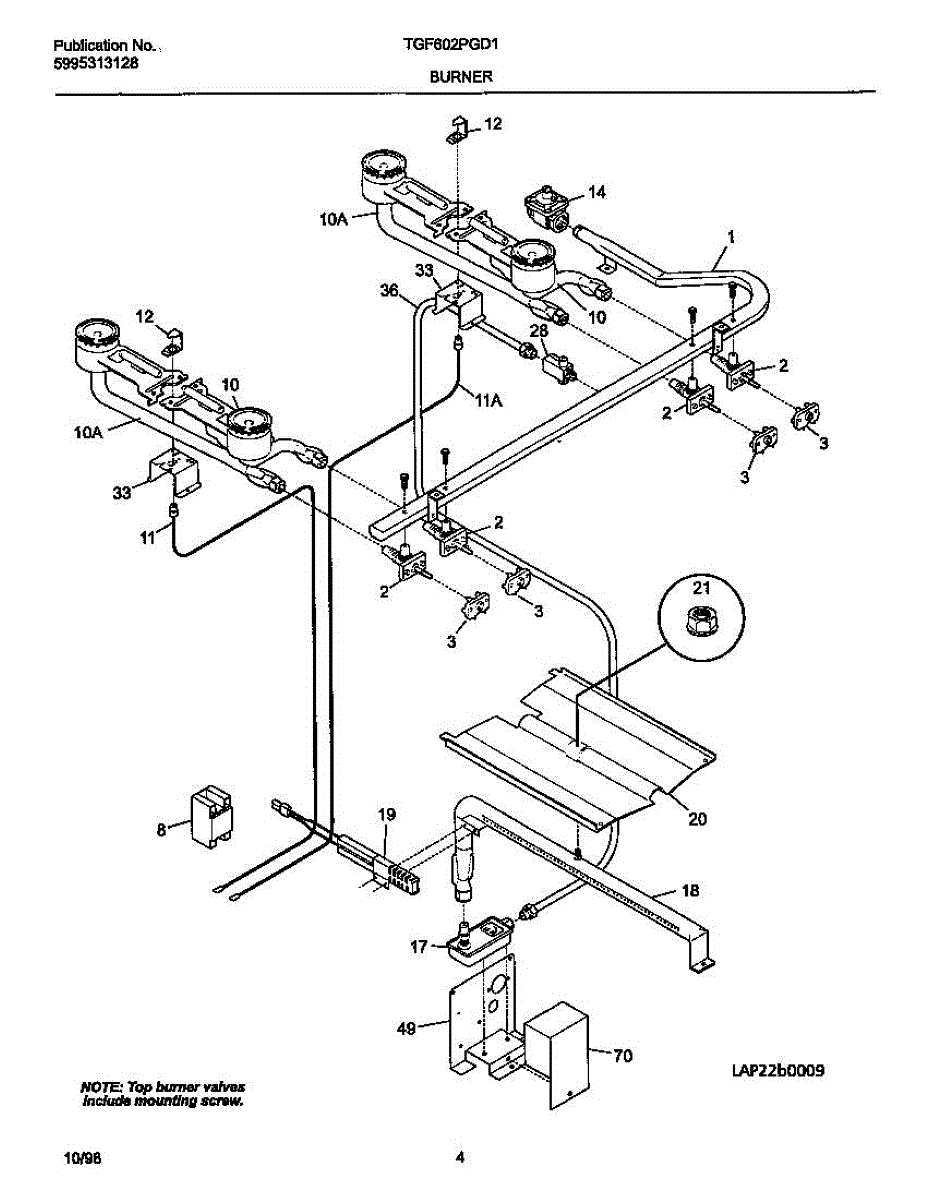

Parts for Frigidaire TGF602PGD1: 03 - Burner Parts

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

Controls gas flow to range burners. Replace if regulator is worn, leaking, or damaged to restore proper gas delivery and maintain safe operation.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Fix a burner that won't light, won't adjust, or stays on with this range top burner valve. Controls gas flow to surface burners. Moderate DIY repair.

Support bracket for ranges. Installs internally to secure components in place. Replace if bent, broken, or missing to restore proper structural support.

Replace your cracked or broken range valve cover. This protective housing installs over the gas valve assembly to shield internal components from damage.

Valve mounting screw for cooktop gas valves. Replace if screw is stripped, corroded, or missing during valve service or burner assembly repairs.

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

This snap bushing is a push-in grommet that secures and protects wiring where it passes through sheet metal openings, helping prevent wire chafing and wear. It's a simple replacement that restores proper wire routing and protection. What it does:

• Holds wiring or harnesses in place at panel openings to prevent rubbing and abrasion
• Cushions wires against sharp edges to reduce the risk of wire damage and shorts
• Maintains correct wire routing to prevent pinching when panels are reassembled
• Common symptom: visible chafed insulation or loose wiring at an opening

• One snap bushing (quantity: 1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Access the panel or opening where the wiring passes through; remove any retaining screws or clips as needed
• Press the bushing into the hole until it snaps fully into place, then route the wire through the center
• Inspect surrounding wire insulation and replace or repair any damaged wiring before reassembly

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This rivet is a small, durable fastener used to secure panels and trim on household appliances. It restores a tight, stable fit where a worn or broken rivet has allowed parts to loosen or rattle. What it does

• Fastens appliance panels, trim, or brackets where a permanent or semi-permanent hold is required
• Prevents panel movement, vibration noise, and misalignment caused by a missing or damaged rivet
• Common replacement when the original rivet is sheared, corroded, or deformed
• Matches OEM fit and function for a secure repair in the intended location

• Intended for use with the specific rivet hole size and material
• Installation typically requires a rivet tool or appropriate driving punch and should be done with care to avoid panel damage
• Disconnect power and follow appliance safety procedures before working on the unit
• If replacing multiple fasteners or damaged surrounding material, inspect adjacent parts and replace as needed

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

Left body side shield for ranges. Protects the side panel of your range from heat and damage. Replace if cracked, bent, or missing to restore protection.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

This snap bushing is a push-in grommet that secures and protects wiring where it passes through sheet metal openings, helping prevent wire chafing and wear. It's a simple replacement that restores proper wire routing and protection. What it does:

• Holds wiring or harnesses in place at panel openings to prevent rubbing and abrasion
• Cushions wires against sharp edges to reduce the risk of wire damage and shorts
• Maintains correct wire routing to prevent pinching when panels are reassembled
• Common symptom: visible chafed insulation or loose wiring at an opening

• One snap bushing (quantity: 1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Access the panel or opening where the wiring passes through; remove any retaining screws or clips as needed
• Press the bushing into the hole until it snaps fully into place, then route the wire through the center
• Inspect surrounding wire insulation and replace or repair any damaged wiring before reassembly

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Valve mounting screw for cooktop gas valves. Replace if screw is stripped, corroded, or missing during valve service or burner assembly repairs.

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

Secures panels and components in your range or oven. Replace if broken, bent, or missing to prevent shifting and reduce vibration noise. Confirm fit.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.
