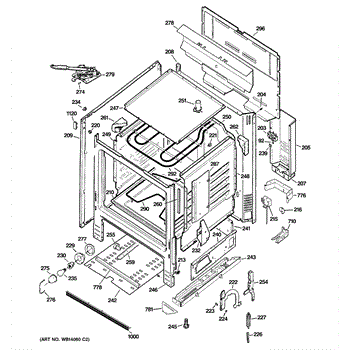

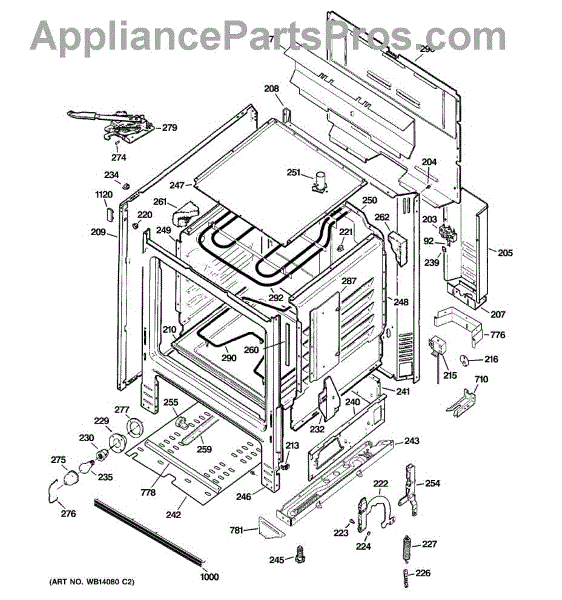

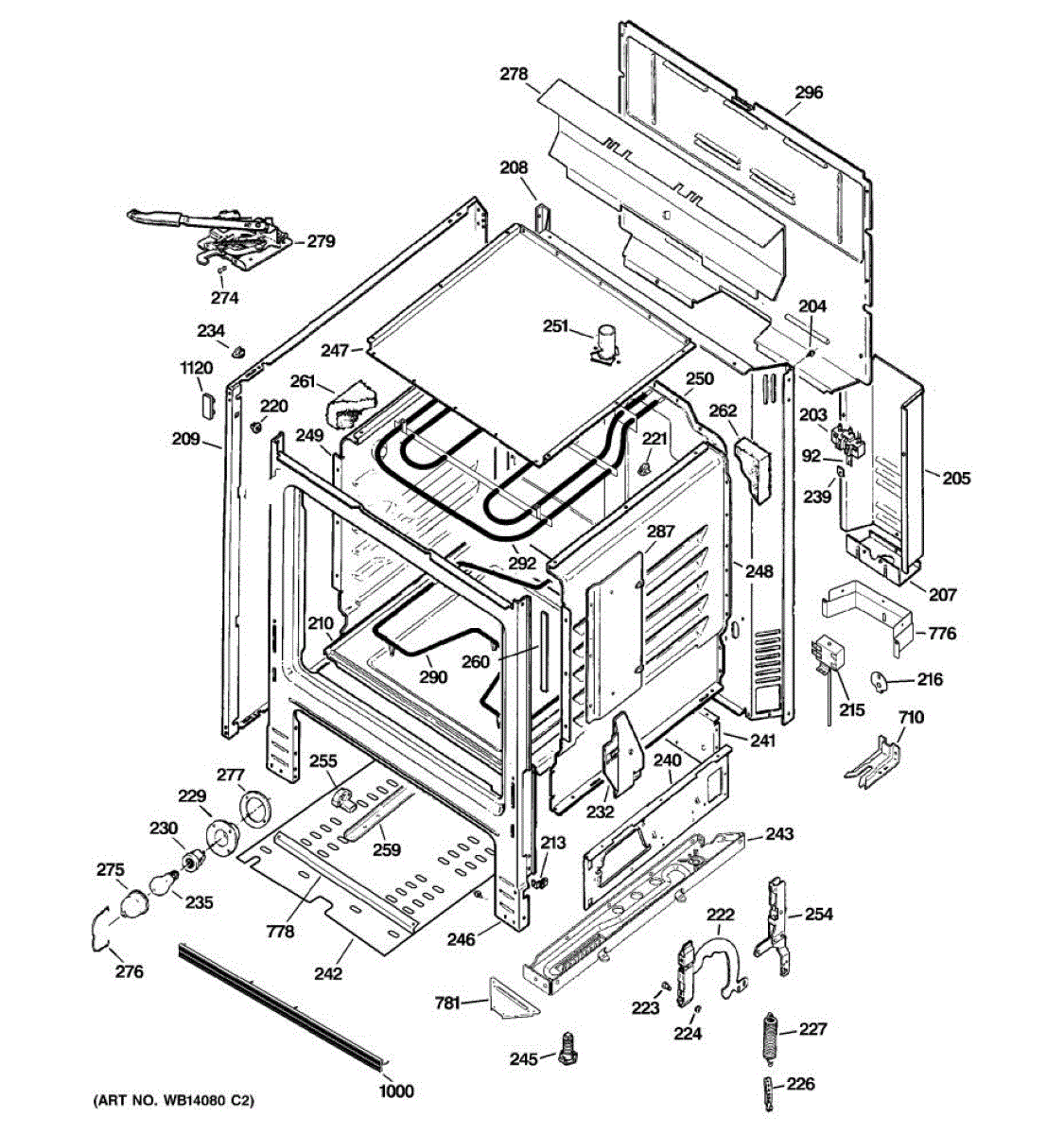

Parts for Ge JBP15DM1CC: 02 - Body Parts

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Secures the terminal block to your range cabinet. Replace this bracket if damaged, cracked, or missing to properly support the electrical connection assembly.

USE GEH WB63K10122

Replaces the bottom panel inside your electric range oven cavity. Order a new bottom when the original is cracked, rusted, warped, or damaged.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Fiberglass insulation pad for electric ranges. Installs behind control panels or oven cavity. Replace if cracked, compressed, or missing heat protection.

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

This bulb housing assembly holds and protects the light bulb inside your oven or range hood while providing electrical connections. It secures the bulb in the correct position and shields it from heat, grease, and food splatter during cooking. Replace this housing if the interior light doesn't work, bulbs burn out frequently, or the housing is cracked or damaged.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

Right-side guide support secures sliding drawer or shelf rails on your range. Replace if cracked, broken, or worn to restore smooth tracking and alignment.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Left hand side

Right hand side

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Replacement drawer support bracket for your range's storage or broiler drawer. Installs on the drawer rail to prevent sagging, crooked alignment, or binding.

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Seals your range oven door to maintain temperature and prevent heat loss. Replace when worn, torn, or no longer sealing properly. Confirm fit with your model.

Insulation wrap installs around the oven cavity to reduce heat transfer and dampen sound. Replace if torn, compressed, missing, or no longer effective.

Insulation panel that installs on the back of the oven cavity to provide heat protection. Replace if torn, degraded, or missing to restore proper insulation.

The range latch screw is a small fastener used to secure the door latch mechanism or latch strike plate firmly to the range frame. It keeps the latch components from shifting or loosening over time with repeated use. Replace this screw when the original is stripped, missing, or corroded, causing the latch assembly to feel loose or the oven door to not close securely.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Oven door won't lock during self-clean or stays locked after? This door latch assembly restores proper door engagement and safety interlock function.

Right hand side

Left hand side

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Oven not heating or broiling unevenly? This broil element restores proper top heating in your electric range. Common fix for uneven browning.

Safety bracket that anchors your range to the floor or wall, preventing tip-over. Replace if missing, damaged, or cracked to secure the appliance.

Protective cover that shields terminal block connections on your electric range. Replace if cracked, broken, or missing to restore factory safety cover.

This rubber bumper cushions and protects appliance components from impact, vibration and rubbing, helping reduce noise and wear. It restores proper spacing where a worn or missing pad lets parts contact or vibrate. What it does:

• Acts as a soft stop to prevent panels, doors or components from striking each other
• Dampens vibration and reduces rattling or buzzing during operation
• Keeps moving parts aligned by maintaining proper clearance
• Helps prevent cosmetic damage from rubbing or repeated contact

• Locate the damaged or missing bumper and remove any debris before installing
• Press or seat the bumper into the mating hole or surface until fully engaged
• Use common hand tools if needed; avoid sharp tools that can tear the bumper
• Disconnect power or follow appliance-specific safety steps before working near electrical components

Rubber bumper cushions contact points on range doors and panels. Replace if cracked, missing, or worn to restore quiet operation and protect surfaces.

Replacement door bumper for electric and gas ranges. Prevents door from slamming and protects cabinet finish. Replace if worn, cracked, or missing.
