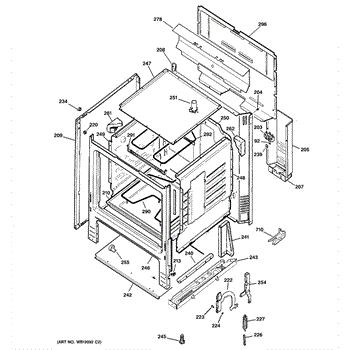

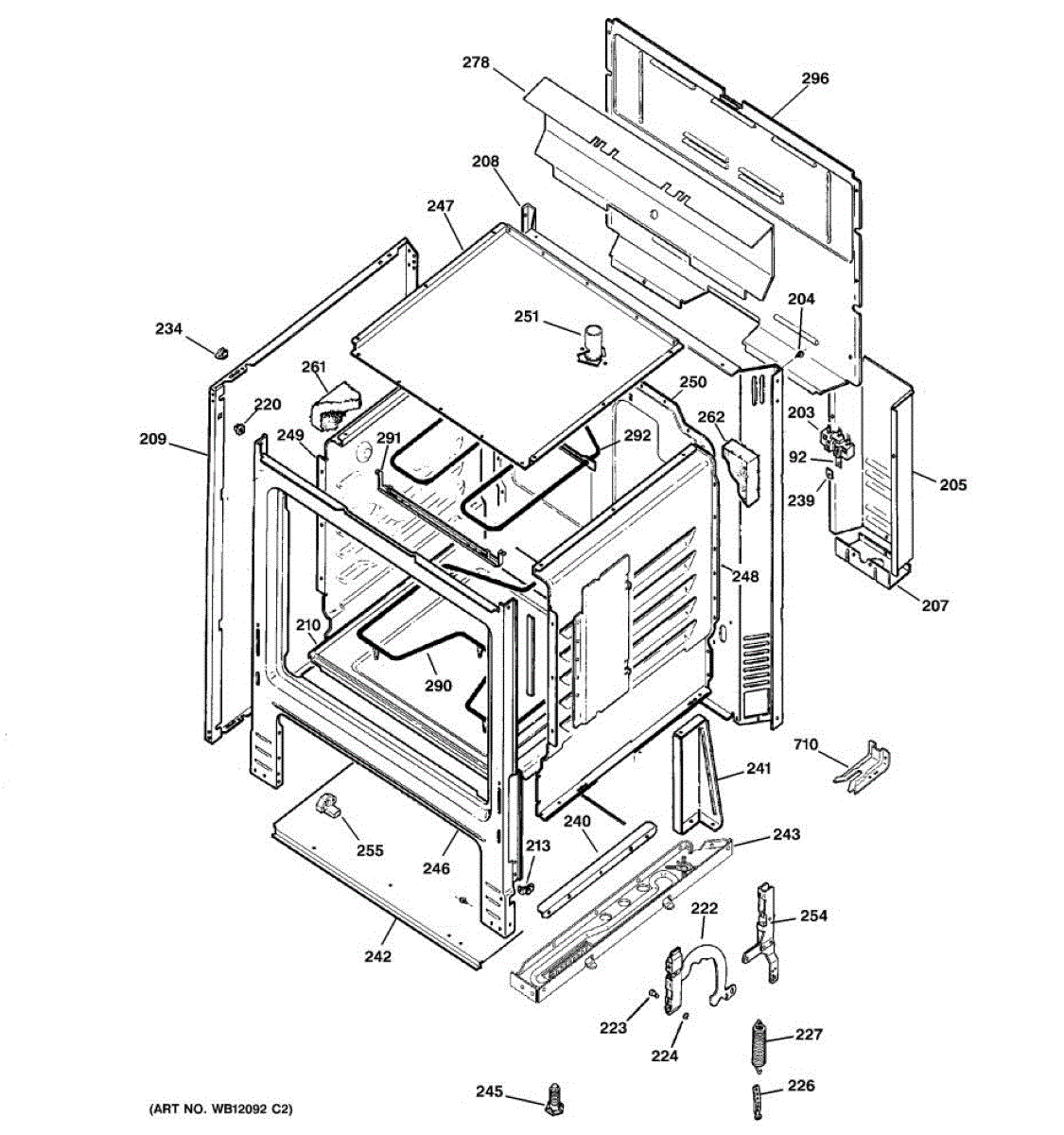

Parts for Ge JBS03C2CT: 02 - Body Parts

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is ess

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Protects wire connection points on your range. Shields exposed terminals from accidental contact and shorting. Replace if cracked, broken, or missing.

Secures the terminal block to your range cabinet. Replace this bracket if damaged, cracked, or missing to properly support the electrical connection assembly.

Replaces the bottom panel inside your electric range oven cavity. Order a new bottom when the original is cracked, rusted, warped, or damaged.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

Replacement door spring for electric ranges. Installs inside the door hinge to provide tension and counterbalance. Needed when original is stretched or broken.

Right-side guide support secures sliding drawer or shelf rails on your range. Replace if cracked, broken, or worn to restore smooth tracking and alignment.

10 - 32 Nickel plated

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Hex

Protects insulation at the bottom of your range. Replace this guard if it's cracked, broken, or missing to maintain proper heat insulation and safety.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Replaces the worn, cracked, or dented top surface panel on your electric range. Restores a clean cooking area and improves overall appearance.

Replacement vent tube for electric ranges. Routes exhaust air from cooktop to ventilation system. Needed when original tube is cracked, damaged, or missing.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Left hand side

Right hand side

Structural support bracket that mounts inside the range storage drawer cavity. Replaces broken, cracked, or worn supports that fail from heavy items.

Insulation wrap installs around the oven cavity to maintain heat and protect cabinetry. Replace if damaged, contaminated by pests, or missing sections.

Wiring divider housing that organizes and protects electrical connections inside your range. Replace if cracked, broken, or missing to restore proper coverage.

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Secures the upper broil element to the oven cavity top. Replace if your original bracket is cracked, broken, or missing to restore stable mounting.

Broil element not heating or burned out? This upper oven heating element restores broiling function. Easy DIY repair—remove 4 screws and reconnect wires.

Replace your range's back cover panel if it's cracked, dented, or missing. This protective panel installs on the rear of your electric range cabinet.

Safety bracket that anchors your range to the floor or wall, preventing tip-over. Replace if missing, damaged, or cracked to secure the appliance.
