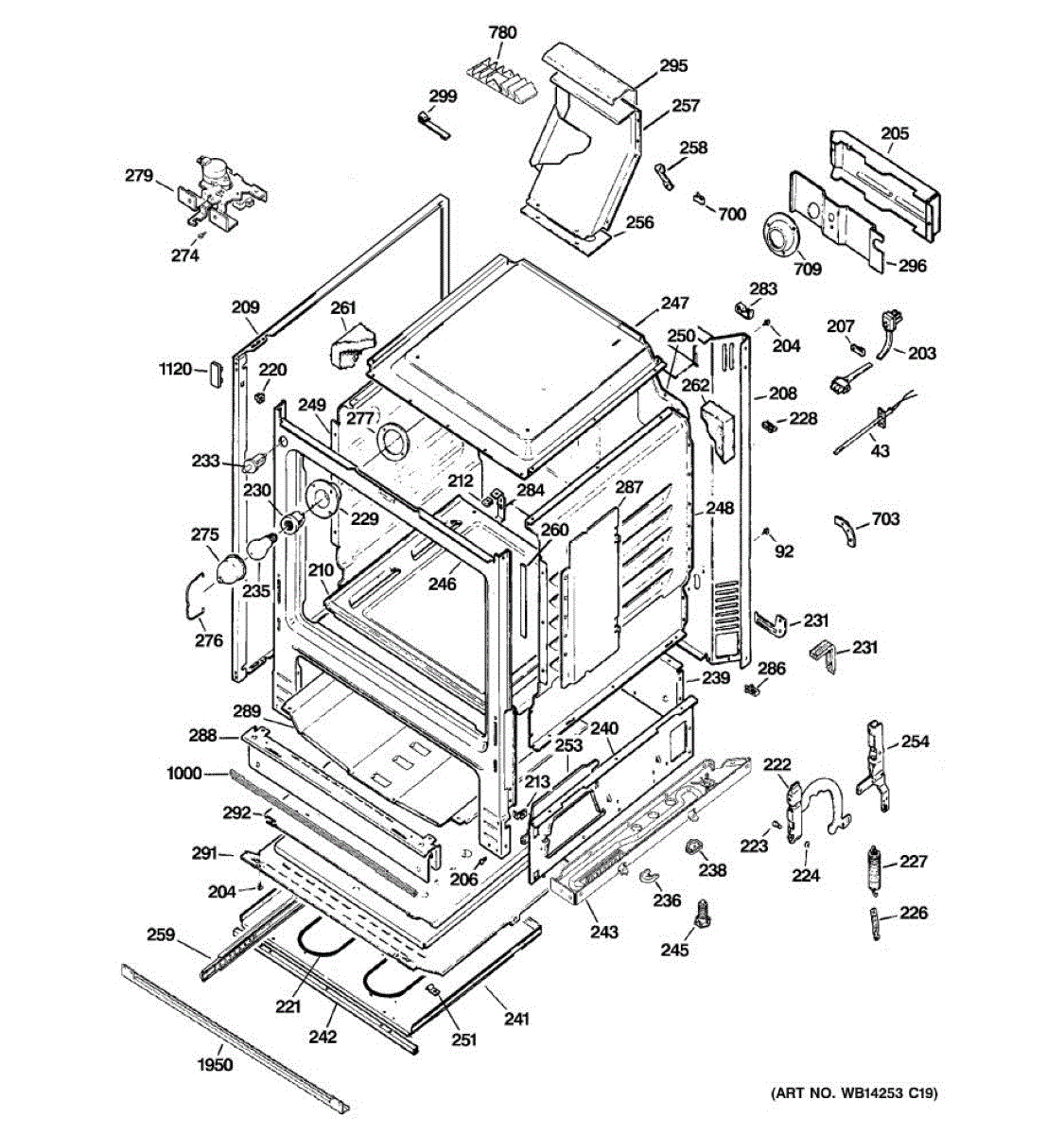

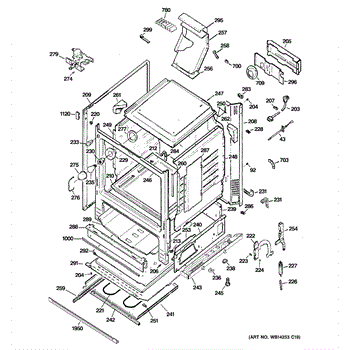

Parts for Ge JGB800DEP1BB: 03 - Body Parts

Fix an oven that won't reach temperature or runs too hot/cold. This temperature sensor monitors oven heat accurately. Easy 15-minute DIY repair.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement power cord for gas ranges. Connects your unit to the wall outlet. Replace if cord is worn, cut, heat-damaged, or causing burning smells.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Back lamp housing cover for gas ranges. Protects the back lamp assembly from damage. Replace if cracked, broken, or missing to restore proper coverage.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Side panel for gas ranges. Covers and protects the exterior side of your range. Order a replacement if your panel is cracked, damaged, or discolored.

Replaces cracked, rusted, or corroded oven bottom pan and heat deflector. Installs in the base of your range oven cavity. Simple 2-screw removal.

Speed nut clip secures your range oven bottom panel. Replace when missing or damaged to prevent panel rattling. Verify fit with your model number.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Oven not heating on bake? This bake element heats the bottom of your oven cavity for even cooking. Fixes broken or visibly damaged heating elements.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

This replacement back cover restores the appliance's rear enclosure to protect internal components and help maintain proper airflow. It replaces a cracked, dented or missing rear panel so the unit operates safely and cleanly. What it does

• Protects internal wiring, controls and components from dust, moisture and accidental contact
• Keeps airflow channels intact to support proper cooling and performance
• Stops rattling or vibration caused by a loose or damaged rear panel
• Helps maintain a finished appearance at the appliance's rear

• Disconnect power before starting any repair to avoid shock or injury
• Requires basic hand tools; remove mounting screws and any obstructing panels to fit the new cover
• Handle edges carefully and align screw holes before tightening to avoid stripping

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Replace your range's spacer base if it's cracked, broken, or missing. This structural component helps maintain proper spacing and alignment between parts.

This spacer base is a small mounting component that positions and supports adjacent range/oven parts, helping maintain proper alignment and eliminate movement. It's a simple replacement to restore secure fit and stable assembly. What it does:

• Provides a stable mounting point to keep panels or components correctly spaced and aligned
• Prevents rubbing, vibration, or shifting that can cause noise or uneven gaps
• Restores factory clearance where a worn or damaged spacer allowed parts to sit improperly
• Works as a passive support piece—no electrical function

• One spacer base

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing exterior panels or components; keep fasteners organized
• Inspect mating surfaces for damage or debris and replace any additionally damaged hardware

Left hand side

Right hand side

Range bottom panel that forms the base of the cabinet frame. Replaces damaged, rusted, or missing bottom panels to restore structural integrity.

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Replace your gas range's oven top panel if cracked, damaged, or worn. This structural component covers the oven cavity and supports cooktop burners.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

Secures the heating element in your range. Replace if loose, damaged, or causing element misalignment. Confirm fit with your model number for proper installation.

Replace your range's access spring cover if it's cracked, broken, or missing. This protective housing installs over the spring mechanism for a complete look.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Right-hand slide assembly for range warming drawers. Replaces cracked, broken, or worn drawer glides that prevent smooth drawer operation.

Left-hand drawer slide assembly for electric and gas ranges. Replaces cracked, broken, or worn slides that cause drawers to stick or misalign.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation panel that installs on the back of your range oven cavity. Replace if the original is damaged, deteriorated, or missing to restore proper heat retention and sound dampening.

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Oven door won't lock during self-clean cycle? This latch assembly includes motor and switches. Requires lifting cooktop for access. 1-2 hour repair.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Right hand side

Left hand side

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Bottom guard for gas ranges. Installs at the base to protect internal components. Replace if cracked, damaged, or missing to maintain appliance integrity.

Bottom inner guard for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper coverage.

Insulation that fits around range vent openings to reduce noise and prevent heat loss. Replace if damaged, deteriorated, or missing for proper insulation.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.

Diffuser vent trim for gas ranges. Installs on the cooktop surface to cover the vent opening. Replace if cracked, discolored, or missing.

Seals the burner assembly to the cooktop on gas ranges. Replace when worn to restore proper ignition, stable flame, and prevent spills from entering the burner well. Confirm fit by model number.

This rubber bumper cushions and protects appliance components from impact, vibration and rubbing, helping reduce noise and wear. It restores proper spacing where a worn or missing pad lets parts contact or vibrate. What it does:

• Acts as a soft stop to prevent panels, doors or components from striking each other
• Dampens vibration and reduces rattling or buzzing during operation
• Keeps moving parts aligned by maintaining proper clearance
• Helps prevent cosmetic damage from rubbing or repeated contact

• Locate the damaged or missing bumper and remove any debris before installing
• Press or seat the bumper into the mating hole or surface until fully engaged
• Use common hand tools if needed; avoid sharp tools that can tear the bumper
• Disconnect power or follow appliance-specific safety steps before working near electrical components

Rubber bumper cushions contact points on range doors and panels. Replace if cracked, missing, or worn to restore quiet operation and protect surfaces.

Replacement door bumper for electric and gas ranges. Prevents door from slamming and protects cabinet finish. Replace if worn, cracked, or missing.

Front bottom trim piece for electric and gas ranges. Replaces cracked, broken, or missing trim along the bottom edge of your range front panel.
